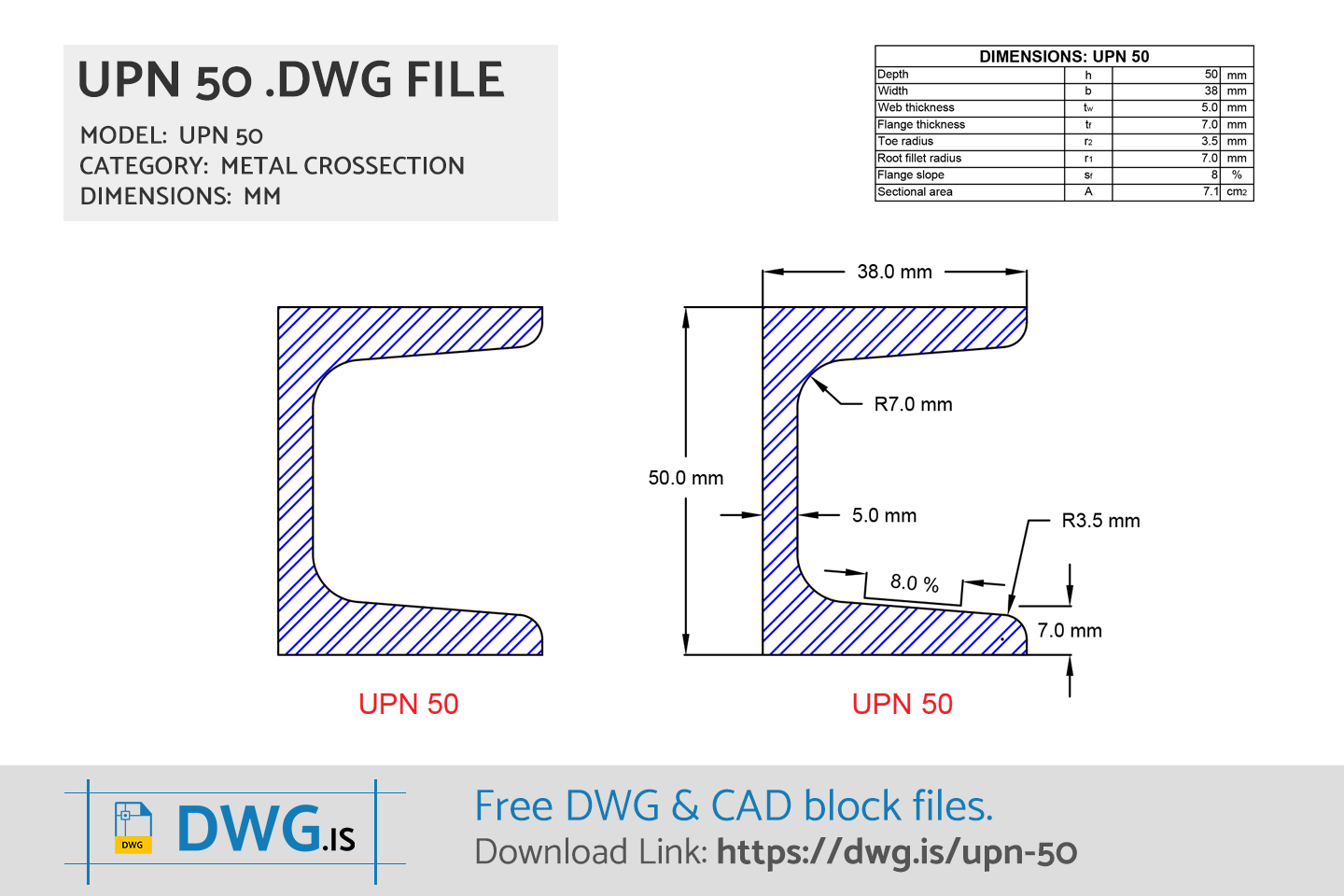

UPN 50 Free CAD Block
This UPN 50 Tapered Flange Channel Cross-section Free DWG File is a great way to add this dwg component design to your project. The channel section measures 50 mm in depth, 38 mm in width, 5 mm in web thickness, 7 mm in flange thickness, 7 mm in root fillet radius, 3.5 mm in toe radius and 19 mm in distance. Additionally, the cross-section of this channel provides a total sectional area of 7.1 cm2.

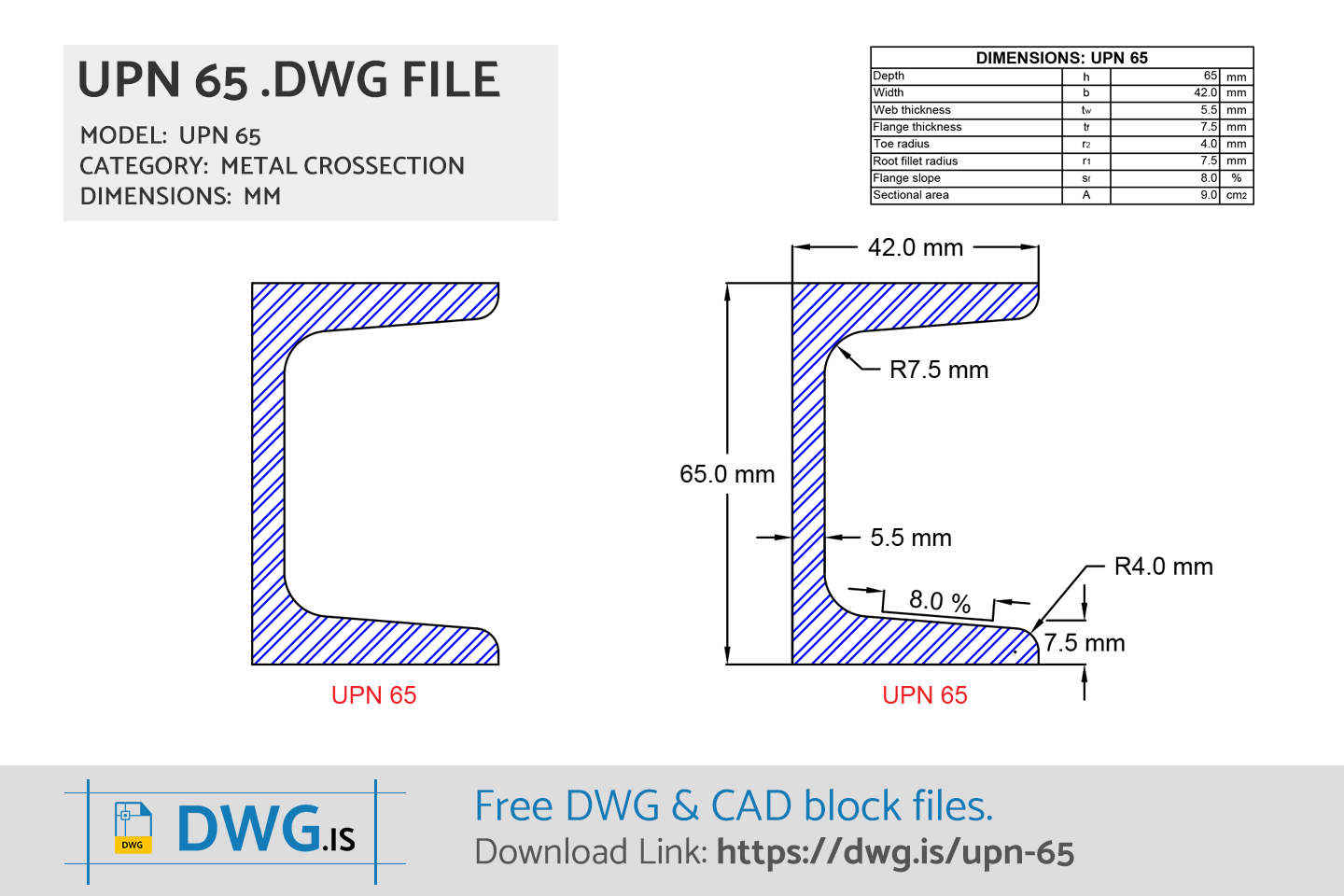

UPN 65 Free CAD Block
This UPN 65 Tapered Flange Channel Cross-section is an AutoCAD DWG file that is ready to be used in a variety of projects. It has a depth of 65 mm, a width of 42 mm, a web thickness of 5.5 mm, a flange thickness of 7.5 mm and a root fillet radius of 7.5 mm. The toe radius is 4 mm and the distance between the flanges is 21 mm. It has a sectional area of 9 cm2
UPN 80 Free CAD Block
This UPN 80 Tapered Flange Channel Cross-section Free DWG File is a detailed drawing of a cross section of a flange channel which has a depth of 80 mm, width of 45 mm, web thickness of 6 mm, flange thickness of 8 mm, root fillet radius of 8 mm, toe radius of 4 mm and a distance of 22.5 mm. The sectional area is 11 cm2.

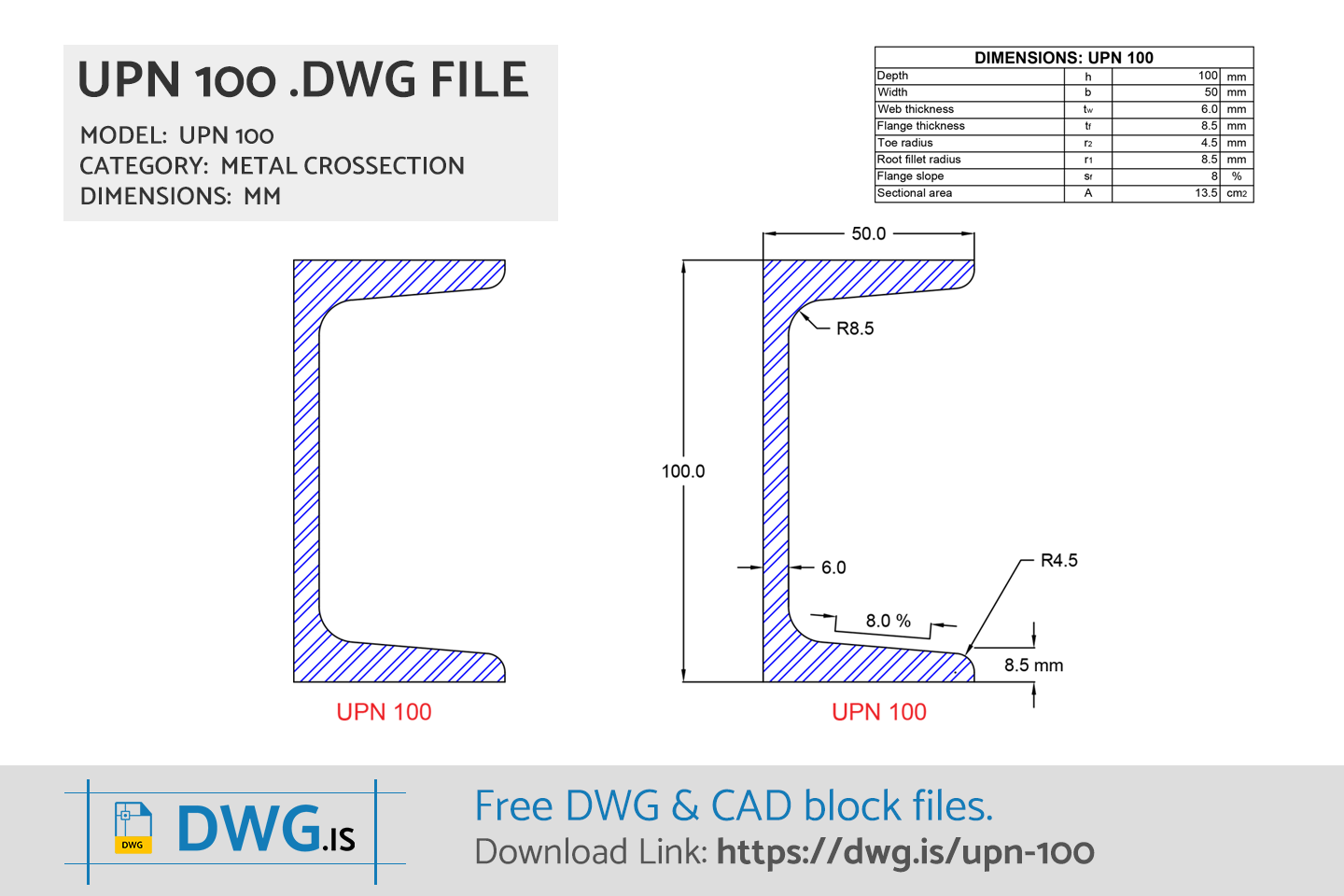

UPN 100 Free CAD Block
UPN 100 Tapered Flange Channel Cross-section Free DWG File is a useful design element for a variety of construction projects. This flange channel has a depth of 100 mm and a width of 50 mm. The web thickness is 6 mm and the flange thickness is 8.5 mm. The root fillet radius is 8.5 mm and the toe radius is 4.5 mm. The distance between the two points is 25 mm and the sectional area for this channel is 13.5 cm2
UPN 120 Free CAD Block
UPN 120 DWG File is Tapered Flange Channel Cross-section Free DWG File is an essential component for any construction project involving UPN Channel Crossections. This high-quality file includes detailed information about the dimensions of the channel, including its depth, width, web thickness, flange thickness, root fillet radius, toe radius, distance, and sectional area.
UPN 140 Free CAD Block
UPN 140 Tapered Flange Channel Free DWG File is an essential structural component for any engineering project. It features a 140 mm depth, 60 mm width, 7 mm web thickness, 10 mm flange thickness, 10 mm root fillet radius, 5 mm toe radius, and 30 mm distance between flanges. This versatile design also offers a sectional area of 20.4 cm2.

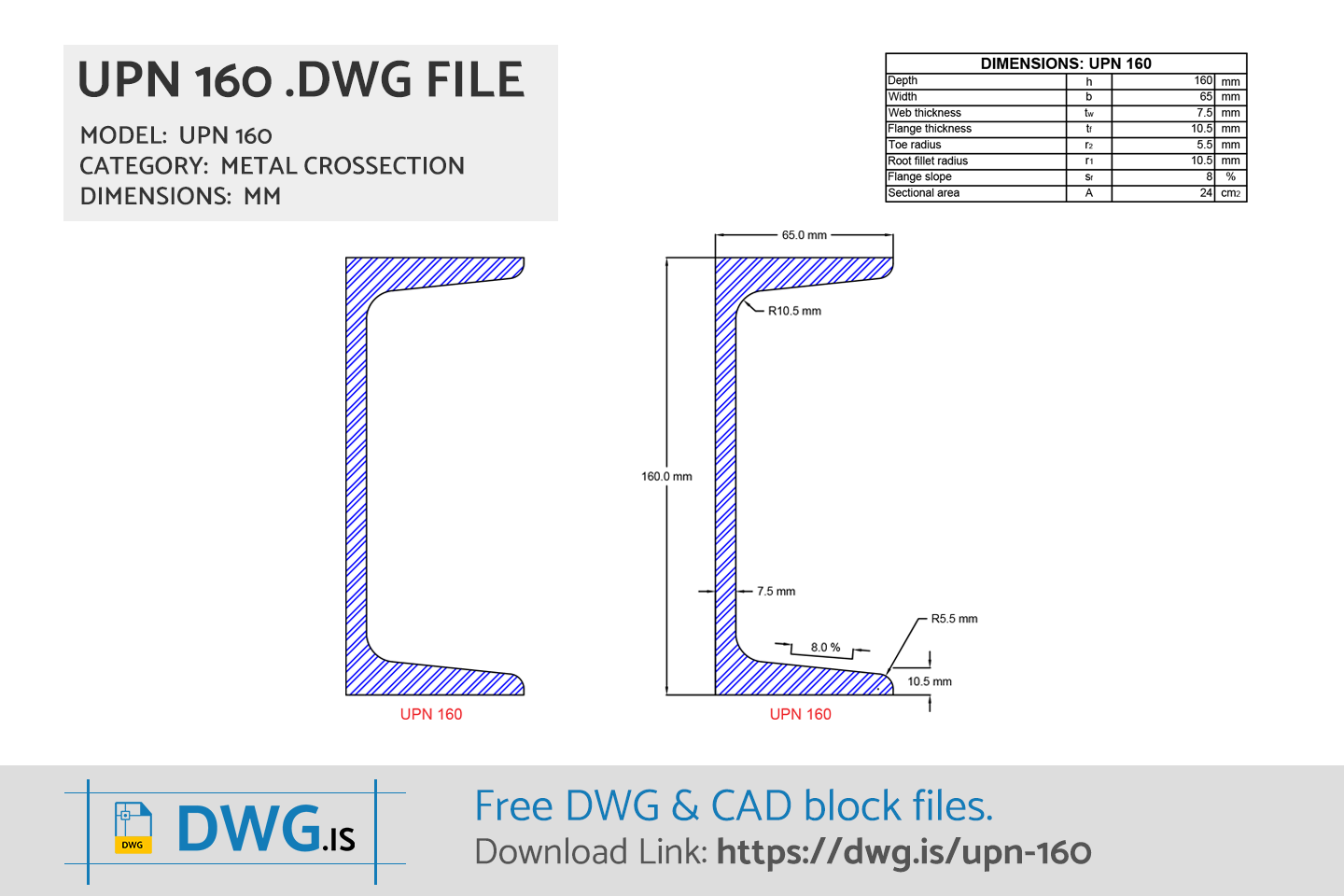

UPN 160 Free CAD Block
This UPN 160 Tapered Flange Channel Cross-section Free DWG File is a free CAD design that can be used as a starting point for many engineering projects. It is a channel cross-section with a depth of 160 mm and a width of 65 mm.

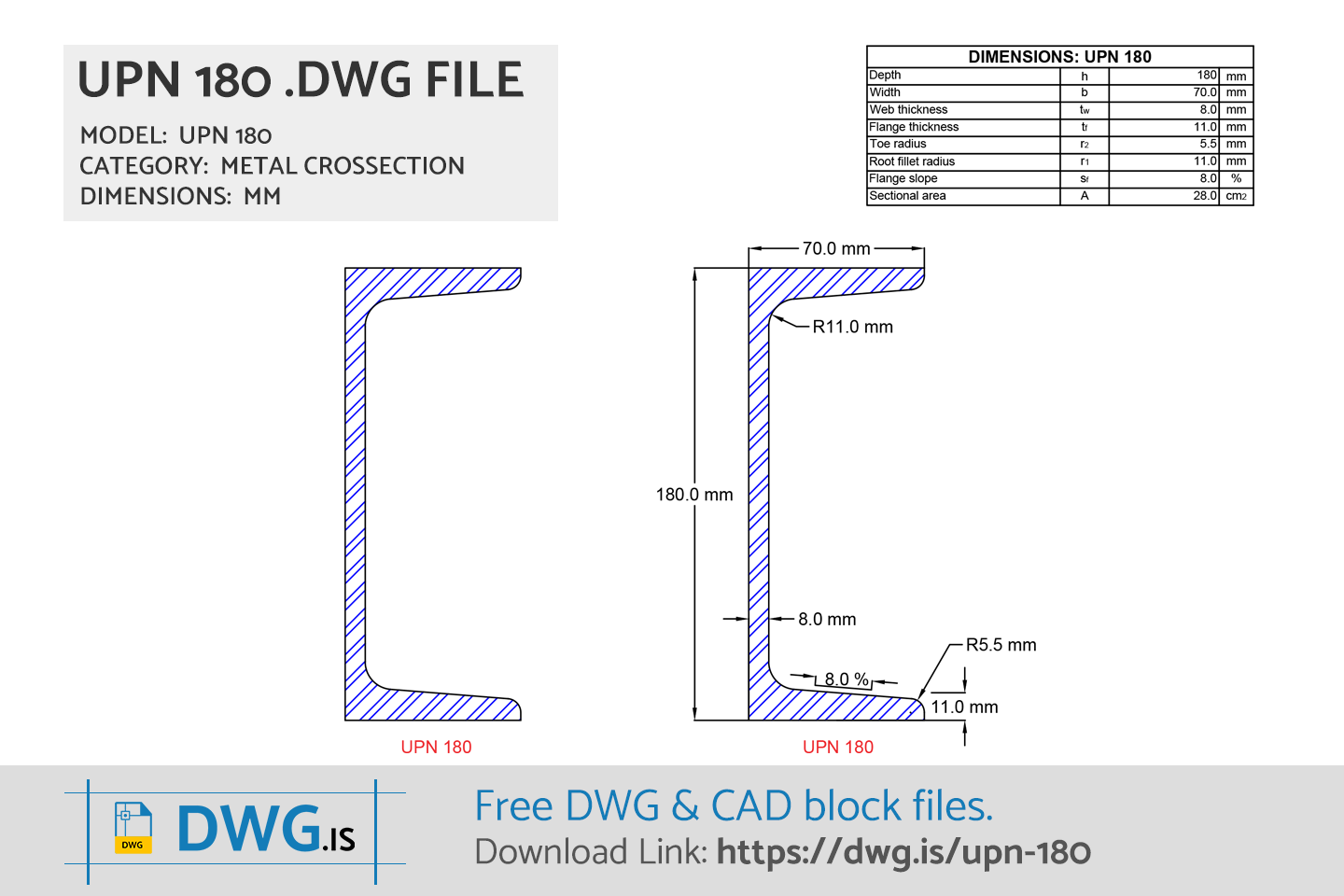

UPN 180 Free CAD Block
This UPN 180 Tapered Flange Channel is an engineering component used in a variety of applications. The cross-section free DWG file contains all the necessary dimensions to ensure a successful build. With a depth of 180 mm, a width of 70 mm and a web thickness of 8 mm, this component is robustly constructed.

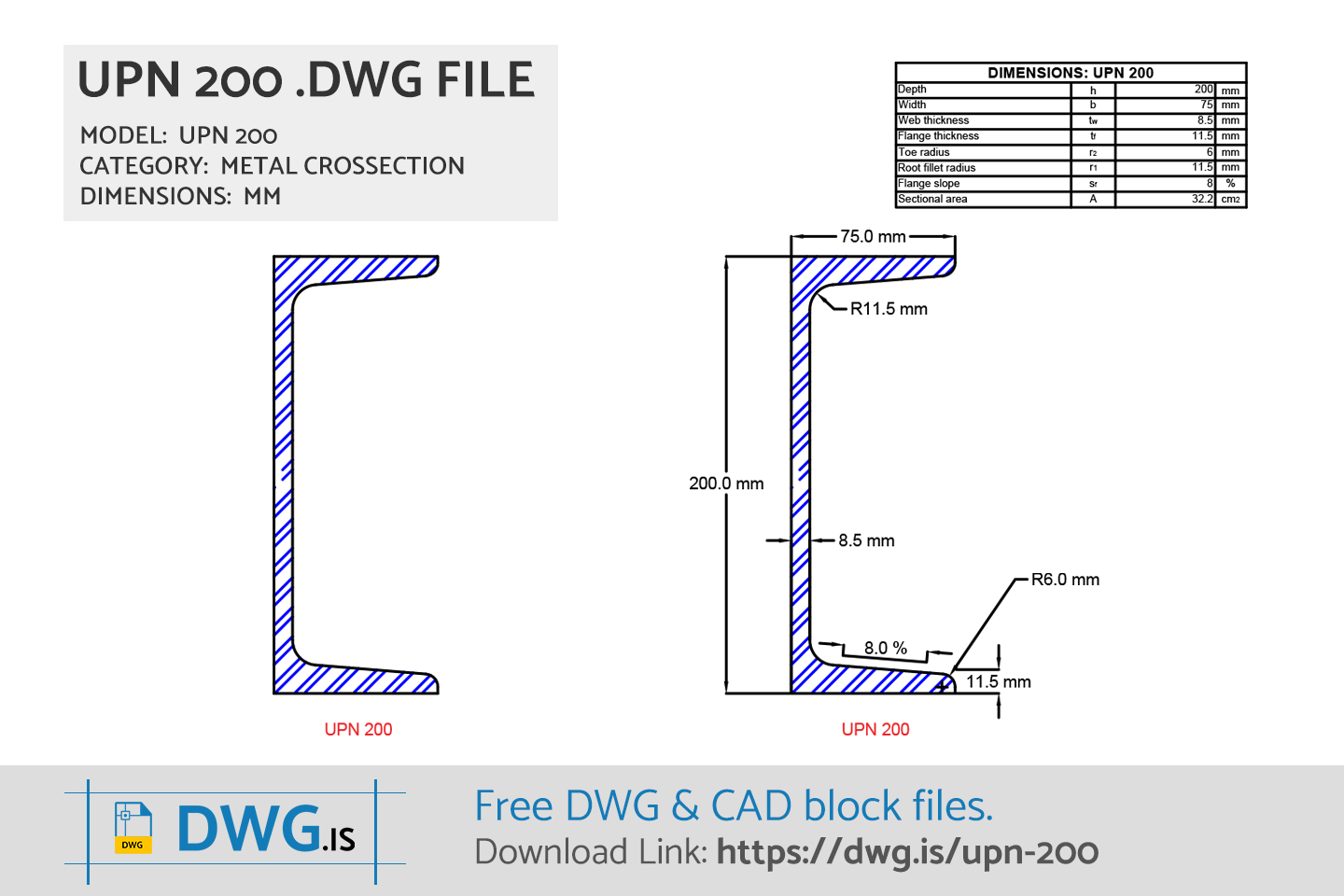

UPN 200 Free CAD Block
UPN 200 Tapered Flange Channel Cross-section Free DWG File is a versatile and efficient design for a wide variety of building and construction uses. The dimensions of the channel are 200mm deep, 75 mm wide, with a web thickness of 8.5mm, flange thickness of 11.5mm and a root fillet radius of 11.5 mm.

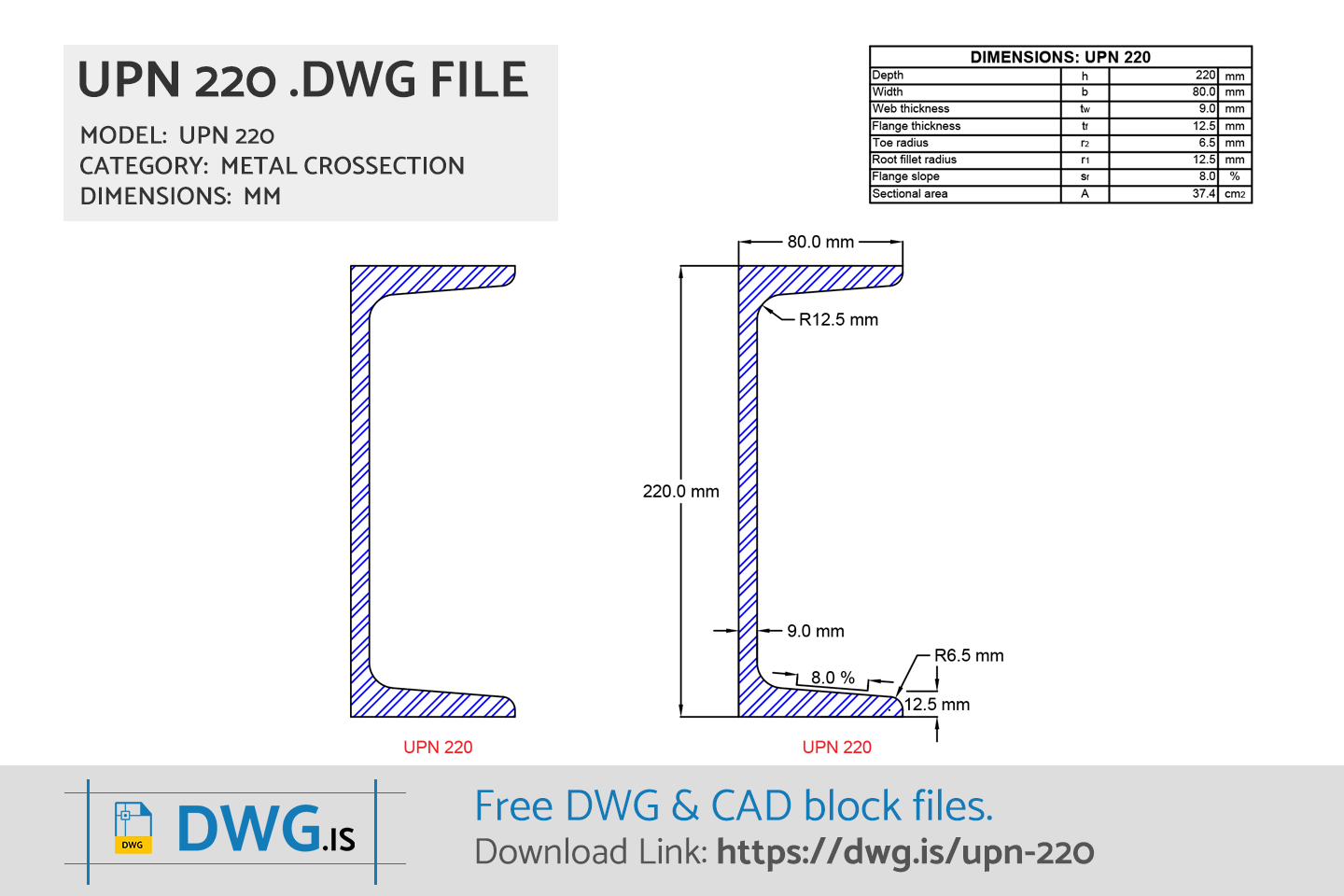

UPN 220 Free CAD Block
This UPN 220 Tapered Flange Channel Cross-section Free DWG File has a depth of 220mm, width of 80mm, web thickness of 9mm, flange thickness of 12.5mm, root fillet radius of 12.5mm, toe radius of 6.5mm, and distance of 40mm. Its sectional area is 37.4 cm2.
UPN 240 Free CAD Block
UPN 240 Flange Channel Cross-section Free DWG File includes dimensions of 240 mm in depth, 85 mm in width, 9.5 mm in web thickness, 13 mm in flange thickness, 13 mm in root fillet radius, 6.5 mm in toe radius, and 42.5 mm in distance. It also includes the sectional area of 42.3 cm2.
UPN 260 Free CAD Block
UPN 260 Tapered Flange Channel Cross-section Free DWG File is a great resource for anyone needing accurate dimensions for a tapered flange channel cross-section.

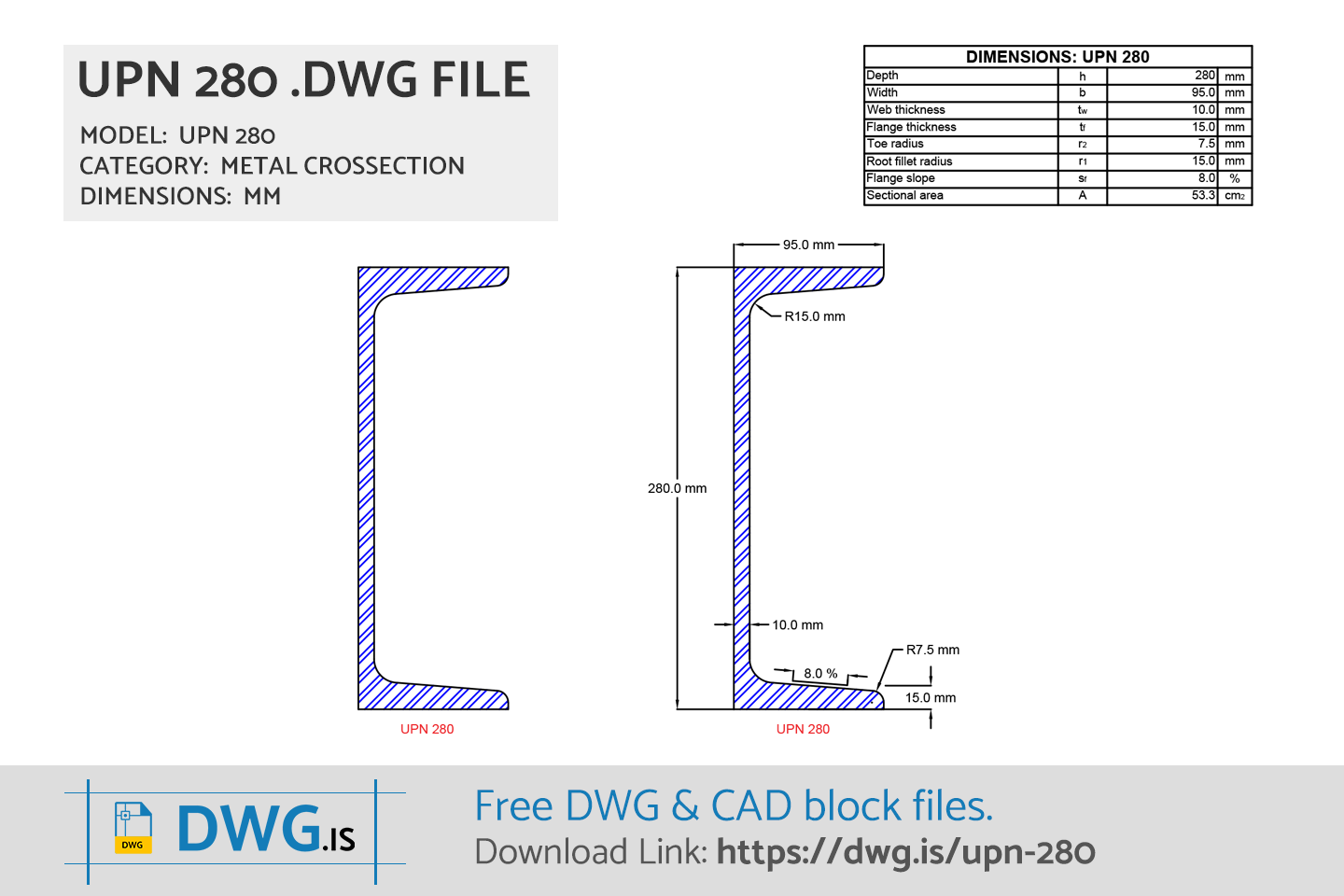

UPN 280 Free CAD Block
UPN 280 Flange Channel Cross-section Free DWG File is a high-quality, comprehensive design that offers a great degree of versatility and efficiency. With a depth of 280 mm, a width of 95 mm, a web thickness of 10 mm, and a flange thickness of 15 mm, this design is ideal for a variety of applications.
UPN 300 Free CAD Block
UPN 300 Tapered Flange Channel Cross-section Free DWG File is perfect for any construction project. It has a depth of 300 mm, a width of 100 mm, a web thickness of 10 mm, a flange thickness of 16 mm, a root fillet radius of 16 mm, a toe radius of 8 mm, and a distance of 50 mm.

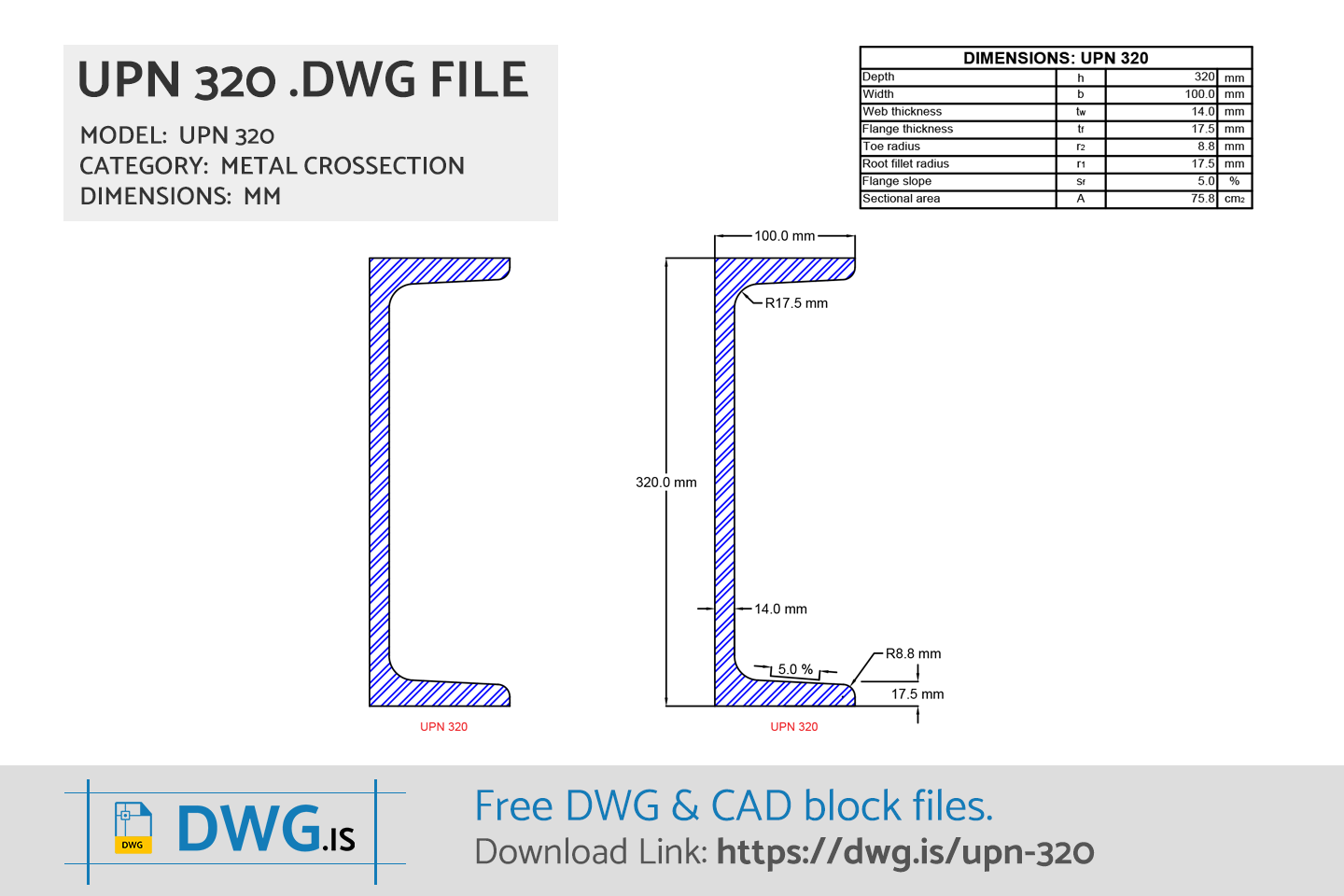

UPN 320 Free CAD Block
UPN 320 Flange Channel Cross-section Free DWG File is a great resource for engineers and designers in need of a quick and easy solution for accurate 3D model of a tapered flange channel cross-section.

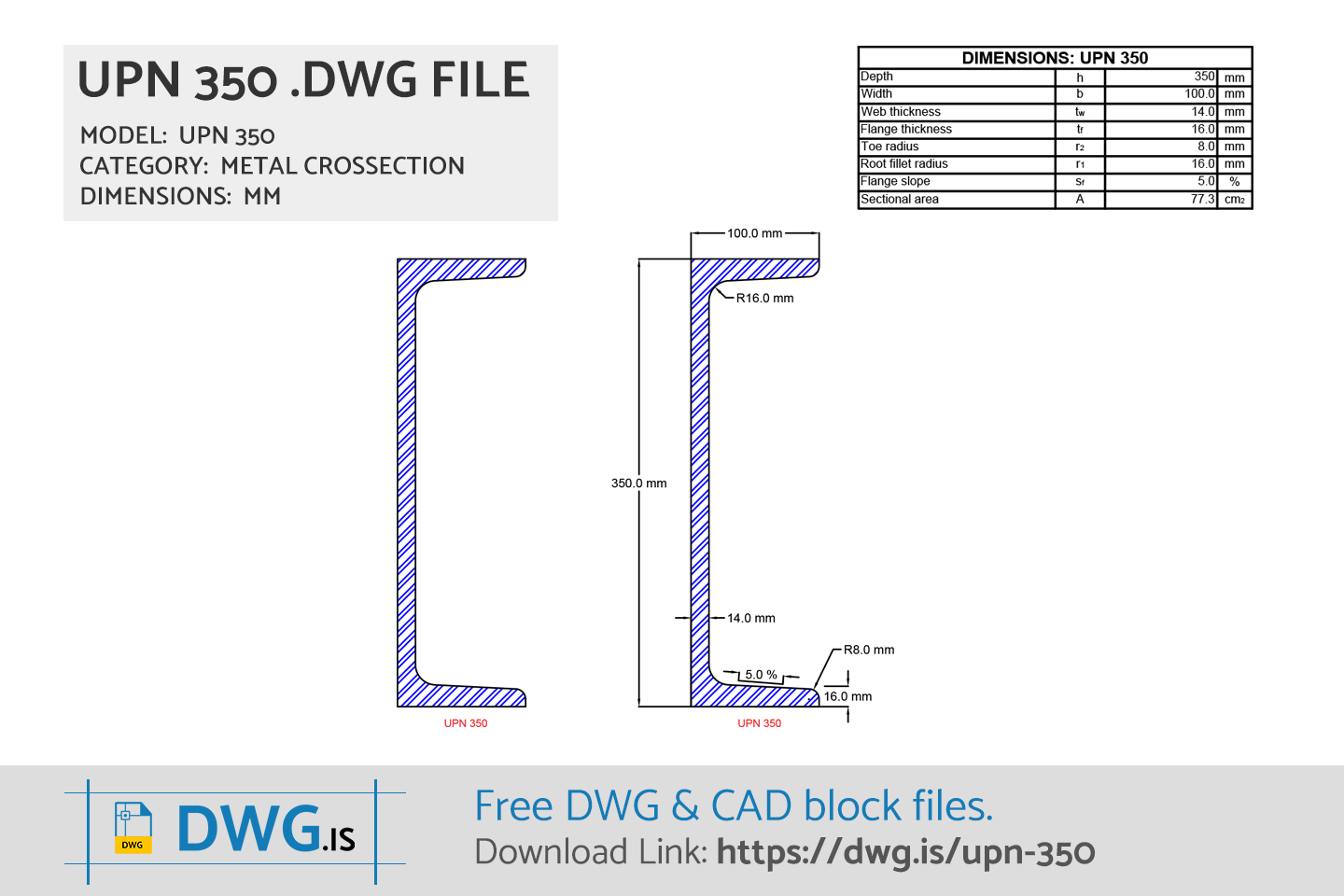

UPN 350 Free CAD Block
UPN 350 Tapered Flange Channel Cross-section is a free DWG file that features a depth of 350 mm, a width of 100 mm, a web thickness of 14 mm, and a flange thickness of 16 mm. It also has a root fillet radius of 16 mm, a toe radius of 8 mm, and a distance of 43 mm. Its sectional area is 77.3 cm2, making it suitable for a wide range of applications.

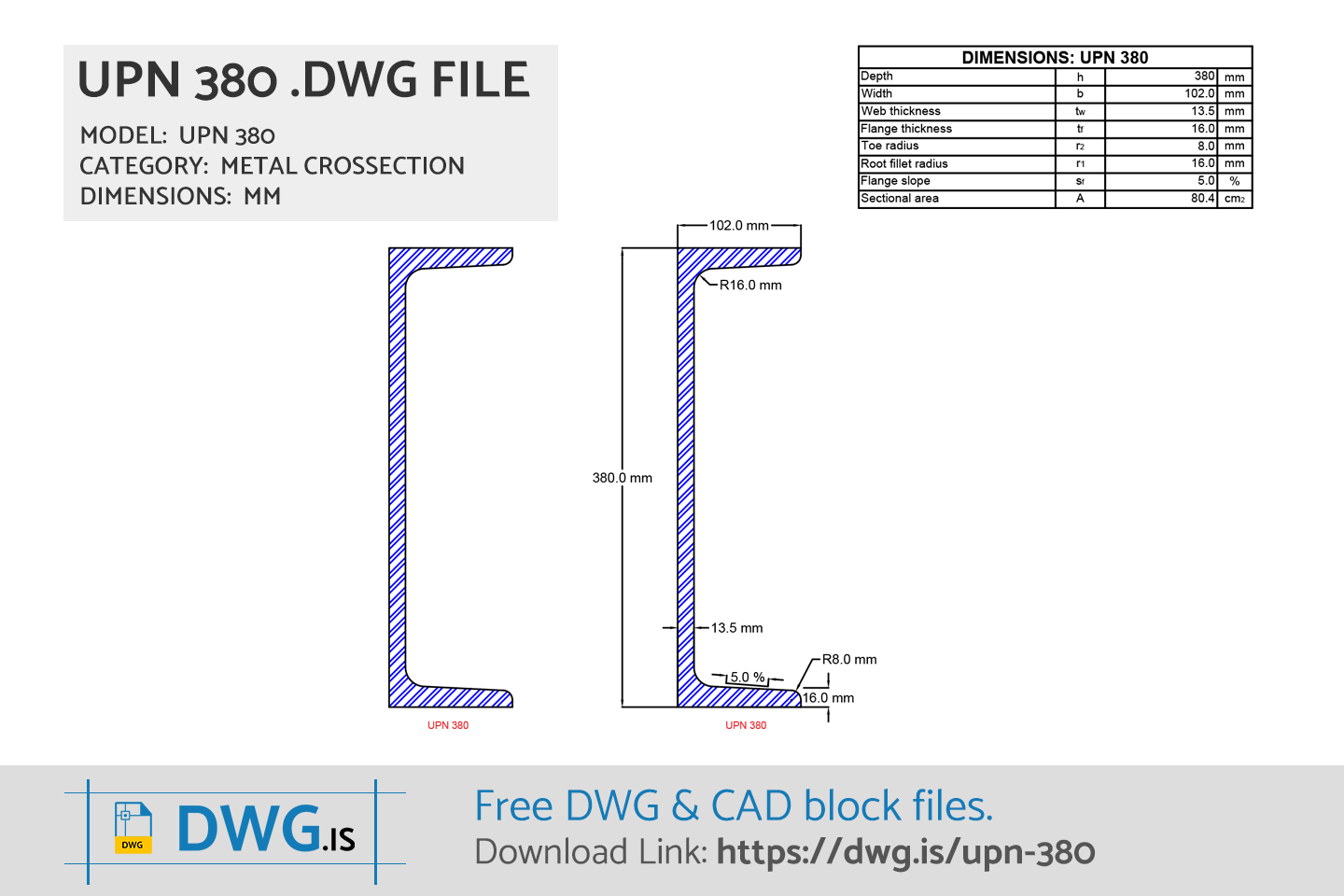

UPN 380 Free CAD Block
UPN 380 Flange Channel Cross-section Free DWG File is a free DWG file that provides detailed measurements and specifications for a UPN 380 Tapered Flange Channel Cross-section.

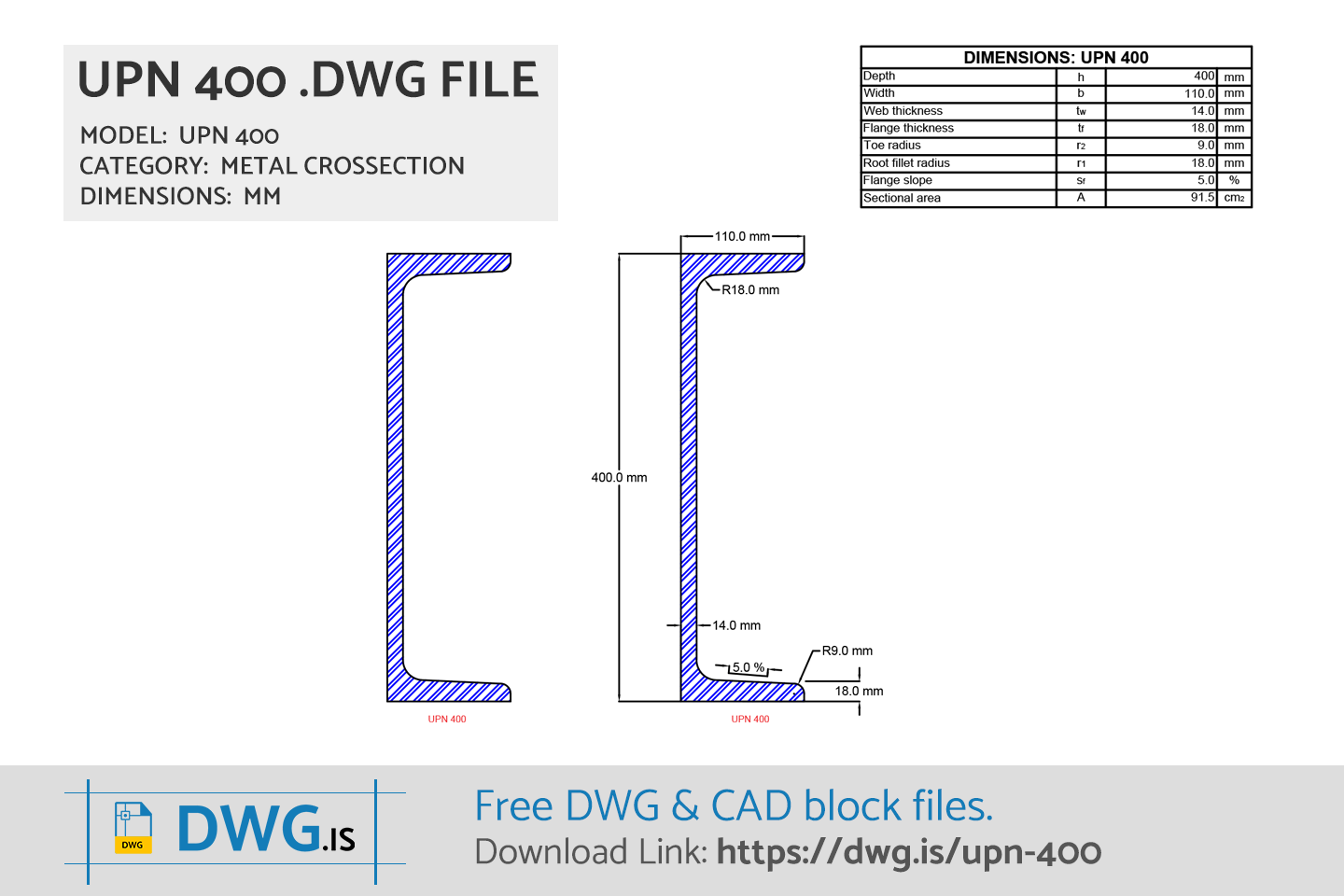

UPN 400 Free CAD Block
UPN 400 Tapered Flange Channel Cross-section Free DWG File offers a unique and versatile design, perfect for a variety of applications. With a depth of 400 mm, a width of 110 mm, and web and flange thicknesses of 14 mm and 18 mm respectively, this model offers great structural support.
