This UPN 160 Tapered Flange Channel Cross-section Free DWG File is a free CAD design that can be used as a starting point for many engineering projects. It is a channel cross-section with a depth of 160 mm and a width of 65 mm.
The web thickness is 7.5 mm, while the flange thickness is 10.5 mm. The fillet radius at the root is 10.5 mm and the toe radius is 5.5 mm. The distance between the web and the flange is 32.5 mm, with a total sectional area of 24 cm2. This design can be used for a variety of engineering projects, making it an ideal choice for those looking for a versatile CAD design

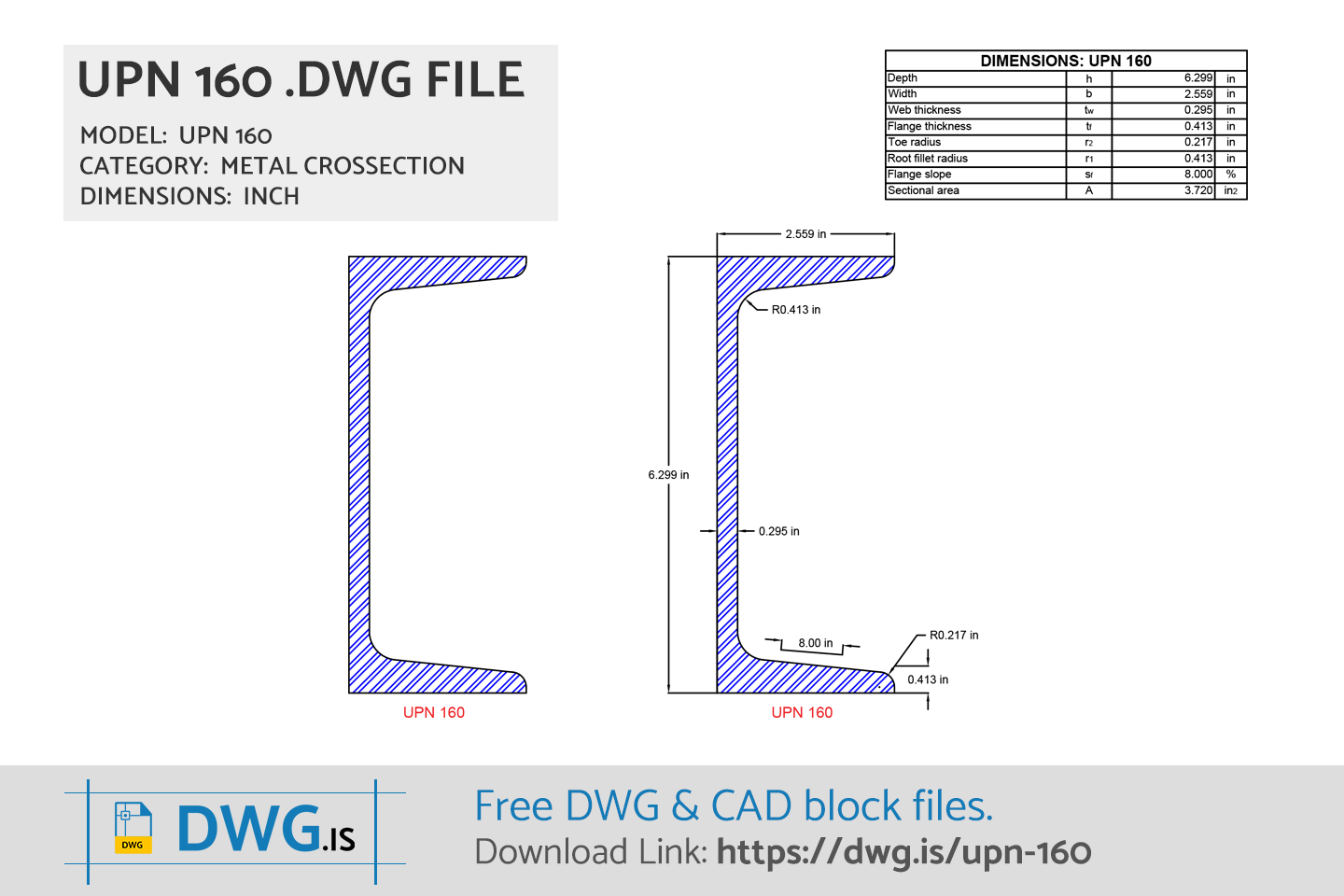

UPN 160 AutoCAD Block
UPN 160 Free CAD Block File Downloads
UPN 160 DWG File DownloadDWG DOWNLOAD ⇓

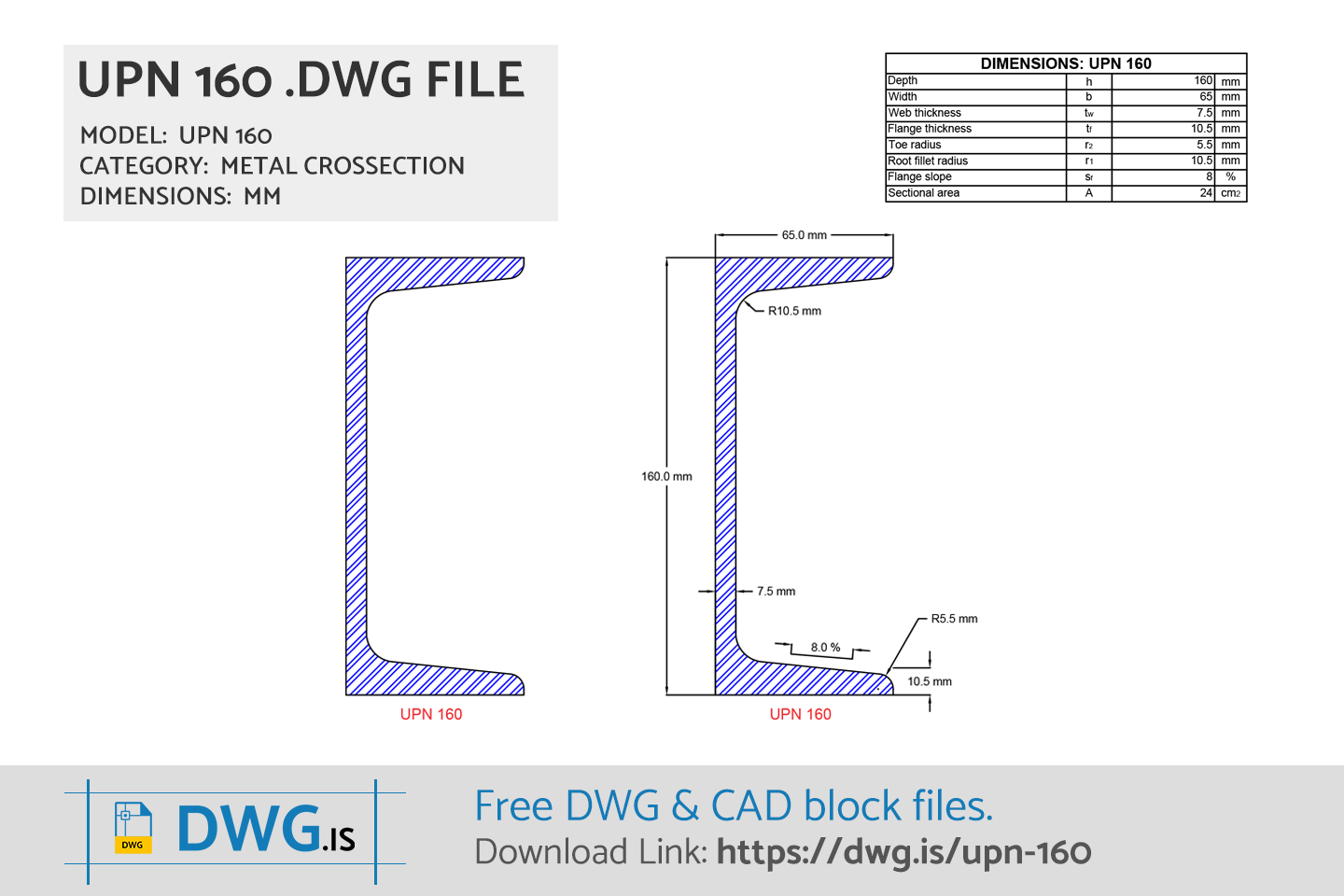

UPN 160 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 160 Dimensions
| UPN 160 Size | |
|---|---|
| Depth | 160.0 mm |
| Width | 65.0 mm |
| Web Thickness | 7.5 mm |
| Flange Thickness | 10.5 mm |
| Root Fillet Radius | 10.5 mm |
| Toe Radius | 5.5 mm |
| Distance | 32.5 mm |
| Sectional Area | 24.0 cm2 |
UPN 160 FAQ
-
What are UPN 160 size?
UPN 160 has dimensions: Depth 160.0 mm, Width 65.0 mm, Web Thickness 7.5 mm, Flange Thickness 10.5 mm, Root Fillet Radius 10.5 mm, Toe Radius 5.5 mm, Distance 32.5 mm, Sectional Area 24.0 cm2.
