IPE 550 Steel Beam Cross-section Free DWG File is a high-quality, detailed drawing of a steel beam structure for architects, engineers, and designers. The file follows Euronorm 19-57 and DIN 1025-5 standards and includes the dimensions of the beam; depth, width, web thickness, flange thickness, inner depth between flanges, root fillet radius, distance, and sectional area.
This is an ideal drawing for industrial, construction and manufacturing projects and is available in a DWG format. It is easy to use, highly accurate and perfect for a wide range of applications. With this drawing, you can easily plan and design your project with precision.

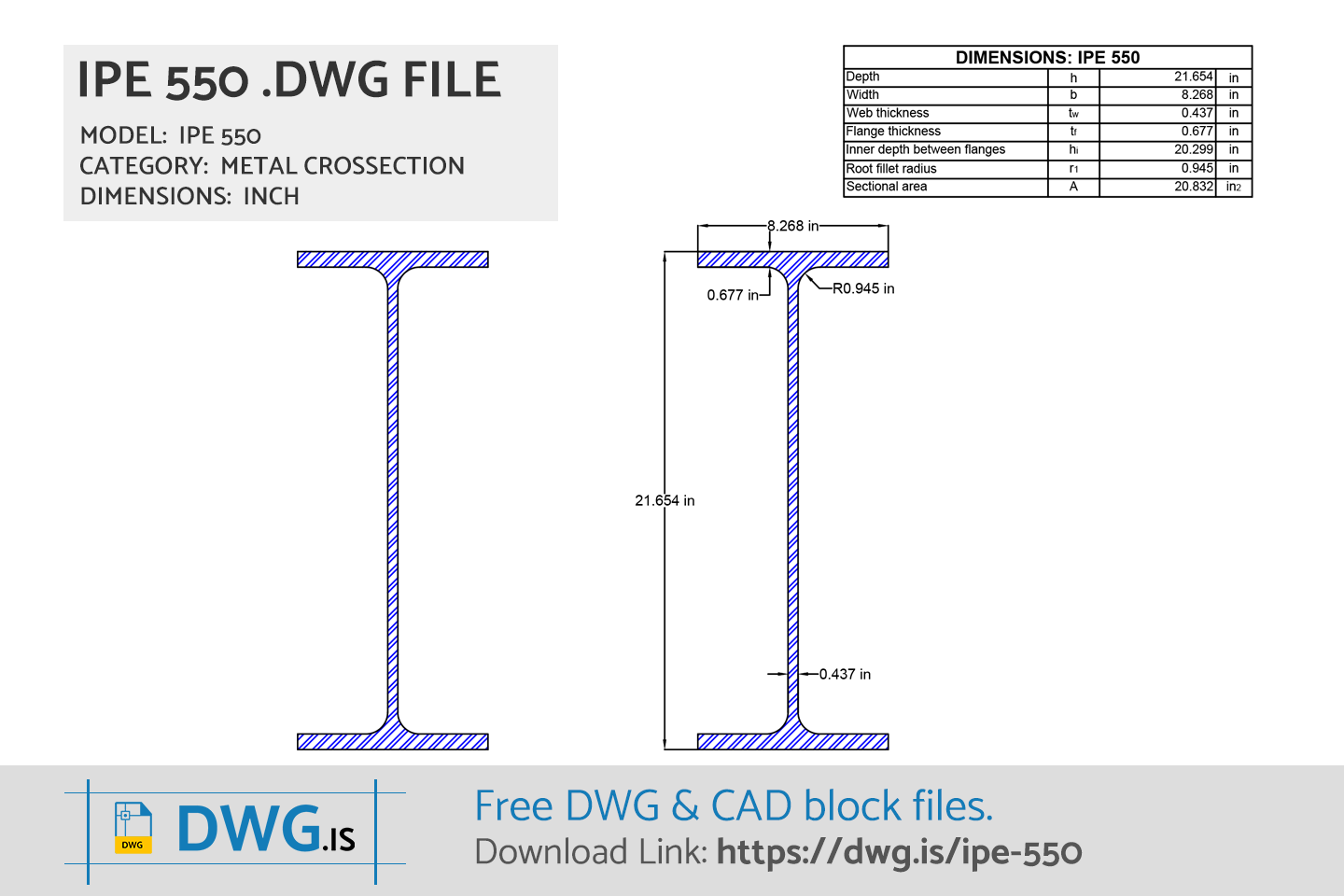

IPE 550 AutoCAD Block
IPE 550 Free CAD Block File Downloads
IPE 550 DWG File DownloadDWG DOWNLOAD ⇓

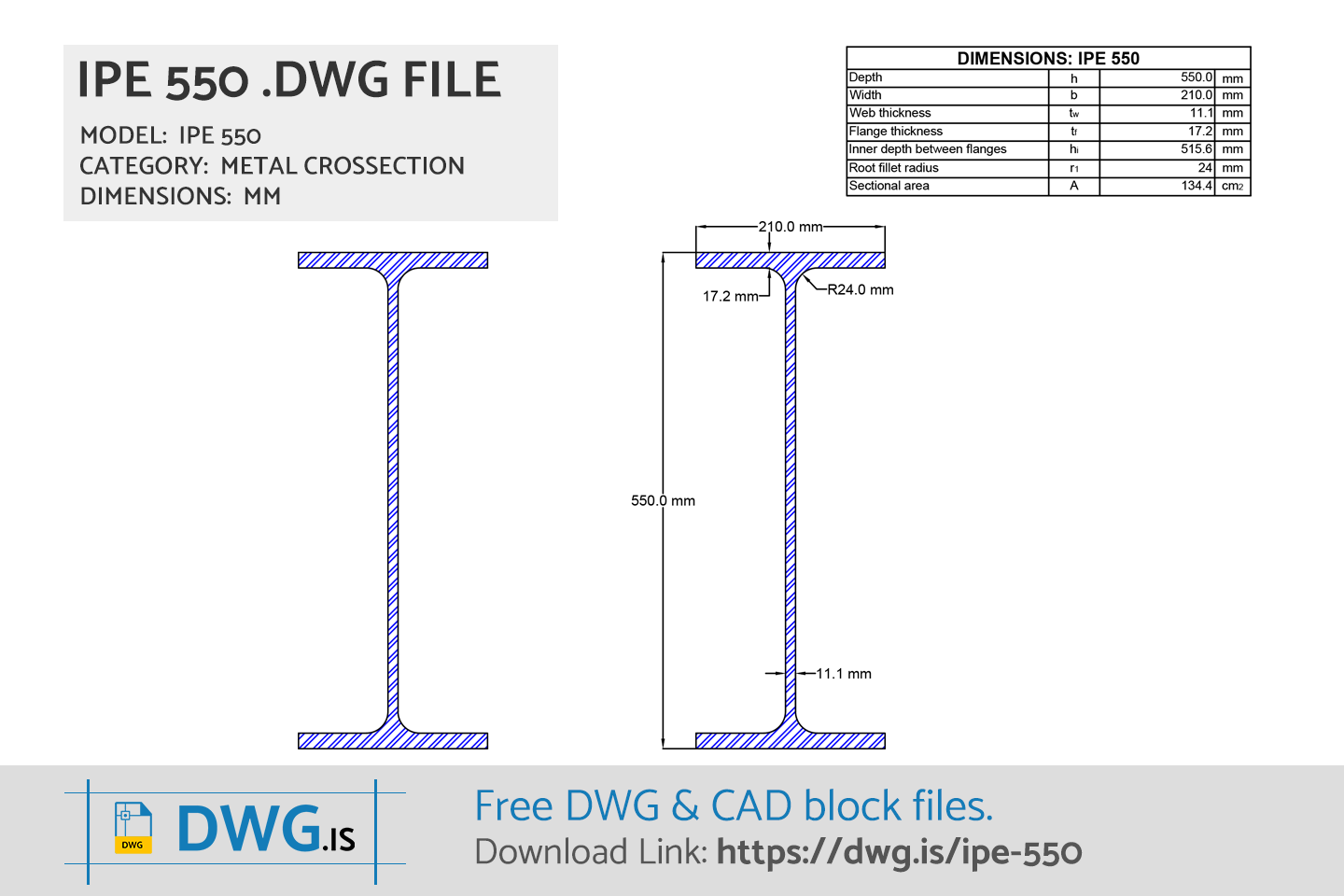

IPE 550 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 550 Dimensions
| IPE 550 Size | |
|---|---|
| Depth | 550.0 mm |
| Width | 210.0 mm |
| Web Thickness | 11.1 mm |
| Flange Thickness | 17.2 mm |
| Inner depth between flanges | 515.6 mm |
| Root Fillet Radius | 24.0 mm |
| Distance | 41.0 mm |
| Sectional Area | 134.4 cm2 |
IPE 550 FAQ
-
What are IPE 550 size?
IPE 550 has dimensions: Depth 550.0 mm, Width 210.0 mm, Web Thickness 11.1 mm, Flange Thickness 17.2 mm, Inner depth between flanges 515.6 mm, Root Fillet Radius 24.0 mm, Distance 41.0 mm, Sectional Area 134.4 cm2.
