HEA 160 DWG file contains the specifications for HEA 160 European Standard Wide Flange H Beams in accordance with the former standard Euronorm 53-62. It includes the dimensions of the beam, such as the depth (152mm), width (160mm), web thickness (6mm), flange thickness (9mm), flange inner depth (134mm), root fillet radius (15mm), distance (24mm), and sectional area (38.8 cm2). This DWG file is perfect for any construction project requiring HEA 160 European Standard Wide Flange H Beams. It is a highly detailed representation of the beam, allowing for precise measurements and calculations.
HEA 160 AutoCAD Block

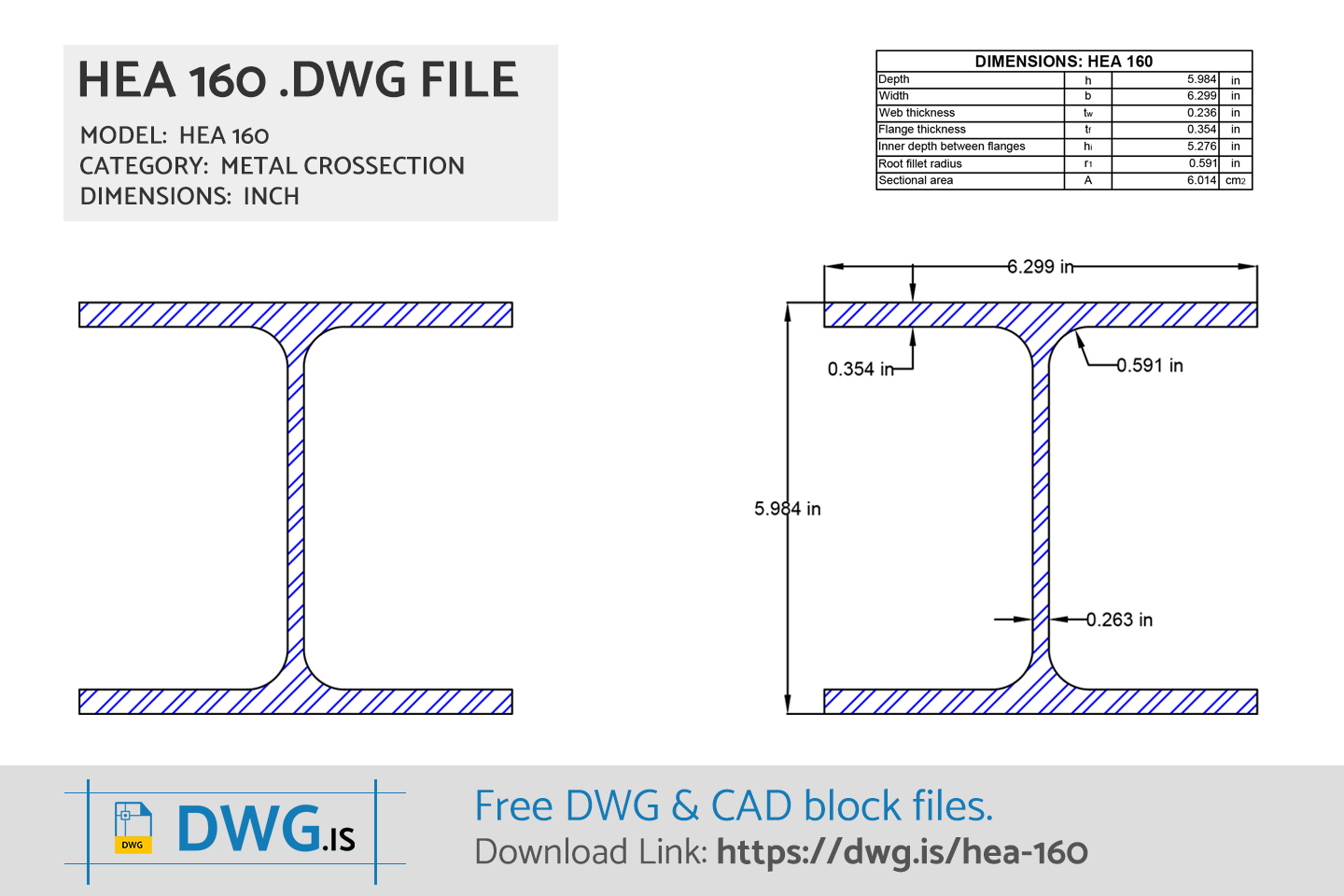

HEA 160 Free CAD Block File Downloads
HEA 160 DWG File DownloadDWG DOWNLOAD ⇓

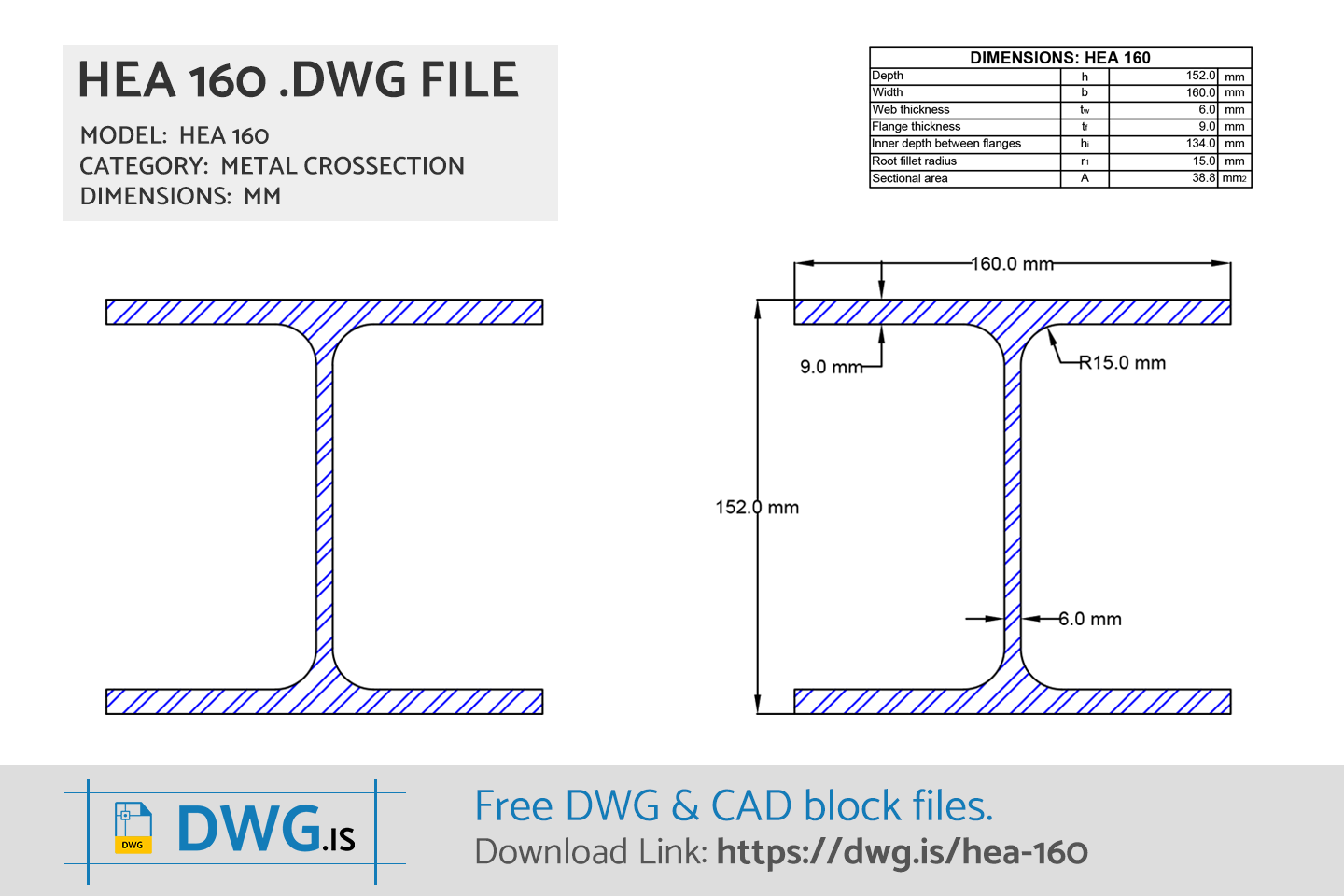

HEA 160 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 160 Dimensions
| HEA 160 Size | |
|---|---|
| Depth | 152.0 mm |
| Width | 160.0 mm |
| Web Thickness | 6.0 mm |
| Flange Thickness | 9.0 mm |
| Flange Inner Depth | 134.0 mm |
| Root Fillet Radius | 15.0 mm |
| Distance | 24.0 mm |
| Sectional Area | 38.8 cm2 |
HEA 160 FAQ
-
What are HEA 160 size?
HEA 160 has dimensions: Depth 152.0 mm, Width 160.0 mm, Web Thickness 6.0 mm, Flange Thickness 9.0 mm, Flange Inner Depth 134.0 mm, Root Fillet Radius 15.0 mm, Distance 24.0 mm, Sectional Area 38.8 cm2.
