IPE 220 Steel Beasm Cross-section is a free DWG file that complies with Euronorm 19-57 and DIN 1025-5 standards. It is a 220 mm depth, 110 mm width, 5.9 mm web thickness and 9.2 mm flange thickness.
The inner depth between the flanges is 201.6 mm and the root fillet radius is 12 mm. The distance between the two flanges is 21 mm and the sectional area is 33.37 cm2. It is suitable for several applications such as structural engineering, bridge construction, beam construction, etc. It is easy to install and is made with high quality materials to ensure its longevity.

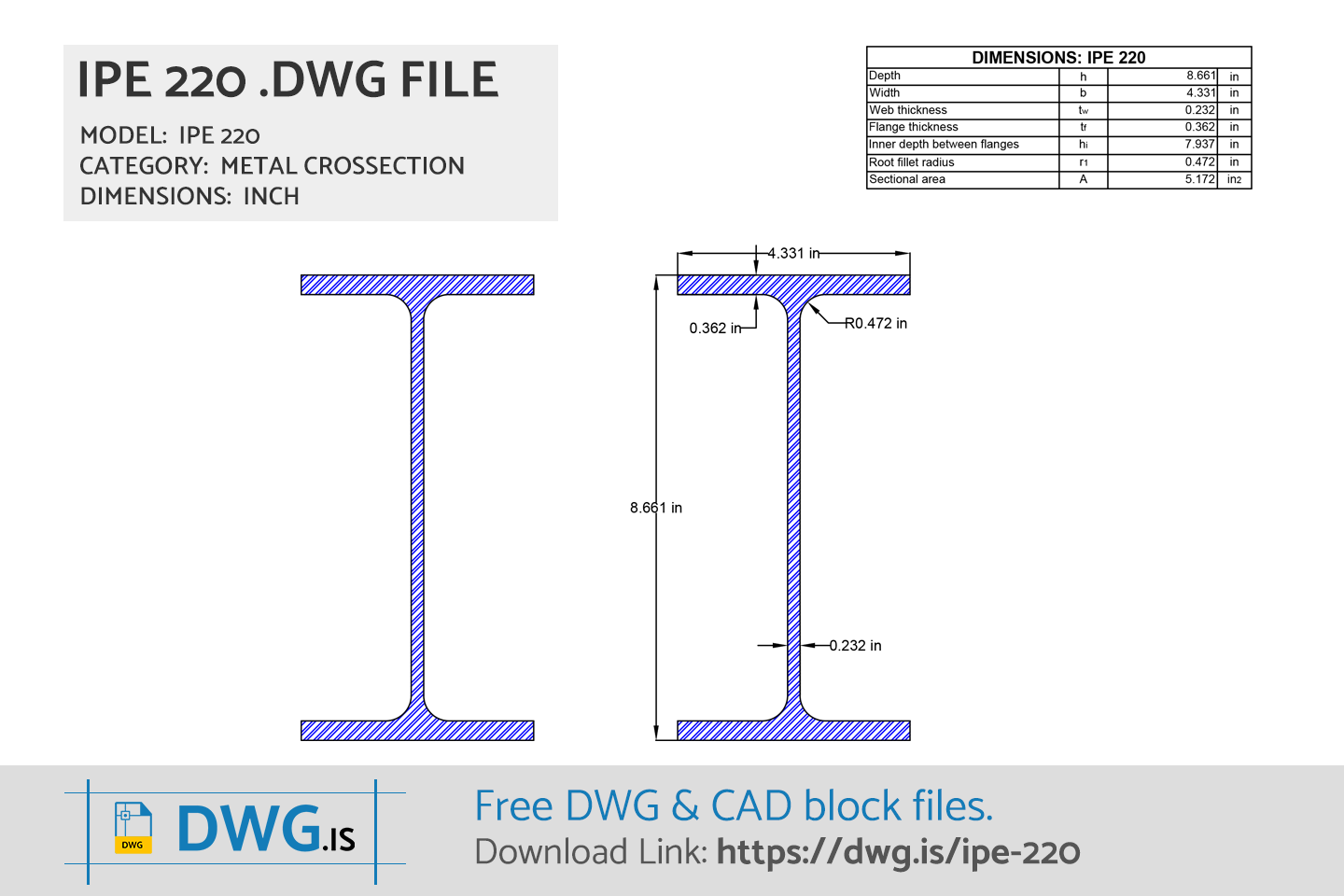

IPE 220 AutoCAD Block
IPE 220 Free CAD Block File Downloads
IPE 220 DWG File DownloadDWG DOWNLOAD ⇓
IPE 220 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓

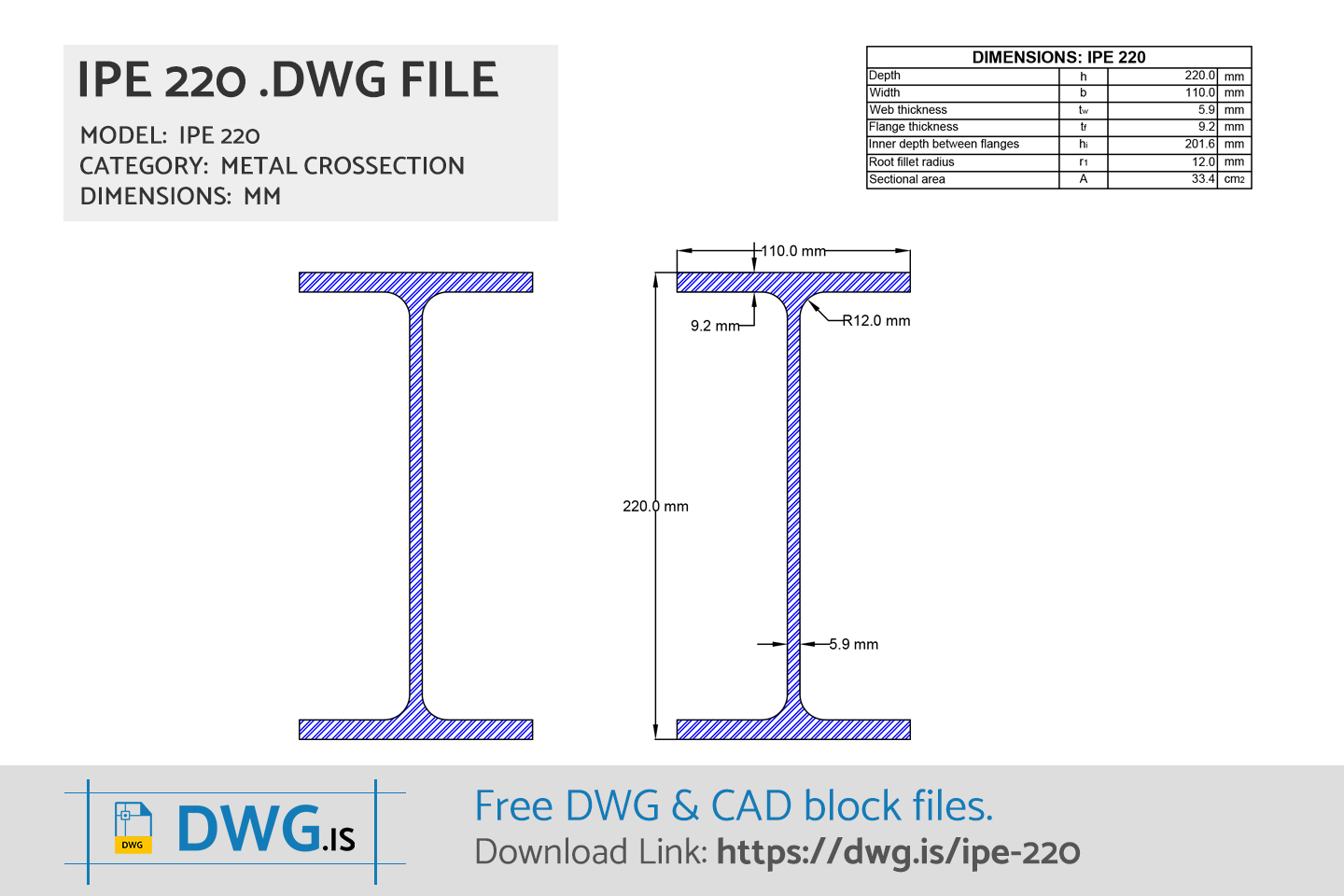

WITH DIMENSION (mm)
IPE 220 Dimensions
| IPE 220 Size | |
|---|---|
| Depth | 220.0 mm |
| Width | 110.0 mm |
| Web Thickness | 5.9 mm |
| Flange Thickness | 9.2 mm |
| Inner depth between flanges | 201.6 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 21.0 mm |
| Sectional Area | 33.37 cm2 |
IPE 220 FAQ
-
What are IPE 220 size?
IPE 220 has dimensions: Depth 220.0 mm, Width 110.0 mm, Web Thickness 5.9 mm, Flange Thickness 9.2 mm, Inner depth between flanges 201.6 mm, Root Fillet Radius 12.0 mm, Distance 21.0 mm, Sectional Area 33.37 cm2.
