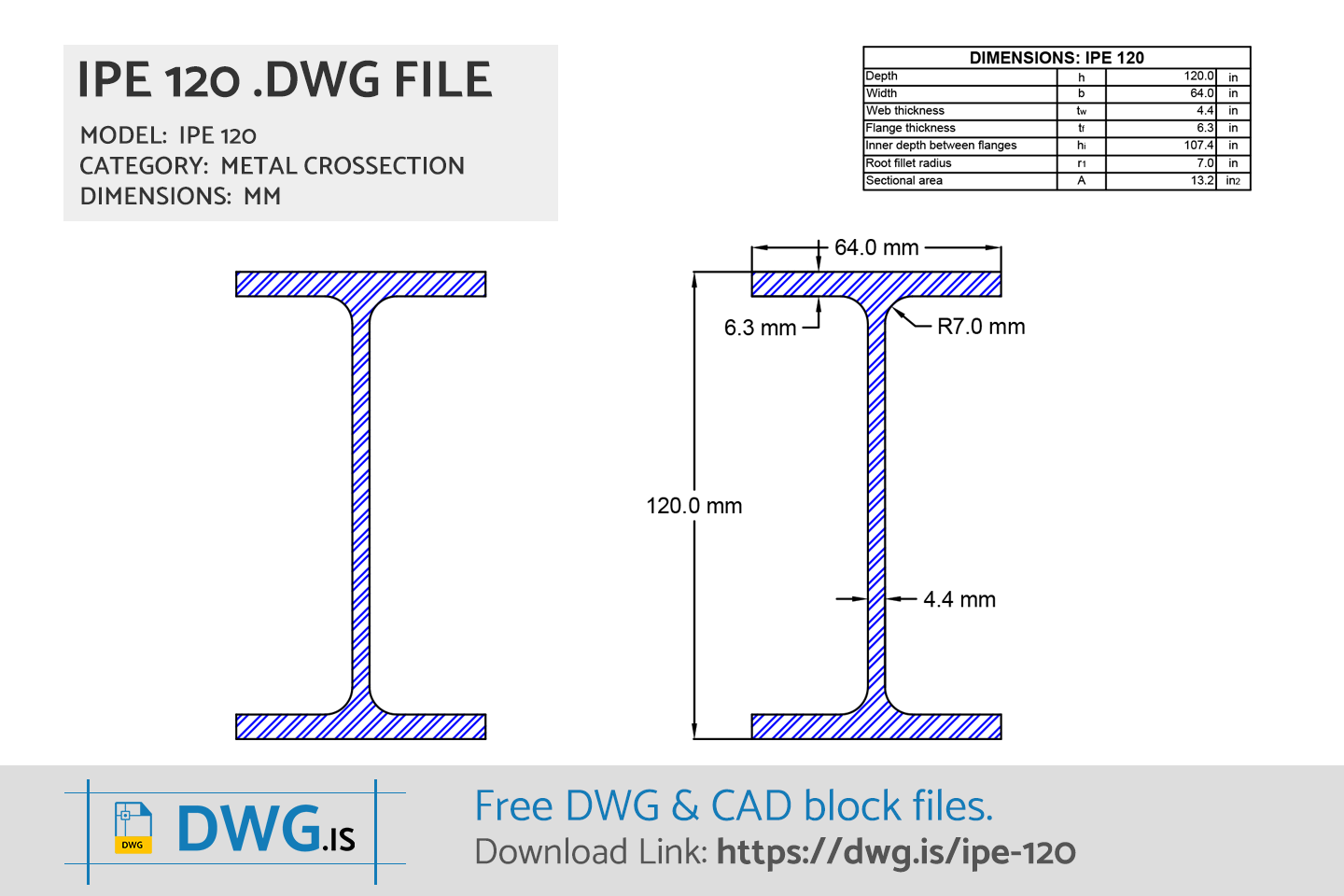

IPE 120 Free DWG File is a high-quality CAD drawing of IPE 120 Steel Beam Cross-section that is available for free. It has been designed to meet the Euronorm 19-57 and DIN 1025-5 standards, making it a reliable and accurate resource.
The dimensions of the flange channel include a depth of 120mm, a width of 64mm, a web thickness of 4.4mm, a flange thickness of 6.3mm, an inner depth between flanges of 107.4mm, a root fillet radius of 7mm, a distance of 14mm and a sectional area of 13.21 cm2. This free DWG file is a great resource for anyone in need of the precise dimensions and properties of an IPE 120 Steel Beam Cross-section.

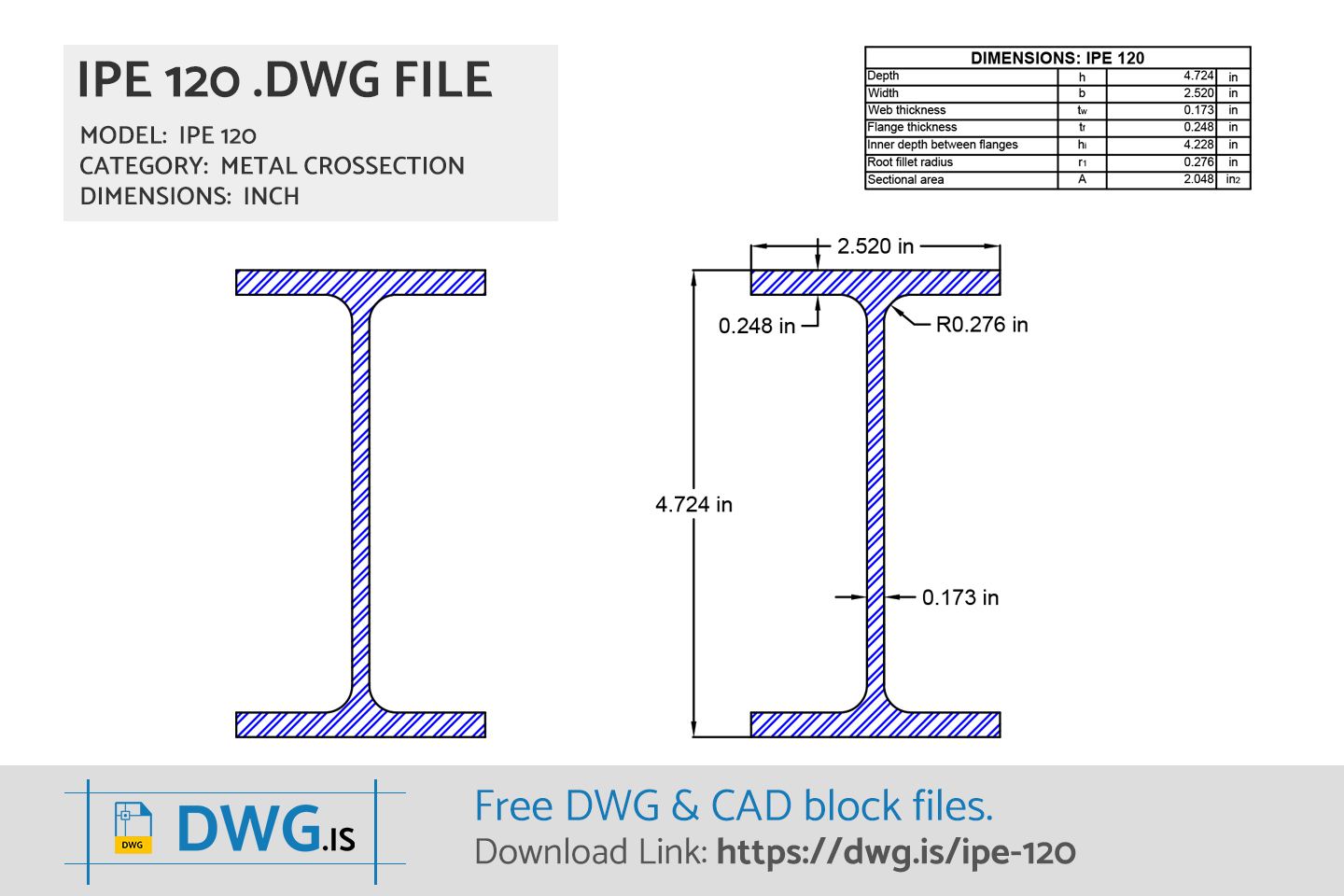

IPE 120 AutoCAD Block
IPE 120 Free CAD Block File Downloads
IPE 120 DWG File DownloadDWG DOWNLOAD ⇓
IPE 120 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 120 Dimensions
| IPE 120 Size | |
|---|---|
| Depth | 120.0 mm |
| Width | 64.0 mm |
| Web Thickness | 4.4 mm |
| Flange Thickness | 6.3 mm |
| Inner depth between flanges | 107.4 mm |
| Root Fillet Radius | 7.0 mm |
| Distance | 14.0 mm |
| Sectional Area | 13.21 cm2 |
IPE 120 FAQ
-
What are IPE 120 size?
IPE 120 has dimensions: Depth 120.0 mm, Width 64.0 mm, Web Thickness 4.4 mm, Flange Thickness 6.3 mm, Inner depth between flanges 107.4 mm, Root Fillet Radius 7.0 mm, Distance 14.0 mm, Sectional Area 13.21 cm2.
