HEB 260 AutoCAD Block
HEB 260 Free CAD Block File Downloads
HEB 260 DWG File DownloadDWG DOWNLOAD ⇓

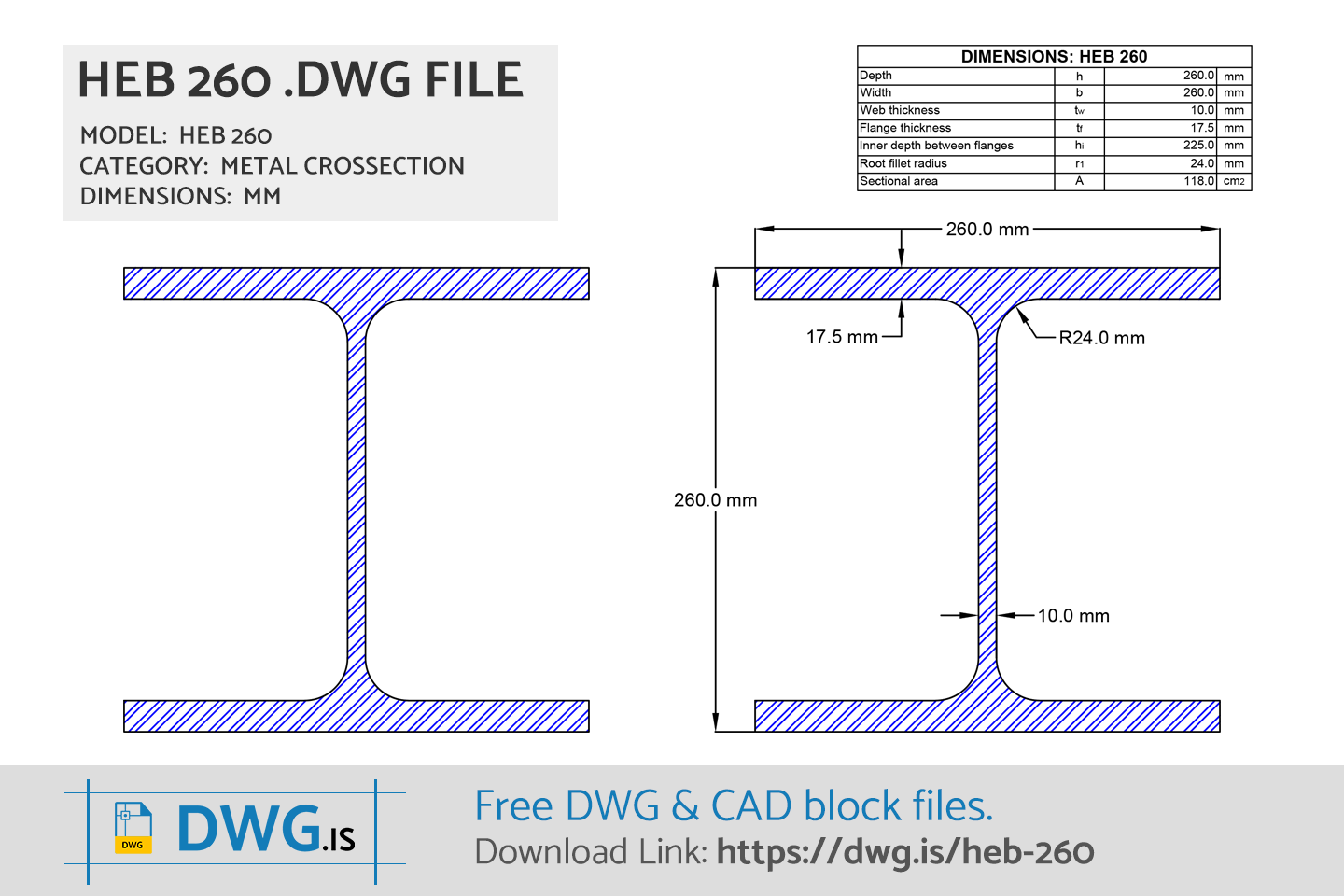

HEB 260 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 260 Dimensions
| HEB 260 Size | |
|---|---|
| Depth | 260.0 mm |
| Width | 260.0 mm |
| Web Thickness | 10.0 mm |
| Flange Thickness | 17.5 mm |
| Flange Inner Depth | 225.0 mm |
| Root Fillet Radius | 24.0 mm |
| Distance | 177.0 mm |
| Sectional Area | 118.4 cm2 |
HEB 260 FAQ
-
What are HEB 260 size?
HEB 260 has dimensions: Depth 260.0 mm, Width 260.0 mm, Web Thickness 10.0 mm, Flange Thickness 17.5 mm, Flange Inner Depth 225.0 mm, Root Fillet Radius 24.0 mm, Distance 177.0 mm, Sectional Area 118.4 cm2.
