HEA 360 DWG file contains the detailed specifications for the HEA 360 European Standard Wide Flange H Beams, in accordance with former standard Euronorm 53-62. The beams feature a depth of 350 mm, a width of 300 mm and a web thickness of 10 mm. They also feature a flange thickness of 17.5 mm, a flange inner depth of 315 mm, a root fillet radius of 27 mm, a distance of 45 mm and a sectional area of 143 cm2. The DWG file details complete dimensions and specifications for the HEA 360 European Standard Wide Flange H Beams and is used to create models and drafts for construction projects and other applications.
HEA 360 AutoCAD Block
HEA 360 Free CAD Block File Downloads

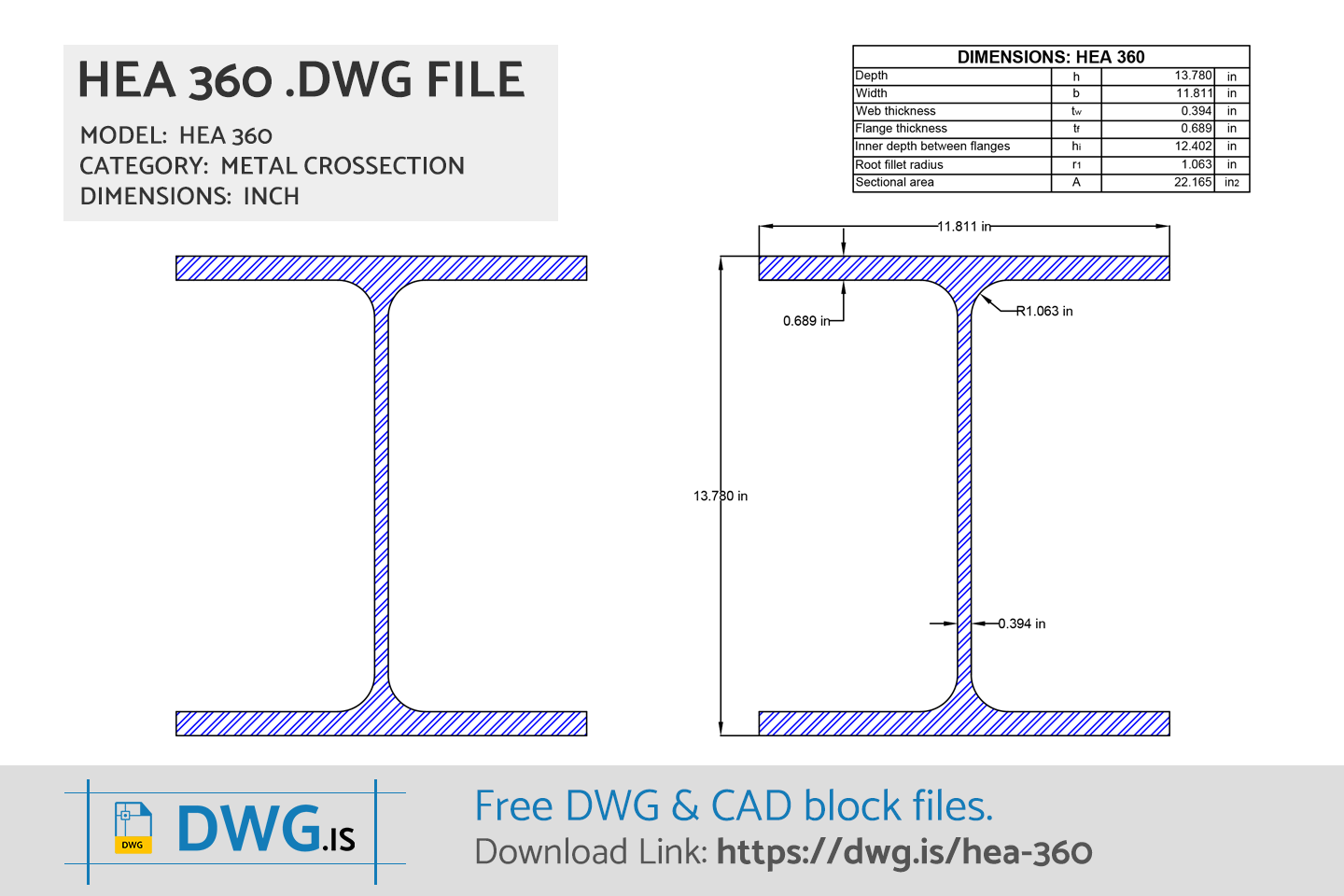

HEA 360 DWG File DownloadDWG DOWNLOAD ⇓

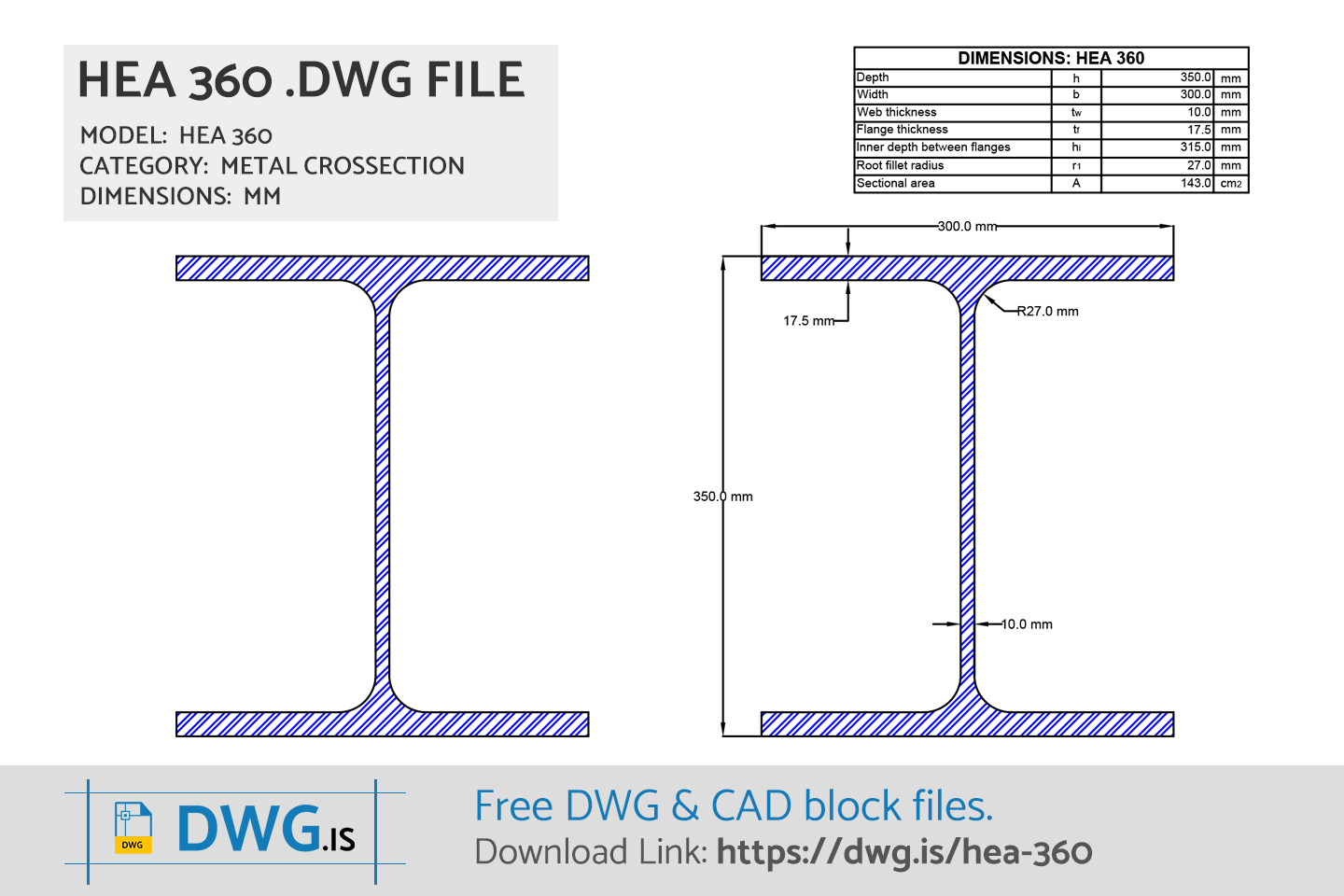

HEA 360 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 360 Dimensions
| HEA 360 Size | |
|---|---|
| Depth | 350.0 mm |
| Width | 300.0 mm |
| Web Thickness | 10.0 mm |
| Flange Thickness | 17.5 mm |
| Flange Inner Depth | 315.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 45.0 mm |
| Sectional Area | 143.0 cm2 |
HEA 360 FAQ
-
What are HEA 360 size?
HEA 360 has dimensions: Depth 350.0 mm, Width 300.0 mm, Web Thickness 10.0 mm, Flange Thickness 17.5 mm, Flange Inner Depth 315.0 mm, Root Fillet Radius 27.0 mm, Distance 45.0 mm, Sectional Area 143.0 cm2.
