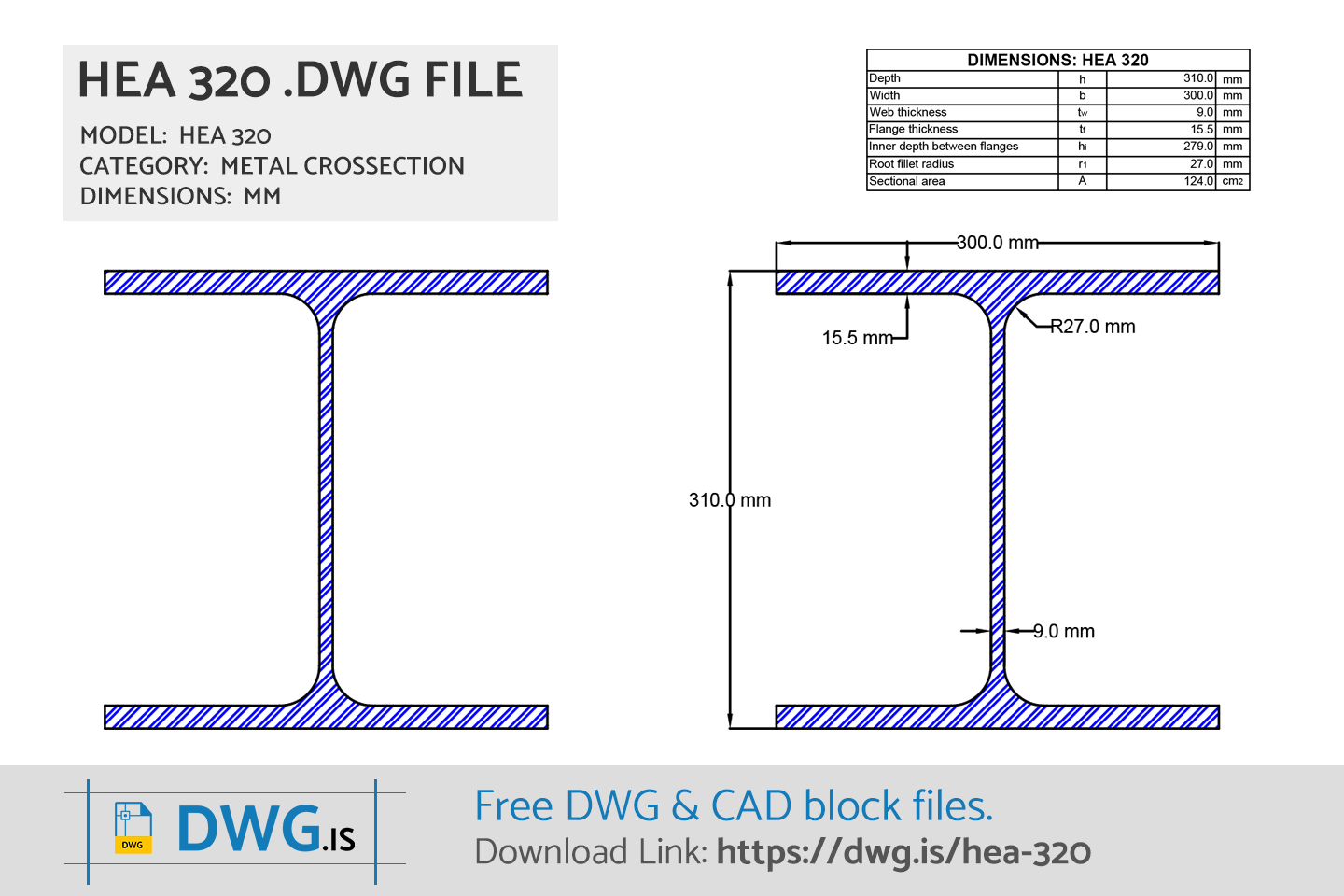

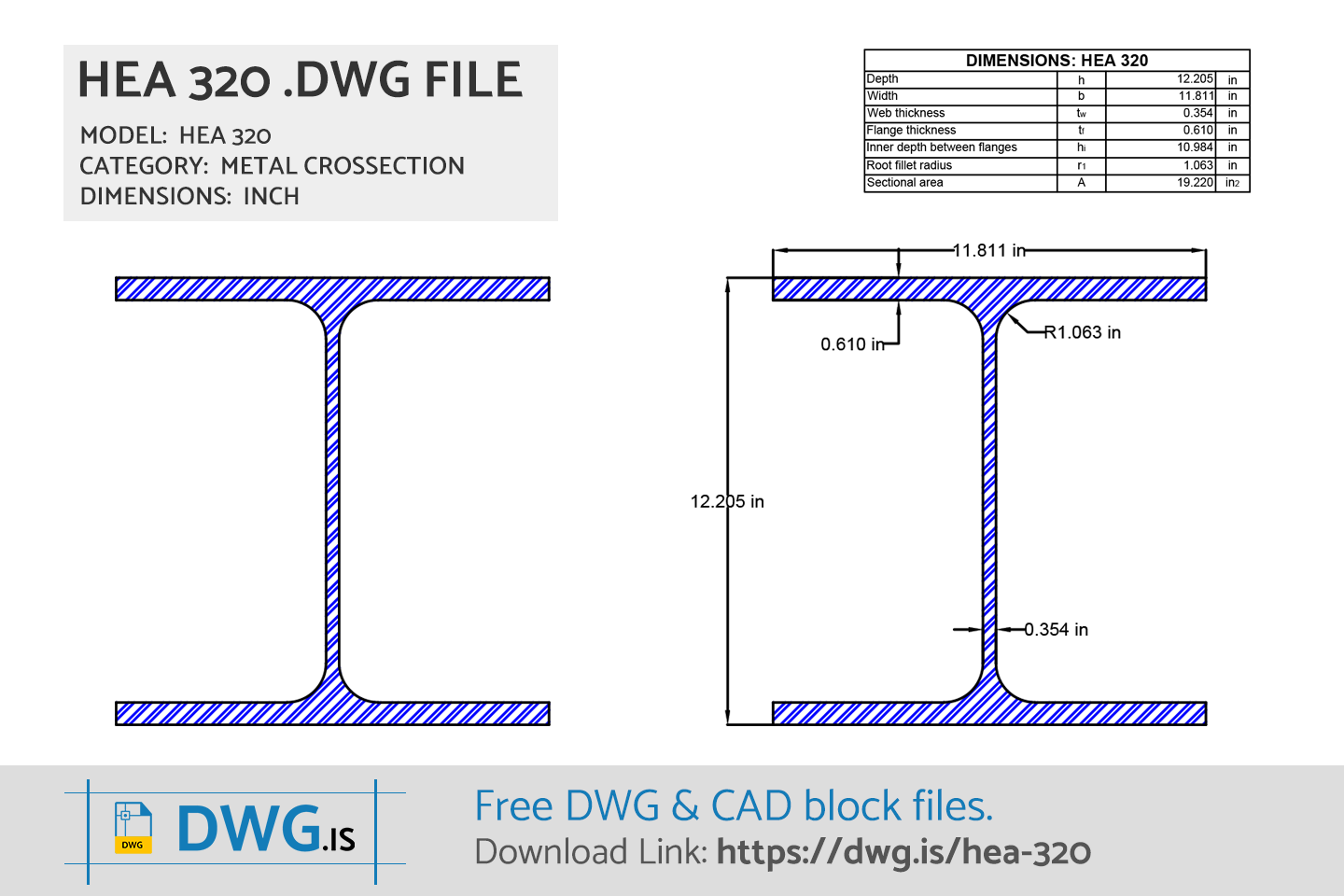

HEA 320 DWG file contains the European Standard Wide Flange H Beams of size HEA 320. The dimensions, specifications, and requirements are in accordance with the former standard Euronorm 53-62. This file includes the depth of 310 mm, width of 300 mm, web thickness of 9 mm, flange thickness of 15.5 mm, flange inner depth of 279 mm, root fillet radius of 27 mm, distance of 43 mm, and sectional area of 124 cm2. With this DWG file, it is easy to design and construct strong and durable structures that meet the specifications of the European Standard Wide Flange H Beams.
HEA 320 AutoCAD Block
HEA 320 Free CAD Block File Downloads
HEA 320 DWG File DownloadDWG DOWNLOAD ⇓
HEA 320 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 320 Dimensions
| HEA 320 Size | |
|---|---|
| Depth | 310.0 mm |
| Width | 300.0 mm |
| Web Thickness | 9.0 mm |
| Flange Thickness | 15.5 mm |
| Flange Inner Depth | 279.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 43.0 mm |
| Sectional Area | 124.0 cm2 |
HEA 320 FAQ
-
What are HEA 320 size?
HEA 320 has dimensions: Depth 310.0 mm, Width 300.0 mm, Web Thickness 9.0 mm, Flange Thickness 15.5 mm, Flange Inner Depth 279.0 mm, Root Fillet Radius 27.0 mm, Distance 43.0 mm, Sectional Area 124.0 cm2.
