UPN 140 Tapered Flange Channel Free DWG File is an essential structural component for any engineering project. It features a 140 mm depth, 60 mm width, 7 mm web thickness, 10 mm flange thickness, 10 mm root fillet radius, 5 mm toe radius, and 30 mm distance between flanges. This versatile design also offers a sectional area of 20.4 cm2.
It is strong and reliable, making it perfect for any application. The tapered flange provides extra support and stability. With its impressive design and sturdy construction, this UPN 140 Tapered Flange Channel Free DWG File will be a great addition to any project.

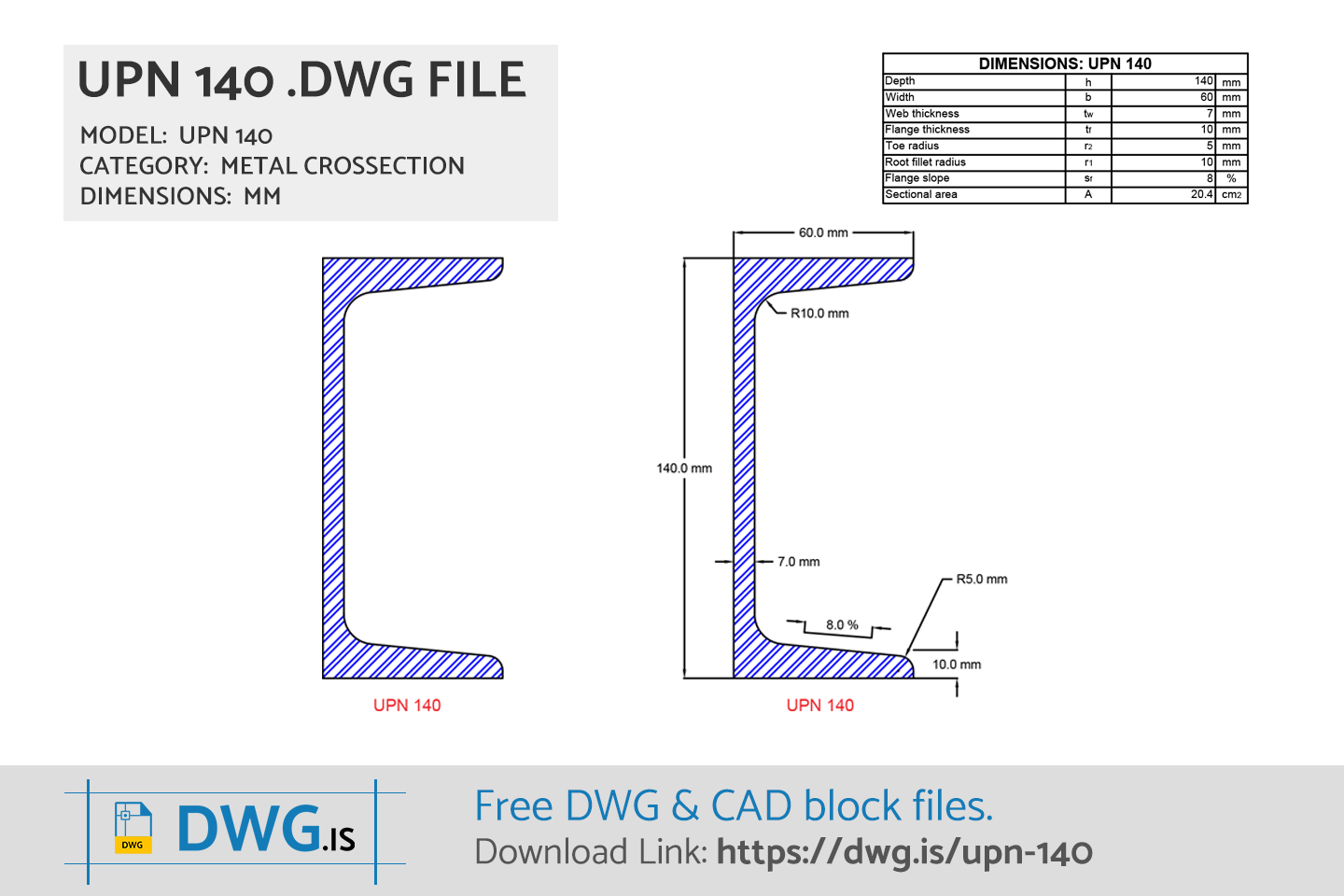

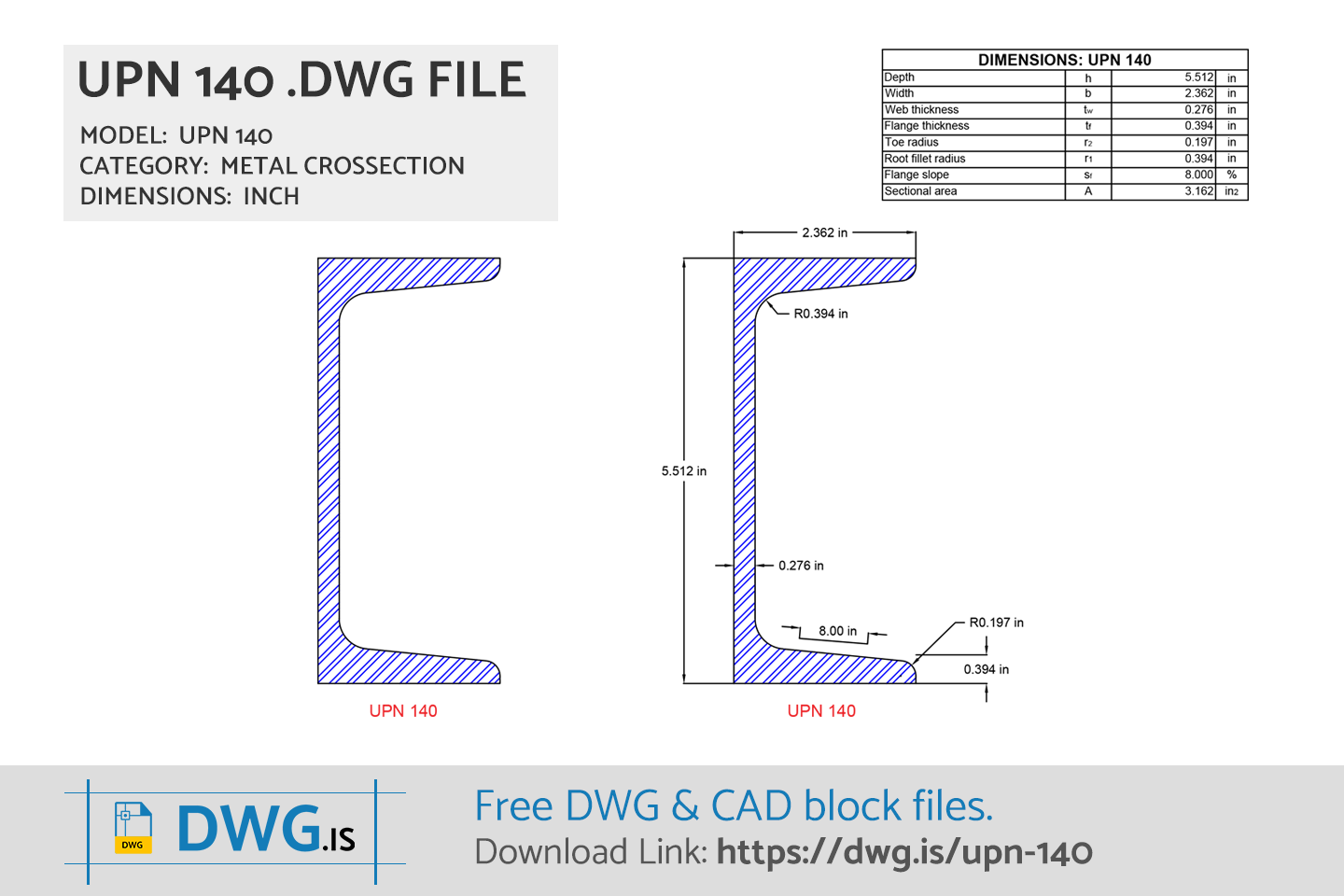

UPN 140 AutoCAD Block
UPN 140 Free CAD Block File Downloads
UPN 140 DWG File DownloadDWG DOWNLOAD ⇓
UPN 140 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 140 Dimensions
| UPN 140 Size | |
|---|---|
| Depth | 140.0 mm |
| Width | 60.0 mm |
| Web Thickness | 7.0 mm |
| Flange Thickness | 10.0 mm |
| Root Fillet Radius | 10.0 mm |
| Toe Radius | 5.0 mm |
| Distance | 30.0 mm |
| Sectional Area | 20.4 cm2 |
UPN 140 FAQ
-
What are UPN 140 size?
UPN 140 has dimensions: Depth 140.0 mm, Width 60.0 mm, Web Thickness 7.0 mm, Flange Thickness 10.0 mm, Root Fillet Radius 10.0 mm, Toe Radius 5.0 mm, Distance 30.0 mm, Sectional Area 20.4 cm2.
