HEB 1000 AutoCAD Block
HEB 1000 Free CAD Block File Downloads

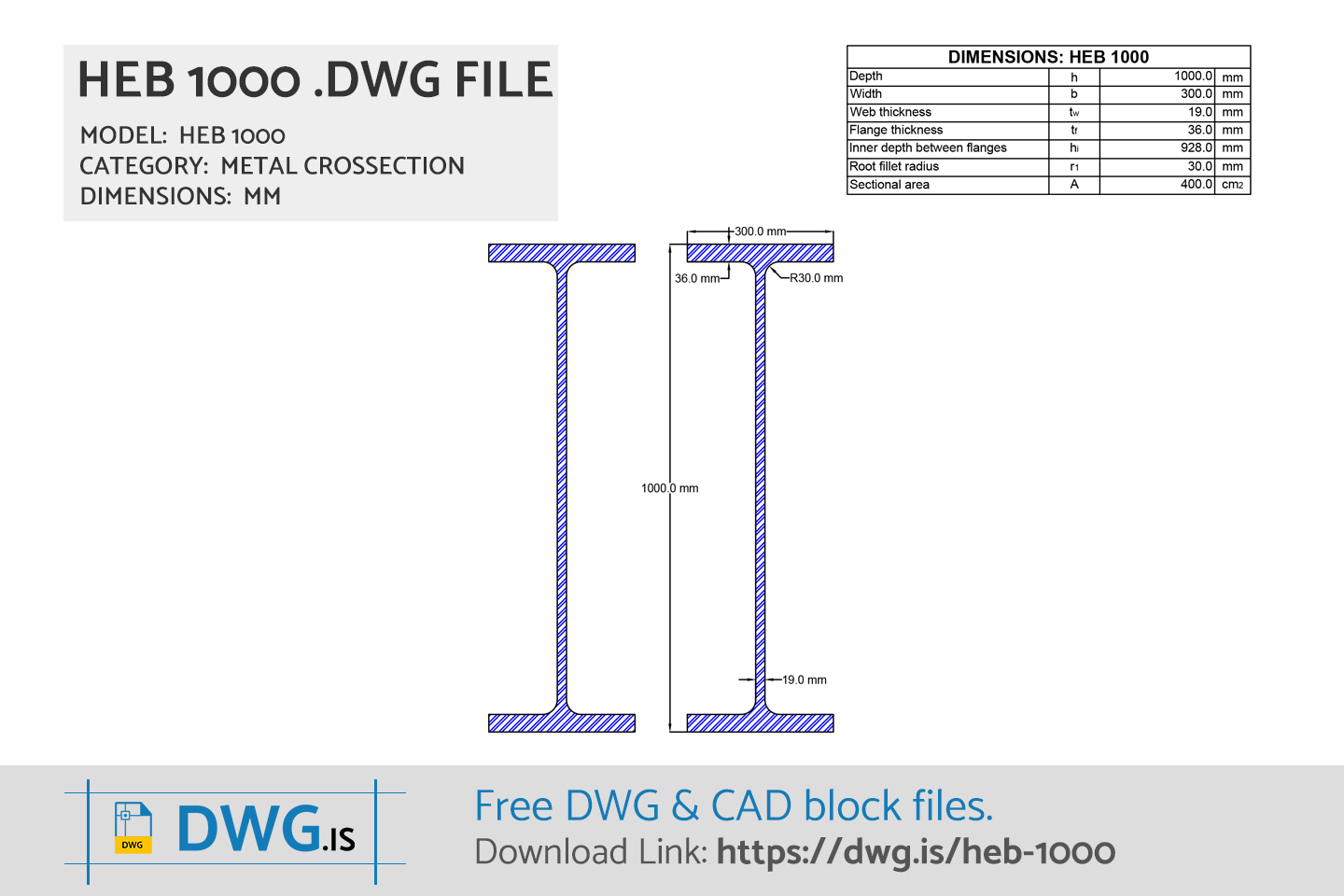

HEB 1000 DWG File DownloadDWG DOWNLOAD ⇓
HEB 1000 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 1000 Dimensions
| HEB 1000 Size | |
|---|---|
| Depth | 1000.0 mm |
| Width | 300.0 mm |
| Web Thickness | 19.0 mm |
| Flange Thickness | 36.0 mm |
| Flange Inner Depth | 928.0 mm |
| Root Fillet Radius | 30.0 mm |
| Distance | 868.0 mm |
| Sectional Area | 400.0 cm2 |
HEB 1000 FAQ
-
What are HEB 1000 size?
HEB 1000 has dimensions: Depth 1000.0 mm, Width 300.0 mm, Web Thickness 19.0 mm, Flange Thickness 36.0 mm, Flange Inner Depth 928.0 mm, Root Fillet Radius 30.0 mm, Distance 868.0 mm, Sectional Area 400.0 cm2.
