HEB 180 AutoCAD Block
HEB 180 Free CAD Block File Downloads
HEB 180 DWG File DownloadDWG DOWNLOAD ⇓

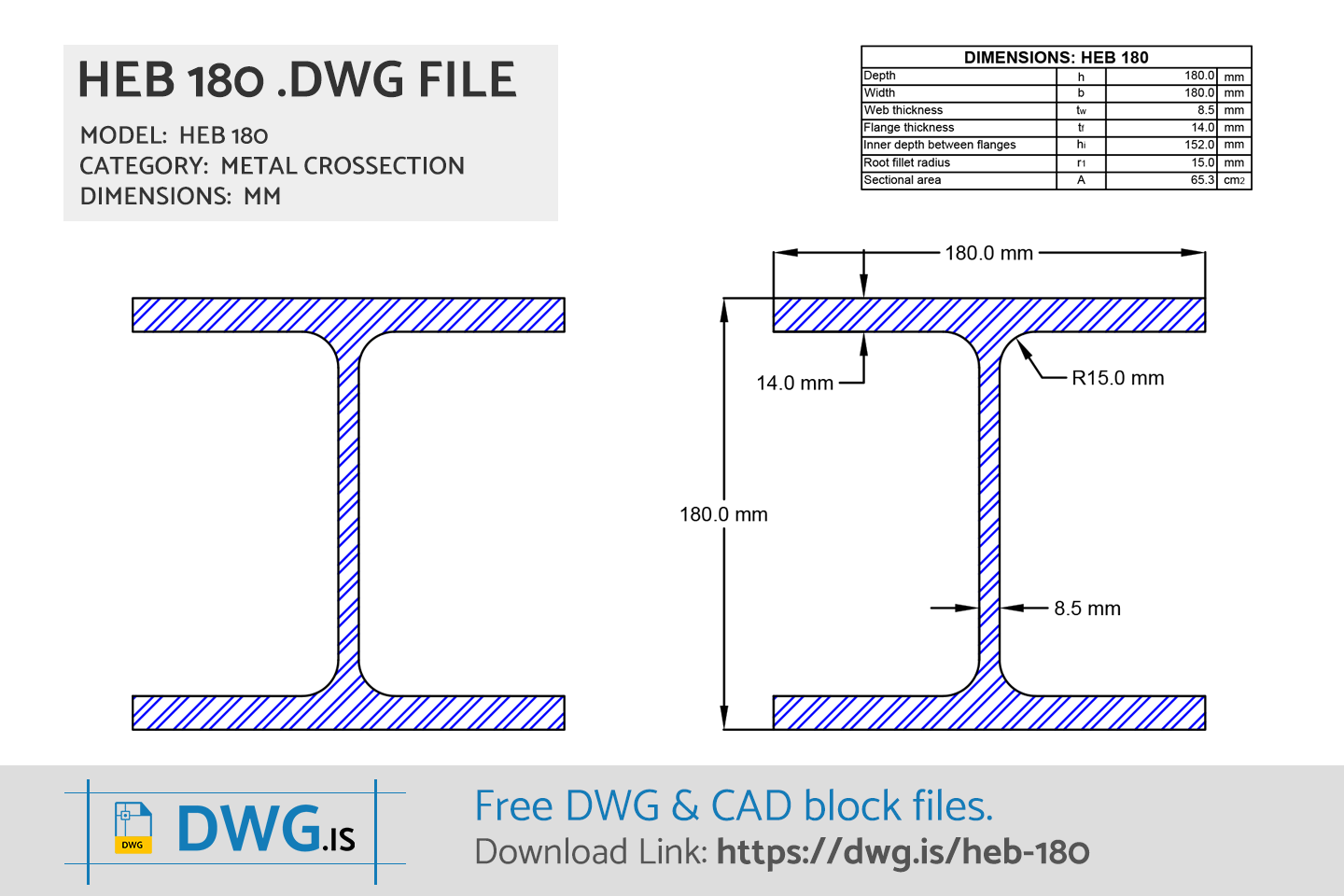

HEB 180 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 180 Dimensions
| HEB 180 Size | |
|---|---|
| Depth | 180.0 mm |
| Width | 180.0 mm |
| Web Thickness | 8.5 mm |
| Flange Thickness | 14.0 mm |
| Flange Inner Depth | 152.0 mm |
| Root Fillet Radius | 15.0 mm |
| Distance | 122.0 mm |
| Sectional Area | 65.3 cm2 |
HEB 180 FAQ
-
What are HEB 180 size?
HEB 180 has dimensions: Depth 180.0 mm, Width 180.0 mm, Web Thickness 8.5 mm, Flange Thickness 14.0 mm, Flange Inner Depth 152.0 mm, Root Fillet Radius 15.0 mm, Distance 122.0 mm, Sectional Area 65.3 cm2.
