HEB 900 AutoCAD Block
HEB 900 Free CAD Block File Downloads

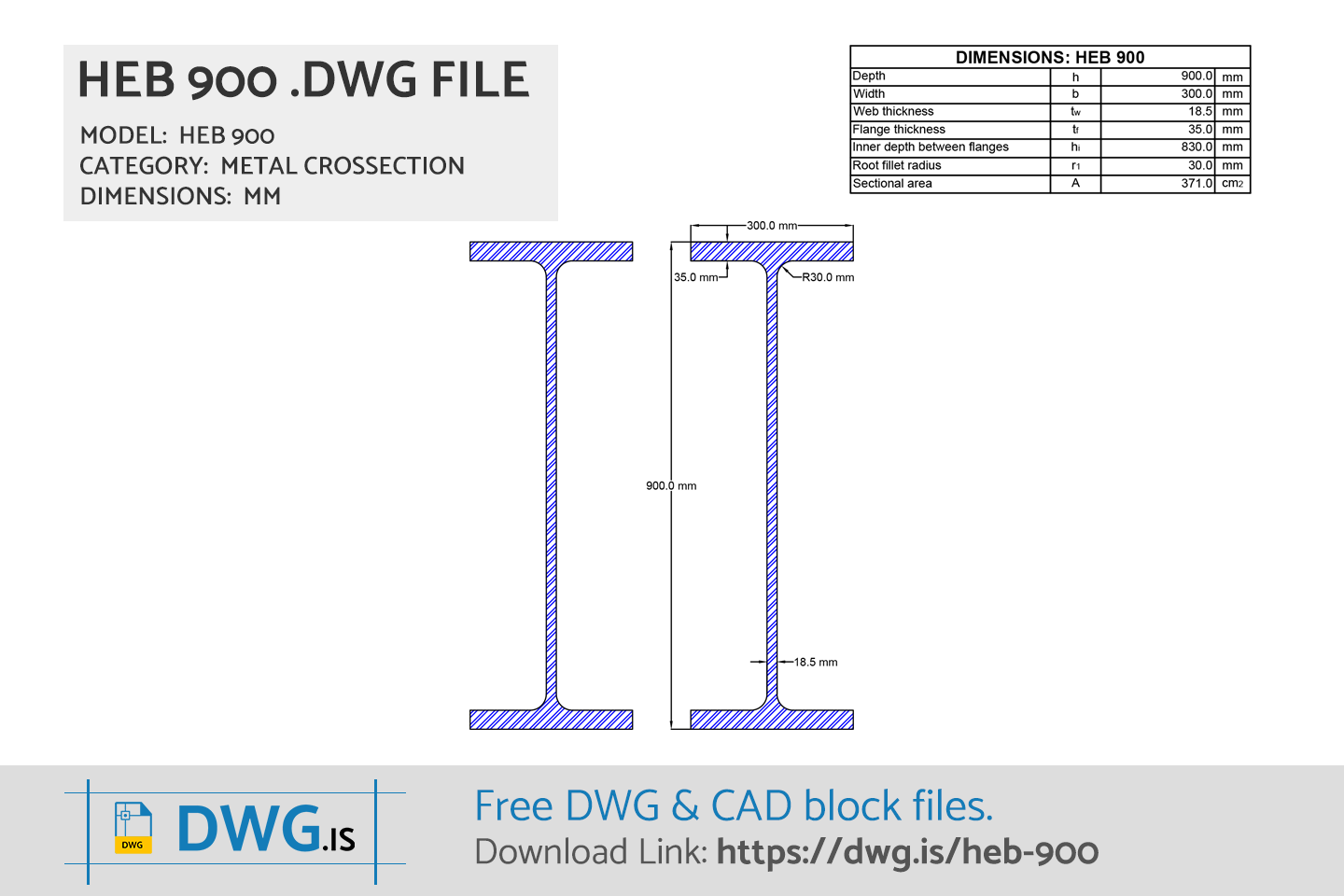

HEB 900 DWG File DownloadDWG DOWNLOAD ⇓
HEB 900 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 900 Dimensions
| HEB 900 Size | |
|---|---|
| Depth | 900.0 mm |
| Width | 300.0 mm |
| Web Thickness | 18.5 mm |
| Flange Thickness | 35.0 mm |
| Flange Inner Depth | 830.0 mm |
| Root Fillet Radius | 30.0 mm |
| Distance | 770.0 mm |
| Sectional Area | 371.3 cm2 |
HEB 900 FAQ
-
What are HEB 900 size?
HEB 900 has dimensions: Depth 900.0 mm, Width 300.0 mm, Web Thickness 18.5 mm, Flange Thickness 35.0 mm, Flange Inner Depth 830.0 mm, Root Fillet Radius 30.0 mm, Distance 770.0 mm, Sectional Area 371.3 cm2.
