IPE 450 Steel beam Cross-section DWG File contains the detailed dimensions of an IPE 450 steel beam, with a depth of 450mm, width of 190mm and a web thickness of 9.4mm. The flange thickness of the beam is 14.6mm, with an inner depth between flanges of 420.8mm. There is also a root fillet radius of 21mm and a distance of 36mm. The overall sectional area of this beam is 98.82 cm2.
This particular steel beam is compliant with Euronorm 19-57 and DIN 1025-5 standards. It is an essential item for various construction and engineering projects and can also be used for other applications.

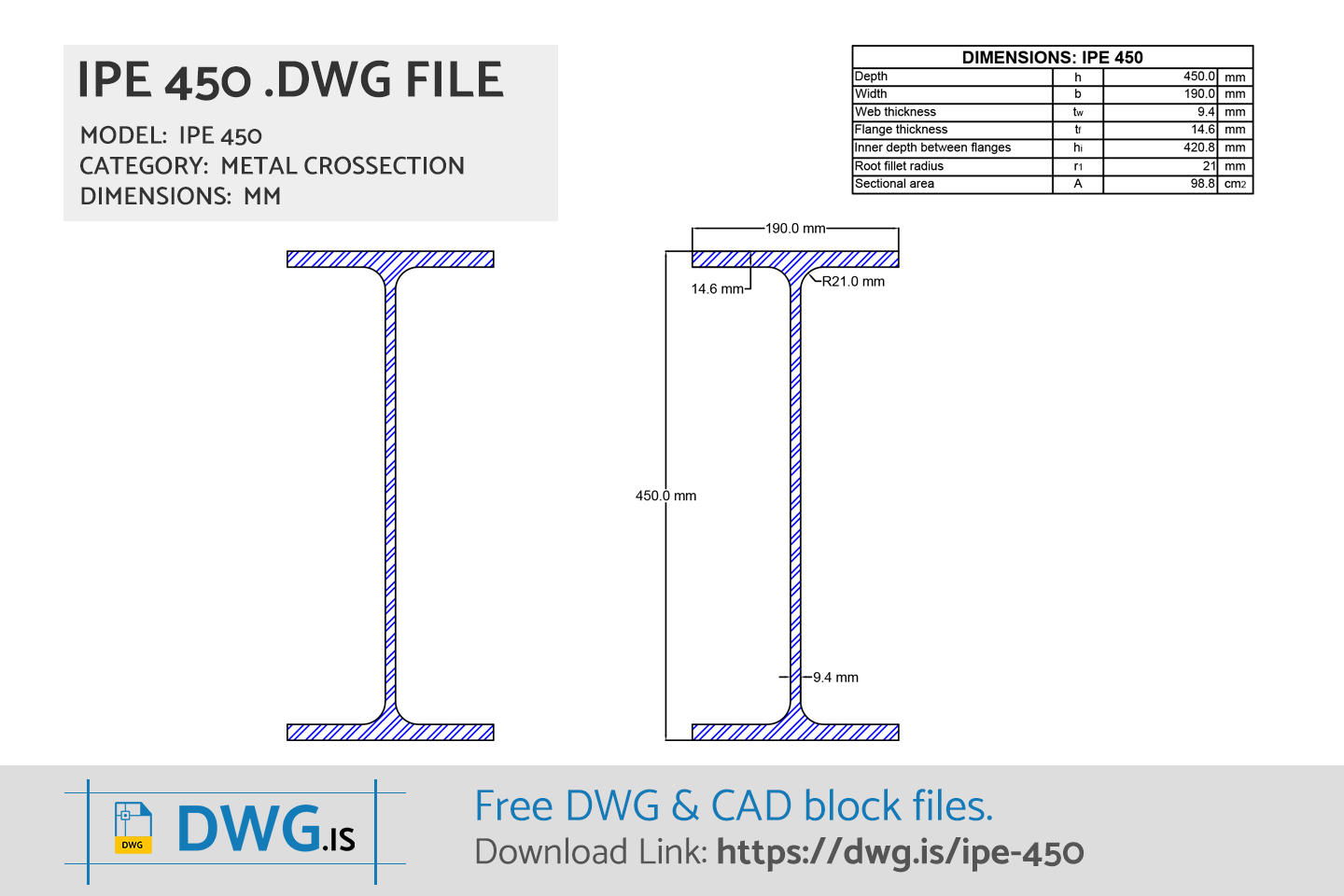

IPE 450 AutoCAD Block

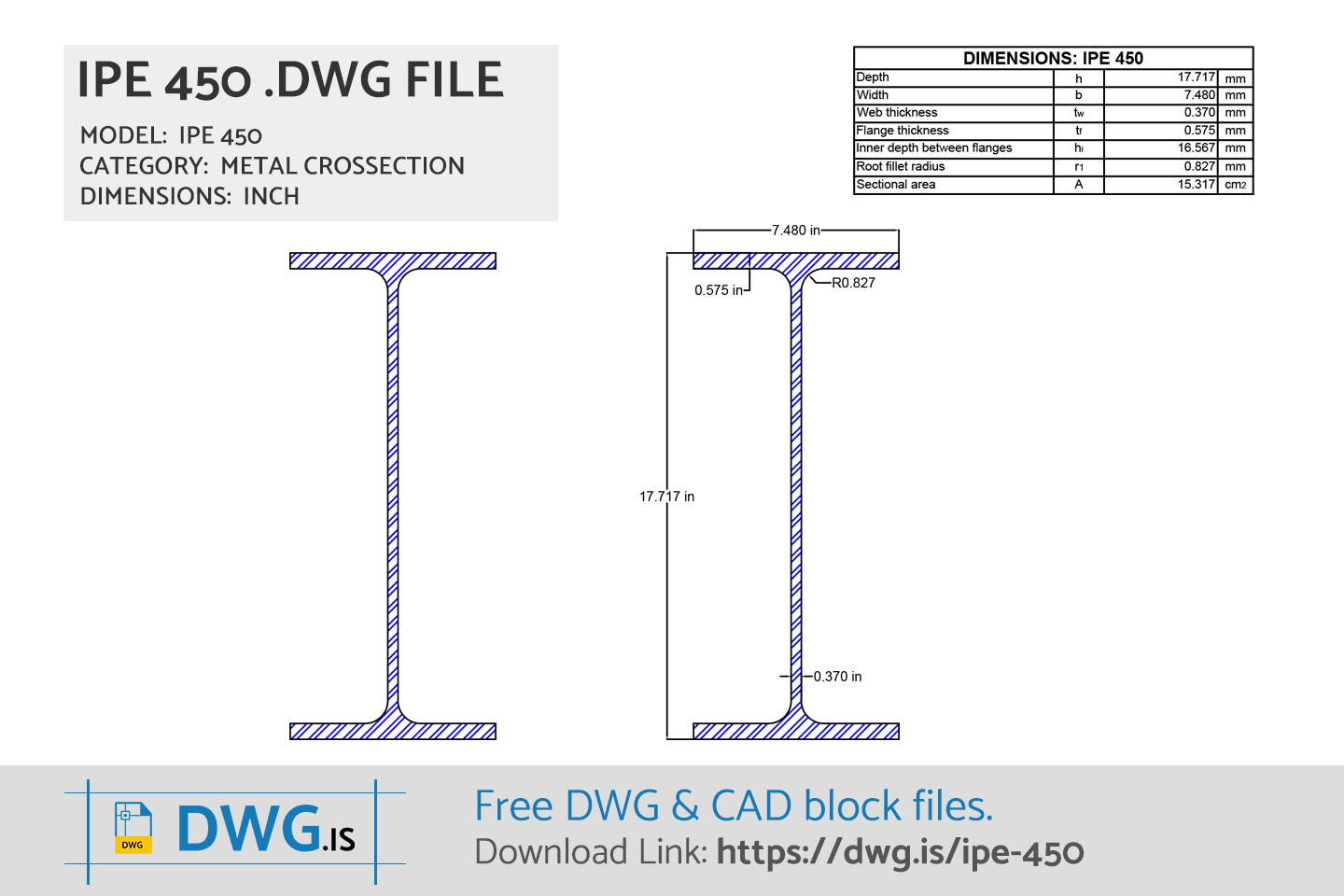

IPE 450 Free CAD Block File Downloads
IPE 450 DWG File DownloadDWG DOWNLOAD ⇓
IPE 450 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 450 Dimensions
| IPE 450 Size | |
|---|---|
| Depth | 450.0 mm |
| Width | 190.0 mm |
| Web Thickness | 9.4 mm |
| Flange Thickness | 14.6 mm |
| Inner depth between flanges | 420.8 mm |
| Root Fillet Radius | 21.0 mm |
| Distance | 36.0 mm |
| Sectional Area | 98.82 cm2 |
IPE 450 FAQ
-
What are IPE 450 size?
IPE 450 has dimensions: Depth 450.0 mm, Width 190.0 mm, Web Thickness 9.4 mm, Flange Thickness 14.6 mm, Inner depth between flanges 420.8 mm, Root Fillet Radius 21.0 mm, Distance 36.0 mm, Sectional Area 98.82 cm2.
