HEB 600 AutoCAD Block
HEB 600 Free CAD Block File Downloads

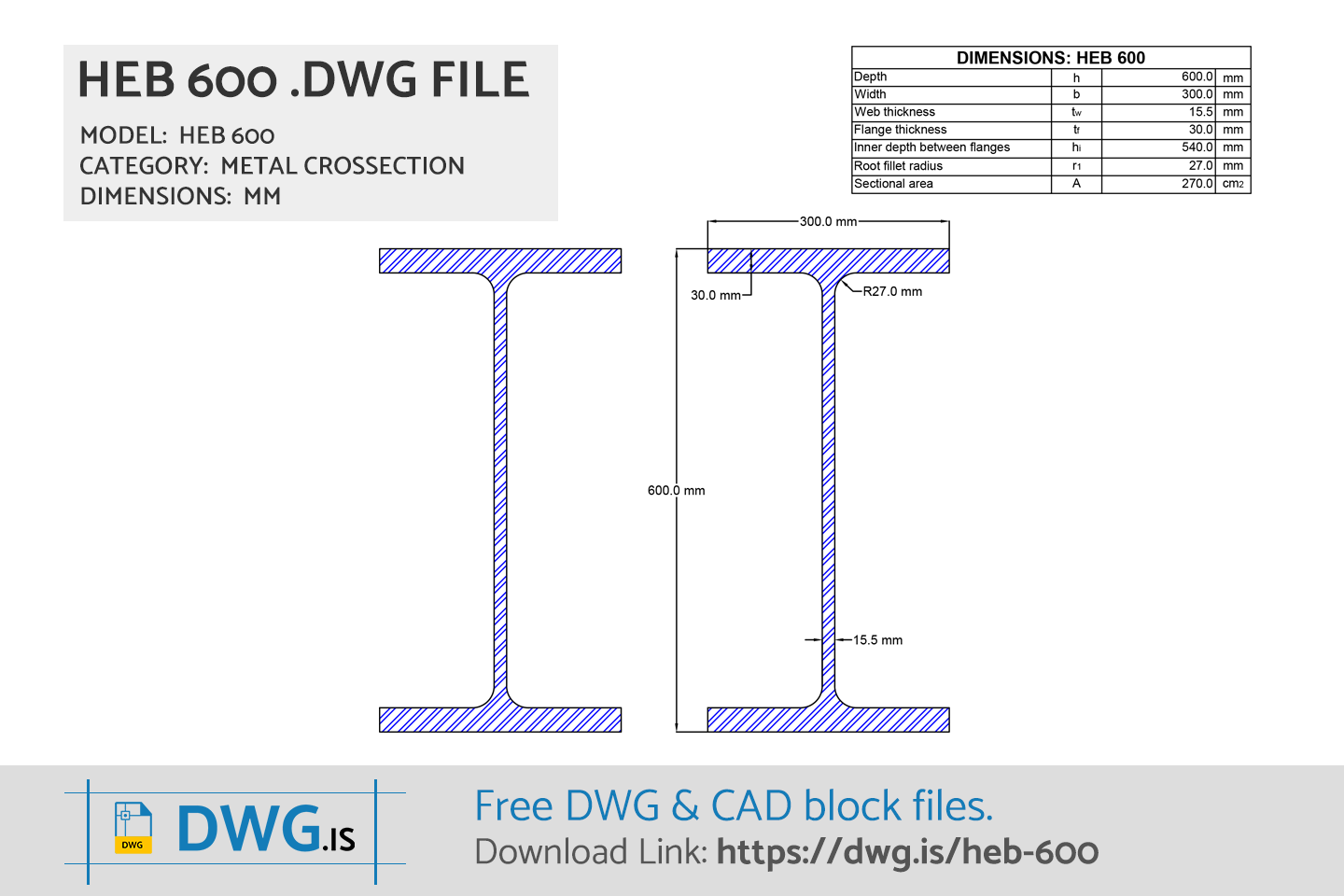

HEB 600 DWG File DownloadDWG DOWNLOAD ⇓
HEB 600 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 600 Dimensions
| HEB 600 Size | |
|---|---|
| Depth | 600.0 mm |
| Width | 300.0 mm |
| Web Thickness | 15.5 mm |
| Flange Thickness | 30.0 mm |
| Flange Inner Depth | 540.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 486.0 mm |
| Sectional Area | 270.0 cm2 |
HEB 600 FAQ
-
What are HEB 600 size?
HEB 600 has dimensions: Depth 600.0 mm, Width 300.0 mm, Web Thickness 15.5 mm, Flange Thickness 30.0 mm, Flange Inner Depth 540.0 mm, Root Fillet Radius 27.0 mm, Distance 486.0 mm, Sectional Area 270.0 cm2.
