HEB 100 AutoCAD Block
HEB 100 Free CAD Block File Downloads
HEB 100 DWG File DownloadDWG DOWNLOAD ⇓

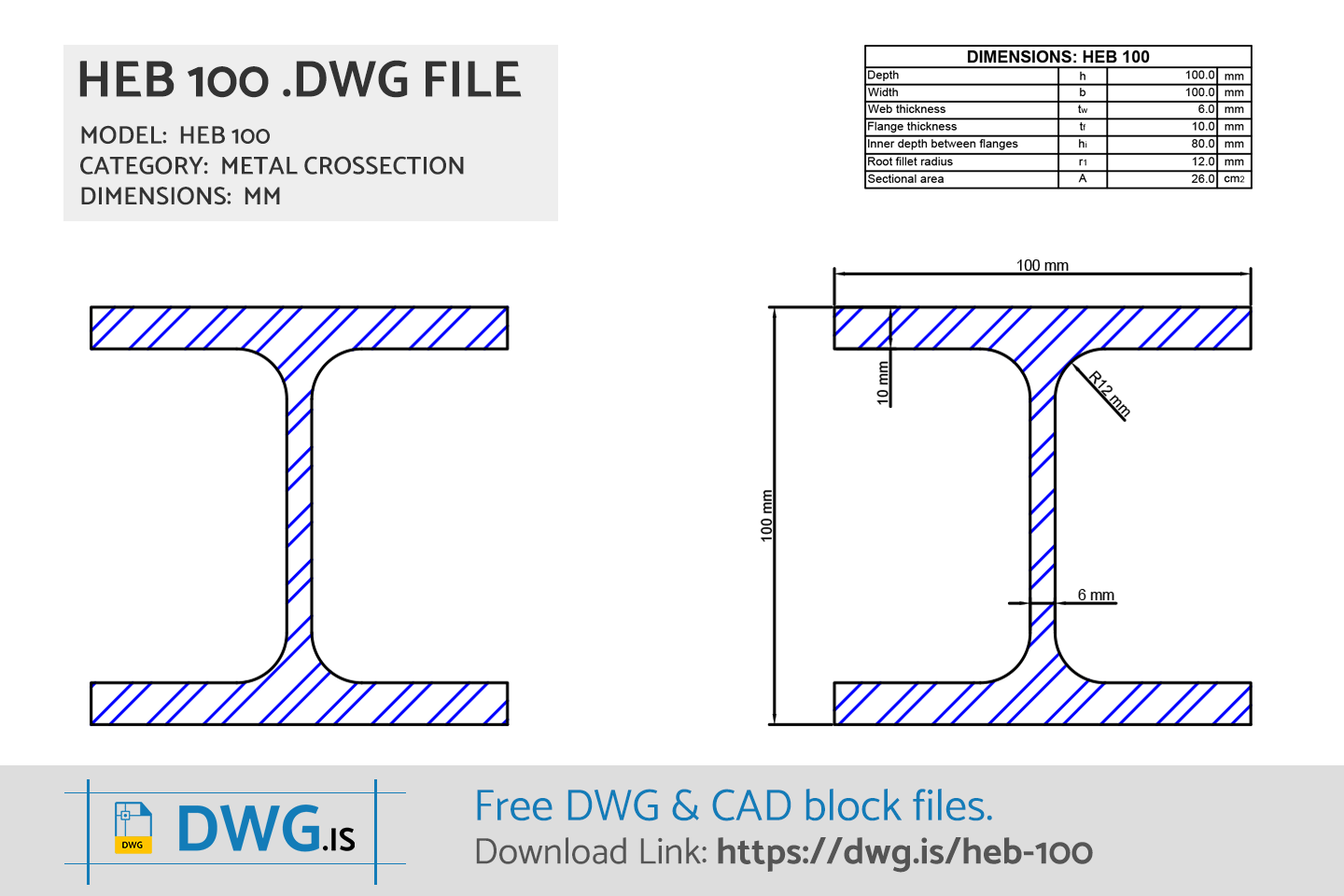

HEB 100 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 100 Dimensions
| HEB 100 Size | |
|---|---|
| Depth | 100.0 mm |
| Width | 100.0 mm |
| Web Thickness | 6.0 mm |
| Flange Thickness | 10.0 mm |
| Flange Inner Depth | 80.0 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 56.0 mm |
| Sectional Area | 26.0 cm2 |
HEB 100 FAQ
-
What are HEB 100 size?
HEB 100 has dimensions: Depth 100.0 mm, Width 100.0 mm, Web Thickness 6.0 mm, Flange Thickness 10.0 mm, Flange Inner Depth 80.0 mm, Root Fillet Radius 12.0 mm, Distance 56.0 mm, Sectional Area 26.0 cm2.
