HEB 650 AutoCAD Block
HEB 650 Free CAD Block File Downloads
HEB 650 DWG File DownloadDWG DOWNLOAD ⇓

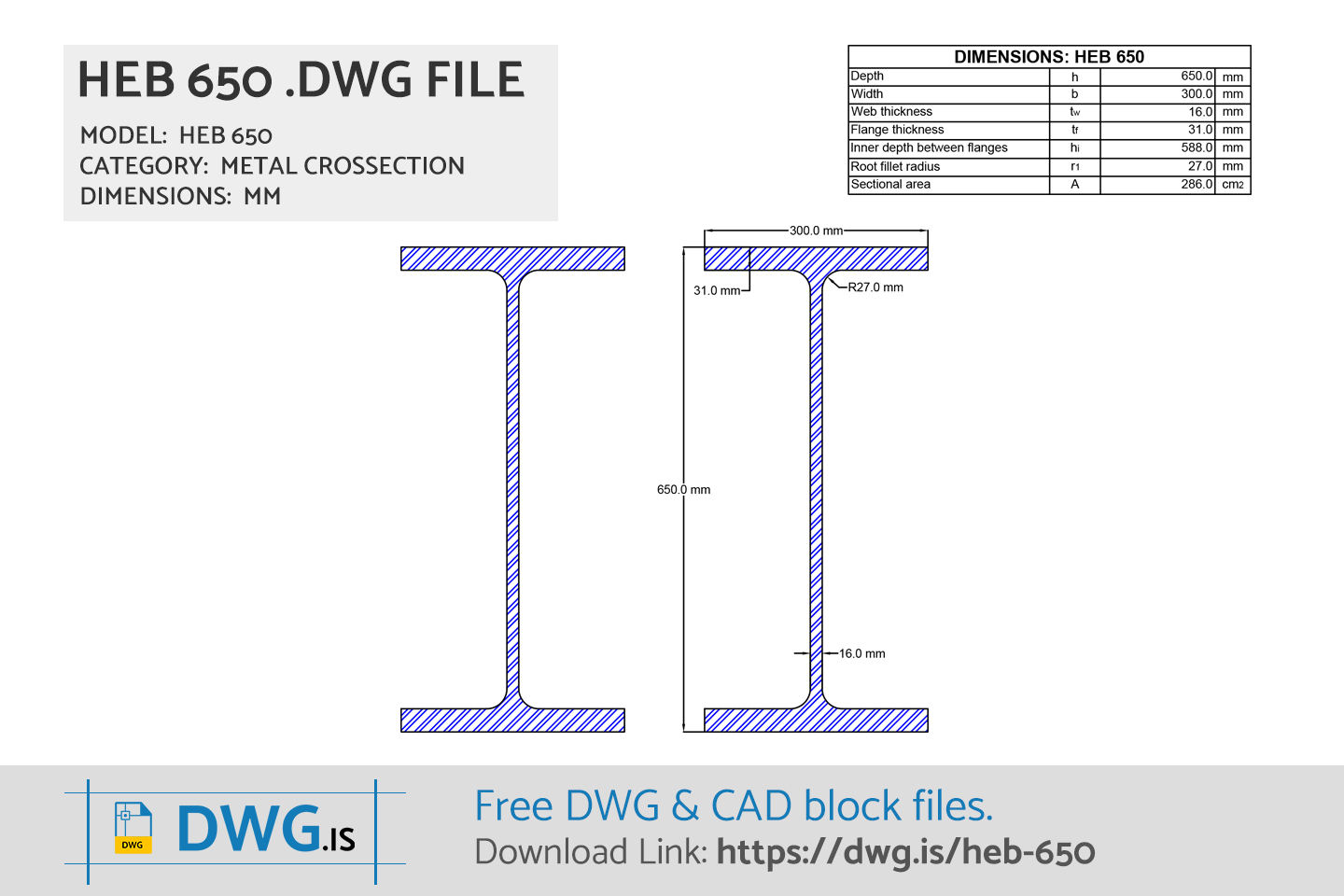

HEB 650 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 650 Dimensions
| HEB 650 Size | |
|---|---|
| Depth | 650.0 mm |
| Width | 300.0 mm |
| Web Thickness | 16.0 mm |
| Flange Thickness | 31.0 mm |
| Flange Inner Depth | 588.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 534.0 mm |
| Sectional Area | 286.3 cm2 |
HEB 650 FAQ
-
What are HEB 650 size?
HEB 650 has dimensions: Depth 650.0 mm, Width 300.0 mm, Web Thickness 16.0 mm, Flange Thickness 31.0 mm, Flange Inner Depth 588.0 mm, Root Fillet Radius 27.0 mm, Distance 534.0 mm, Sectional Area 286.3 cm2.
