HEA 300 DWG file contains detailed specifications of a European Standard Wide Flange H Beam with a depth of 290 mm, a width of 300 mm, a web thickness of 8.5 mm, a flange thickness of 14 mm, a flange inner depth of 262 mm, a root fillet radius of 27 mm, a distance of 41 mm and a sectional area of 113 cm2. This product is in accordance with the former standard Euronorm 53-62. This file also includes detailed drawings of the beam and is ready to use for engineering projects. It is a high-quality product that is reliable and highly durable. The beam is perfect for a variety of applications and offers superior strength and stability.
HEA 300 AutoCAD Block
HEA 300 Free CAD Block File Downloads

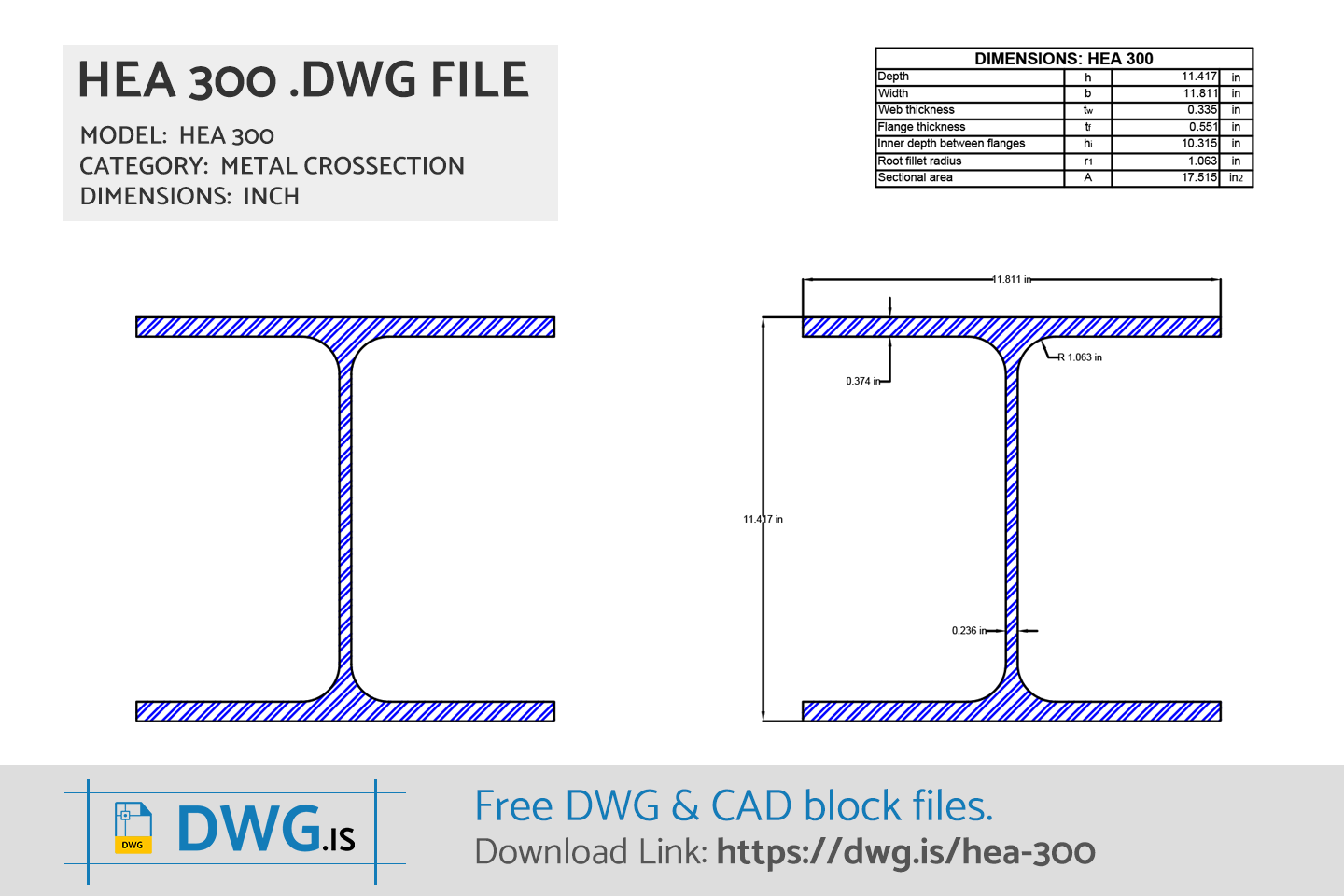

HEA 300 DWG File DownloadDWG DOWNLOAD ⇓

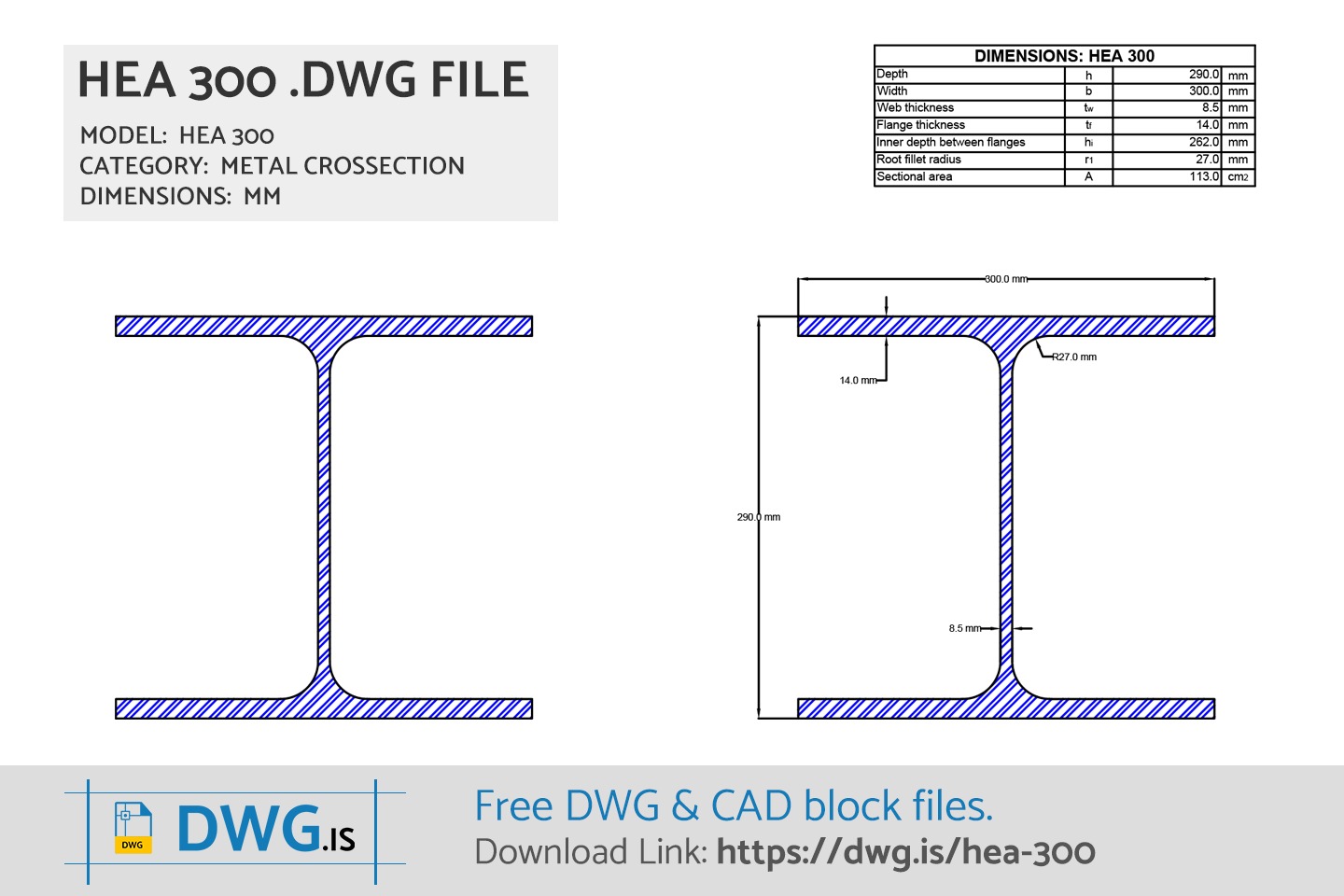

HEA 300 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 300 Dimensions
| HEA 300 Size | |
|---|---|
| Depth | 290.0 mm |
| Width | 300.0 mm |
| Web Thickness | 8.5 mm |
| Flange Thickness | 14.0 mm |
| Flange Inner Depth | 262.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 41.0 mm |
| Sectional Area | 113.0 cm2 |
HEA 300 FAQ
-
What are HEA 300 size?
HEA 300 has dimensions: Depth 290.0 mm, Width 300.0 mm, Web Thickness 8.5 mm, Flange Thickness 14.0 mm, Flange Inner Depth 262.0 mm, Root Fillet Radius 27.0 mm, Distance 41.0 mm, Sectional Area 113.0 cm2.
