HEA 180 DWG File for HEA 180 European Standard Wide Flange H Beams is a detailed drawing of the beams in accordance with former standard Euronorm 53-62. It features a depth of 171mm, a width of 180mm, and a web thickness of 6mm. The flange thickness is 9.5mm, the flange inner depth is 152mm, the root fillet radius is 15mm, and the distance is 25mm. The sectional area of the beams is 45.3cm2. The DWG File is suitable for a variety of structural applications, including bridges, buildings, and other general purposes. It is a highly durable and reliable design that is sure to provide years of reliable performance.
HEA 180 AutoCAD Block
HEA 180 Free CAD Block File Downloads
HEA 180 DWG File DownloadDWG DOWNLOAD ⇓

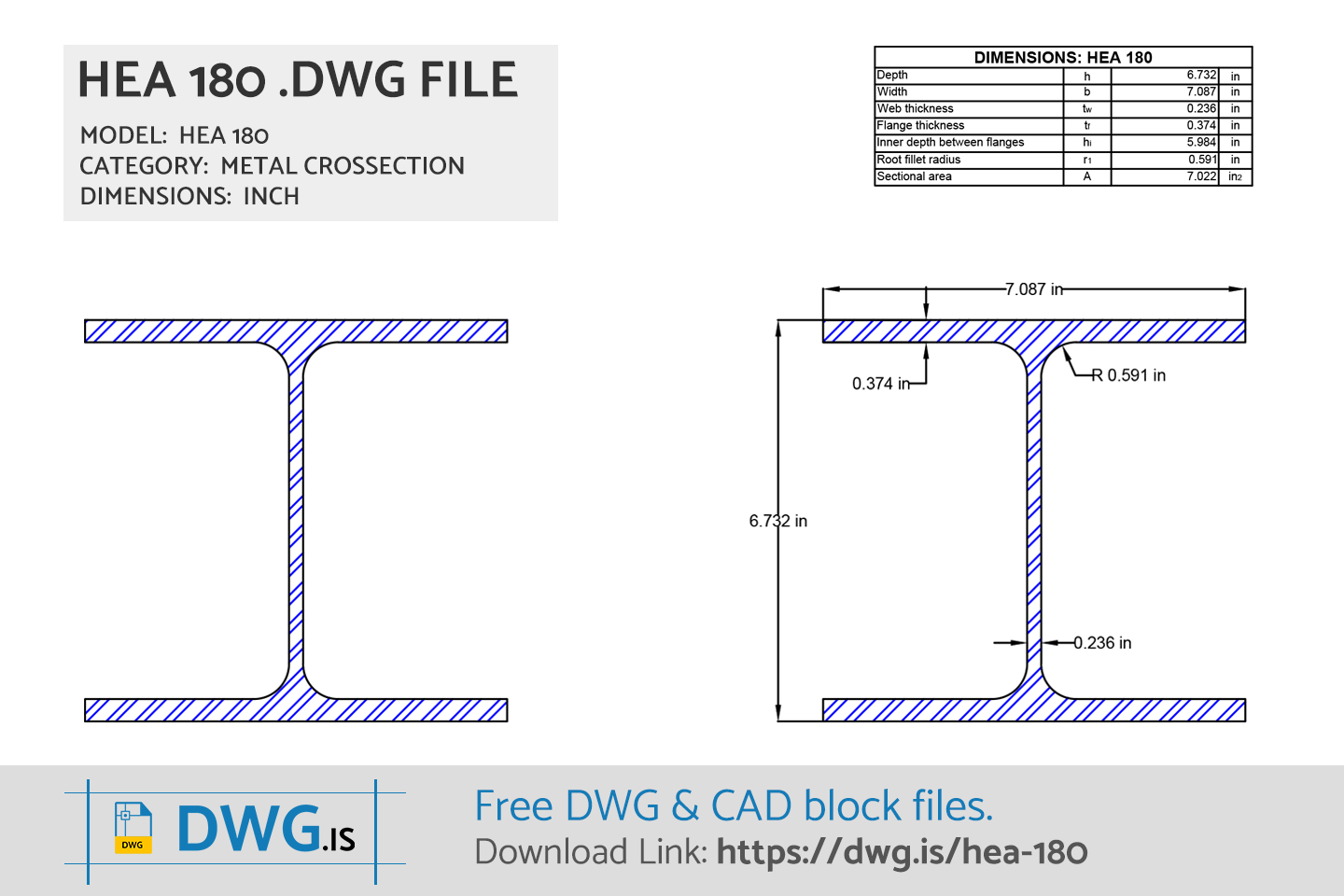

HEA 180 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓

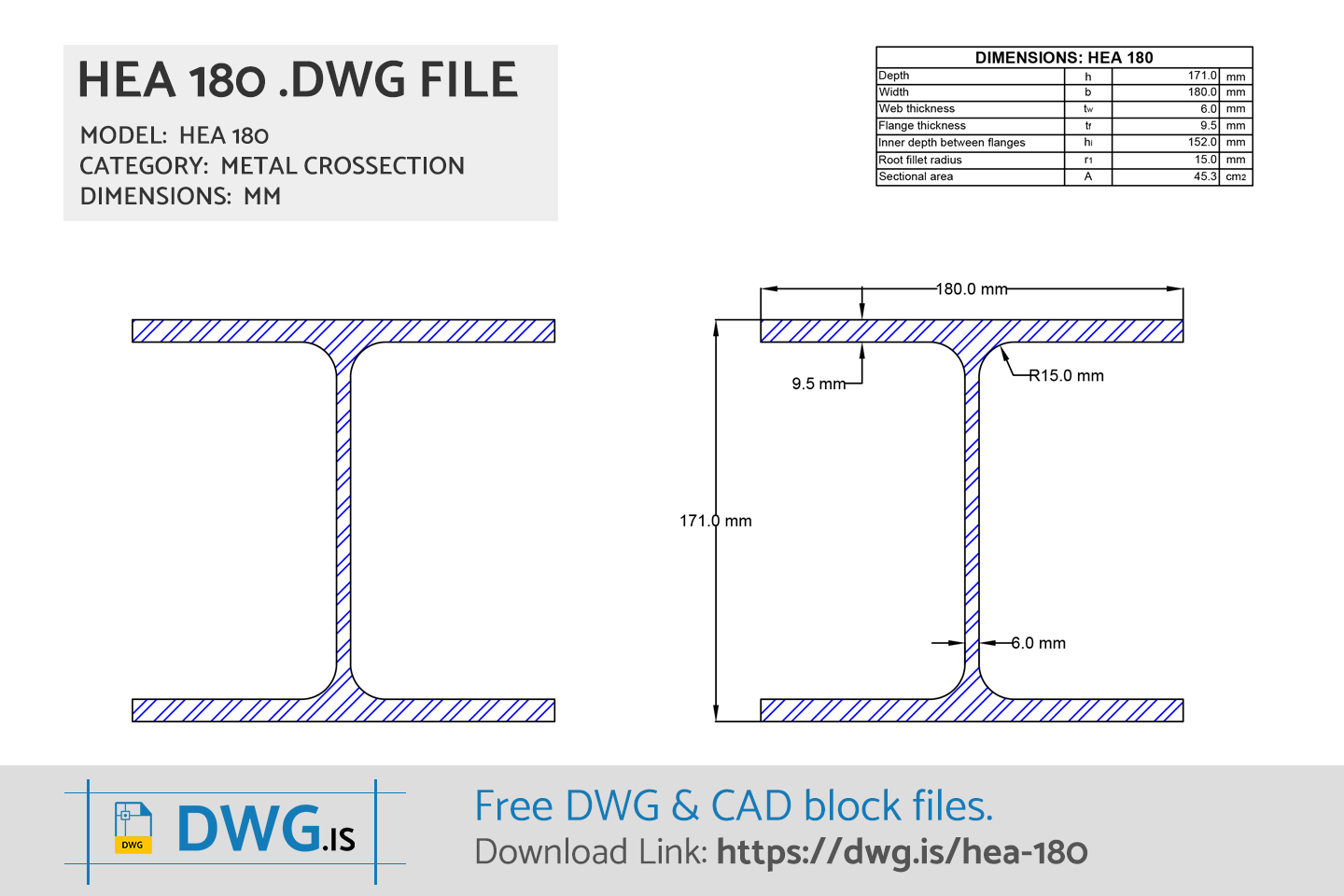

WITH DIMENSION (mm)
HEA 180 Dimensions
| HEA 180 Size | |
|---|---|
| Depth | 171.0 mm |
| Width | 180.0 mm |
| Web Thickness | 6.0 mm |
| Flange Thickness | 9.5 mm |
| Flange Inner Depth | 152.0 mm |
| Root Fillet Radius | 15.0 mm |
| Distance | 25.0 mm |
| Sectional Area | 45.3 cm2 |
HEA 180 FAQ
-
What are HEA 180 size?
HEA 180 has dimensions: Depth 171.0 mm, Width 180.0 mm, Web Thickness 6.0 mm, Flange Thickness 9.5 mm, Flange Inner Depth 152.0 mm, Root Fillet Radius 15.0 mm, Distance 25.0 mm, Sectional Area 45.3 cm2.
