This UPN 65 Tapered Flange Channel Cross-section is an AutoCAD DWG file that is ready to be used in a variety of projects. It has a depth of 65 mm, a width of 42 mm, a web thickness of 5.5 mm, a flange thickness of 7.5 mm and a root fillet radius of 7.5 mm. The toe radius is 4 mm and the distance between the flanges is 21 mm. It has a sectional area of 9 cm2
This DWG file can be used in both residential and commercial projects to provide a safe and secure structure for the construction. It is easy to install and offers great stability and strength. This UPN 65 Tapered Flange Channel Cross-section DWG file is a great addition to any project.

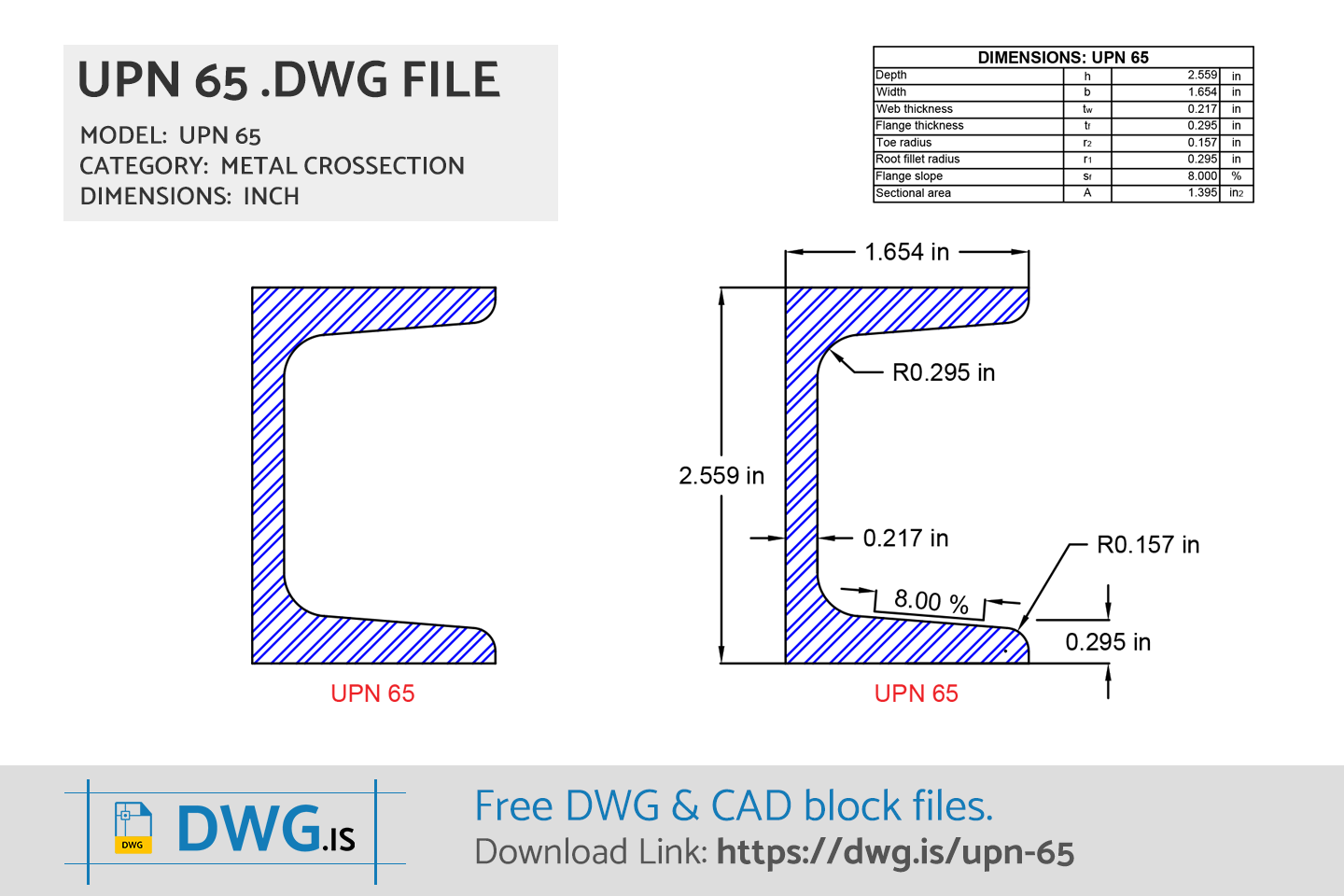

UPN 65 AutoCAD Block
UPN 65 Free CAD Block File Downloads
UPN 65 DWG File DownloadDWG DOWNLOAD ⇓

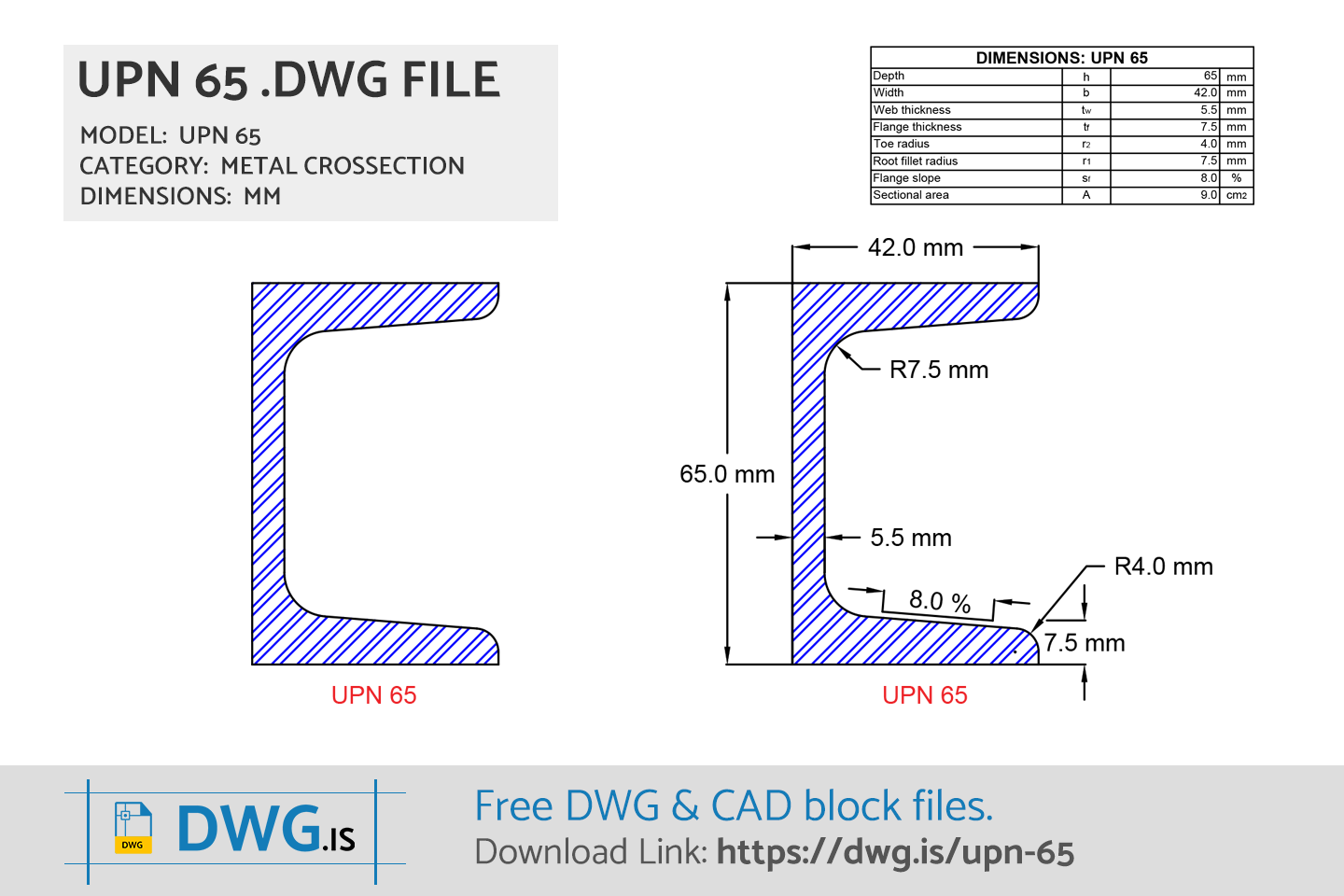

UPN 65 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 65 Dimensions
| UPN 65 Size | |
|---|---|
| Depth | 65.0 mm |
| Width | 42.0 mm |
| Web Thickness | 5.5 mm |
| Flange Thickness | 7.5 mm |
| Root Fillet Radius | 7.5 mm |
| Toe Radius | 4.0 mm |
| Distance | 21.0 mm |
| Sectional Area | 9.0 cm2 |
UPN 65 FAQ
-
What are UPN 65 size?
UPN 65 has dimensions: Depth 65.0 mm, Width 42.0 mm, Web Thickness 5.5 mm, Flange Thickness 7.5 mm, Root Fillet Radius 7.5 mm, Toe Radius 4.0 mm, Distance 21.0 mm, Sectional Area 9.0 cm2.
