HEB 450 AutoCAD Block
HEB 450 Free CAD Block File Downloads
HEB 450 DWG File DownloadDWG DOWNLOAD ⇓

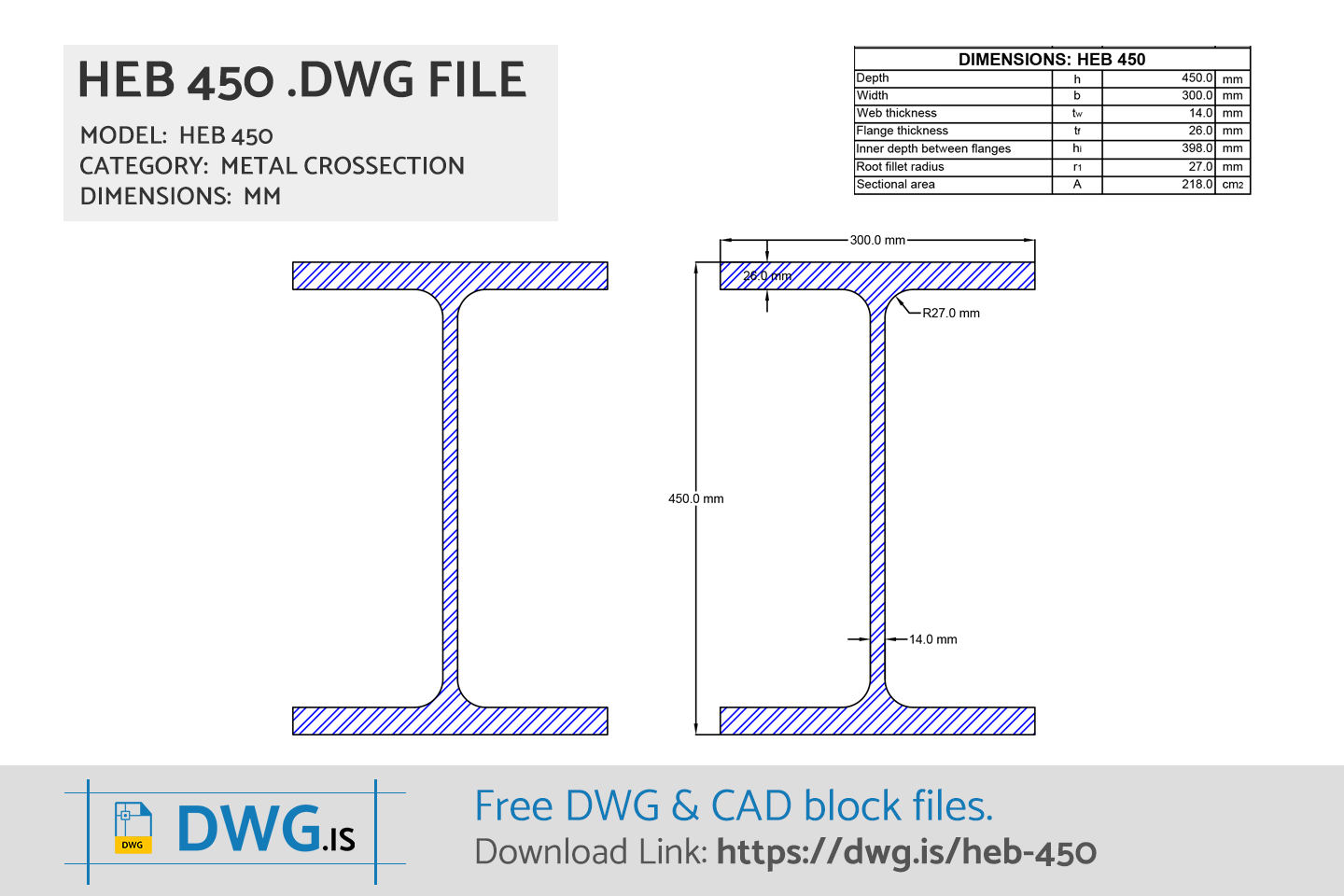

HEB 450 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 450 Dimensions
| HEB 450 Size | |
|---|---|
| Depth | 450.0 mm |
| Width | 300.0 mm |
| Web Thickness | 14.0 mm |
| Flange Thickness | 26.0 mm |
| Flange Inner Depth | 398.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 344.0 mm |
| Sectional Area | 218.0 cm2 |
HEB 450 FAQ
-
What are HEB 450 size?
HEB 450 has dimensions: Depth 450.0 mm, Width 300.0 mm, Web Thickness 14.0 mm, Flange Thickness 26.0 mm, Flange Inner Depth 398.0 mm, Root Fillet Radius 27.0 mm, Distance 344.0 mm, Sectional Area 218.0 cm2.
