HEB 200 AutoCAD Block
HEB 200 Free CAD Block File Downloads
HEB 200 DWG File DownloadDWG DOWNLOAD ⇓

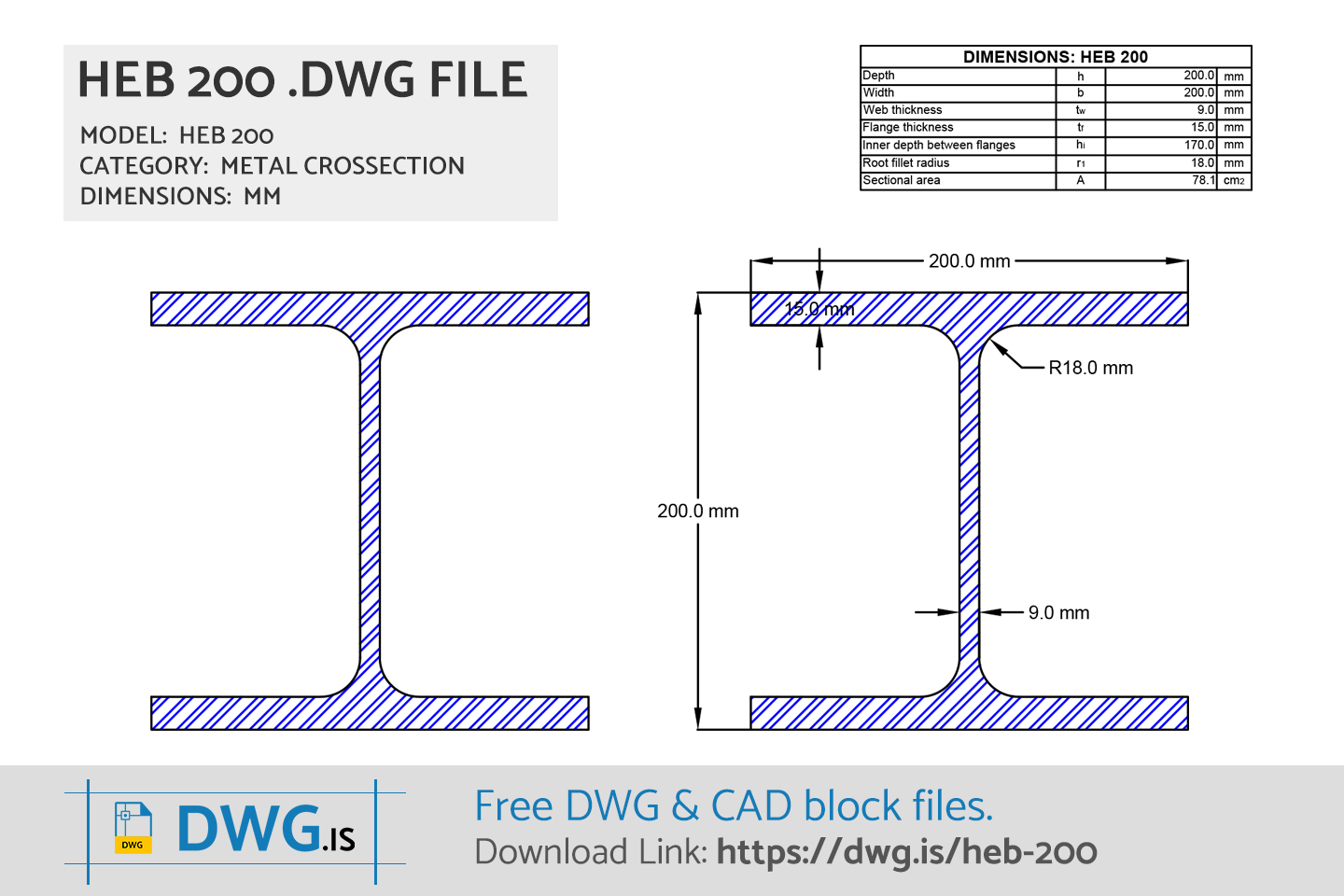

HEB 200 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 200 Dimensions
| HEB 200 Size | |
|---|---|
| Depth | 200.0 mm |
| Width | 200.0 mm |
| Web Thickness | 9.0 mm |
| Flange Thickness | 15.0 mm |
| Flange Inner Depth | 170.0 mm |
| Root Fillet Radius | 18.0 mm |
| Distance | 134.0 mm |
| Sectional Area | 78.1 cm2 |
HEB 200 FAQ
-
What are HEB 200 size?
HEB 200 has dimensions: Depth 200.0 mm, Width 200.0 mm, Web Thickness 9.0 mm, Flange Thickness 15.0 mm, Flange Inner Depth 170.0 mm, Root Fillet Radius 18.0 mm, Distance 134.0 mm, Sectional Area 78.1 cm2.
