IPE 240 Steel Beam Cross-section Free DWG File has been designed to the highest standards in accordance with the Euronorm 19-57 and DIN 1025-5 standards. It has a depth of 240 mm and a width of 120 mm, with a web thickness of 6.2 mm and a flange thickness of 9.8 mm.
The inner depth between flanges is 220.4 mm and the root fillet radius is 15 mm, with a distance of 25 mm. The sectional area of the profile is 39.12 cm2. It is suitable for a variety of applications and has been designed to provide strength and stability. This high quality DWG file is free and ready to use.

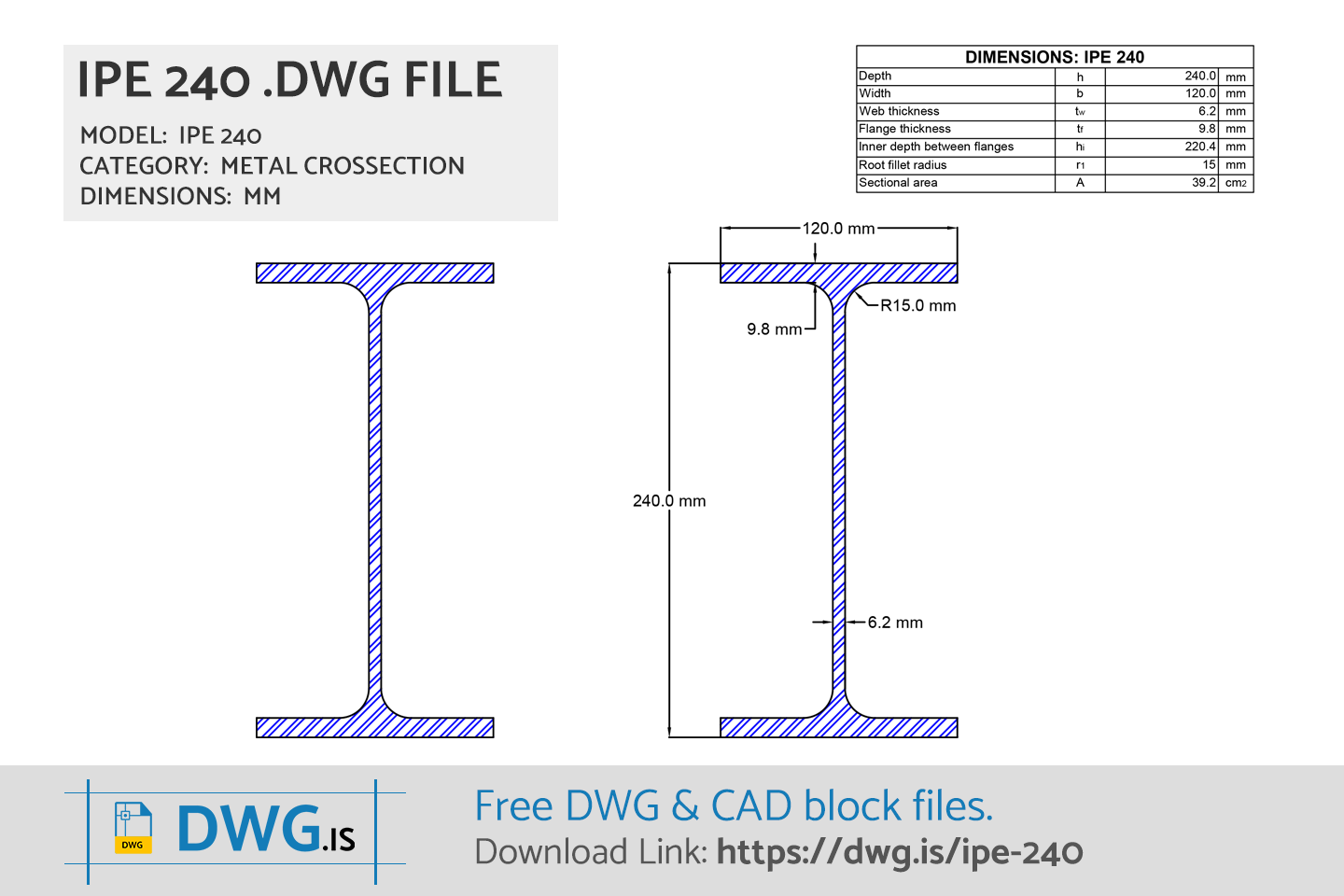

IPE 240 AutoCAD Block

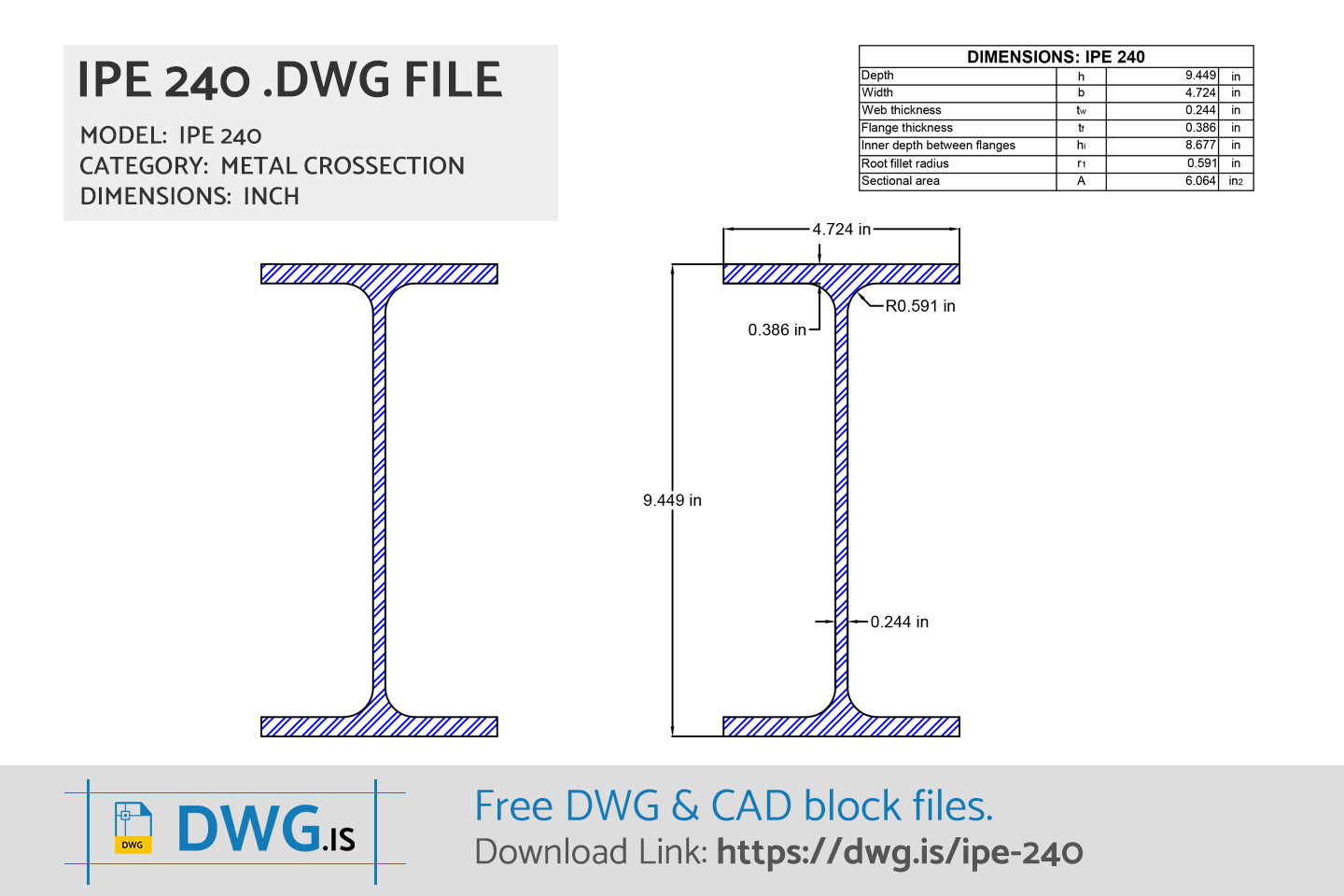

IPE 240 Free CAD Block File Downloads
IPE 240 DWG File DownloadDWG DOWNLOAD ⇓
IPE 240 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 240 Dimensions
| IPE 240 Size | |
|---|---|
| Depth | 240.0 mm |
| Width | 120.0 mm |
| Web Thickness | 6.2 mm |
| Flange Thickness | 9.8 mm |
| Inner depth between flanges | 220.4 mm |
| Root Fillet Radius | 15.0 mm |
| Distance | 25.0 mm |
| Sectional Area | 39.12 cm2 |
IPE 240 FAQ
-
What are IPE 240 size?
IPE 240 has dimensions: Depth 240.0 mm, Width 120.0 mm, Web Thickness 6.2 mm, Flange Thickness 9.8 mm, Inner depth between flanges 220.4 mm, Root Fillet Radius 15.0 mm, Distance 25.0 mm, Sectional Area 39.12 cm2.
