IPE 270 Steel Beam Cross-section Free DWG File is an ideal solution for any construction project. It has a Euronorm 19-57 and DIN 1025-5 standards and features a 270 mm depth, 135 mm width, 6.6 mm web thickness, 10.2 mm flange thickness, 249.6 mm inner depth between flanges, 15 mm root fillet radius, 25 mm distance and 45.95 cm2 sectional area.
It is perfect for any building that requires a high-quality and long-lasting beam. The steel beam will provide ample strength and support for any structure. Its easy-to-install design means it can be put in place quickly, providing the perfect solution for any project.
IPE 270 AutoCAD Block

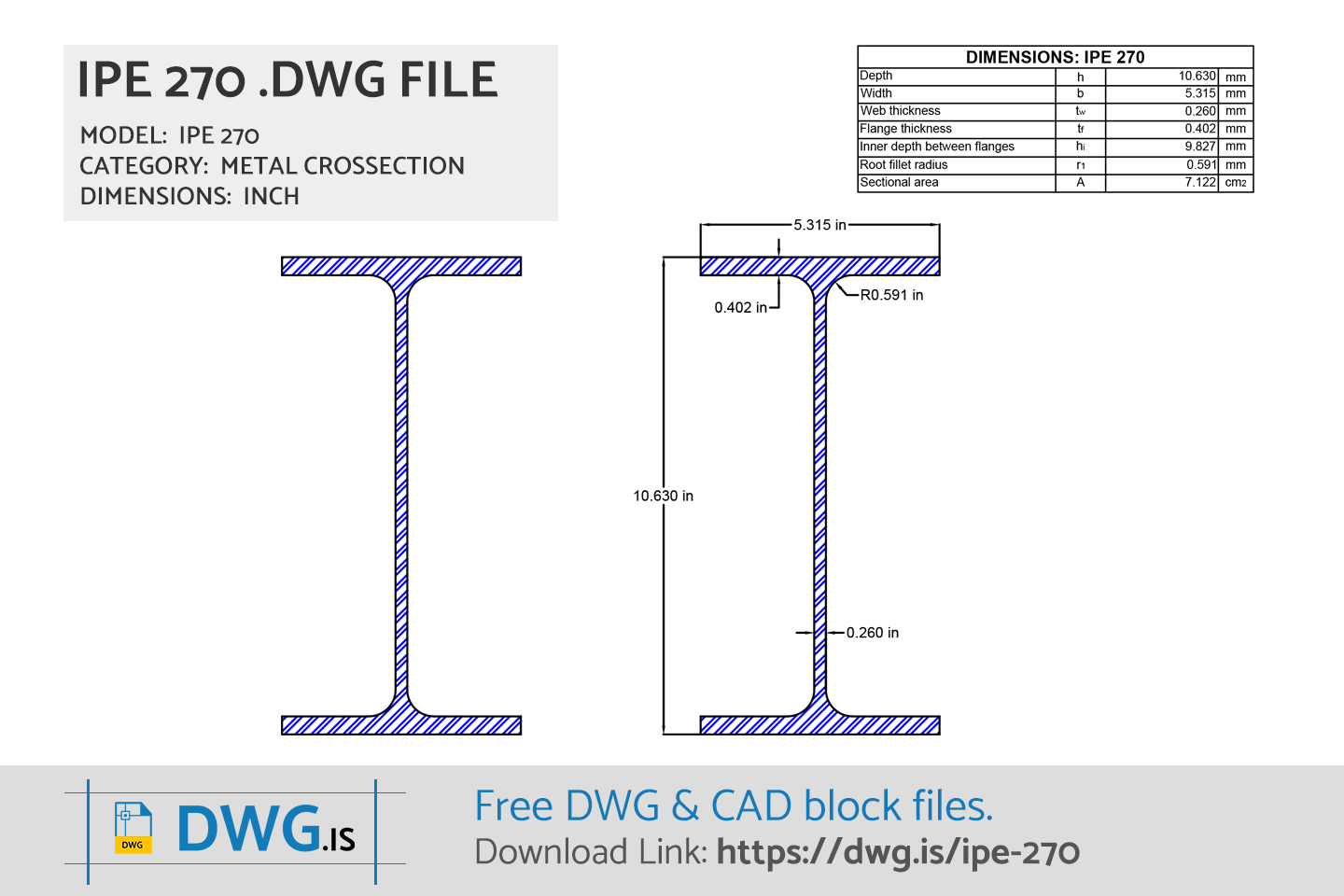

IPE 270 Free CAD Block File Downloads

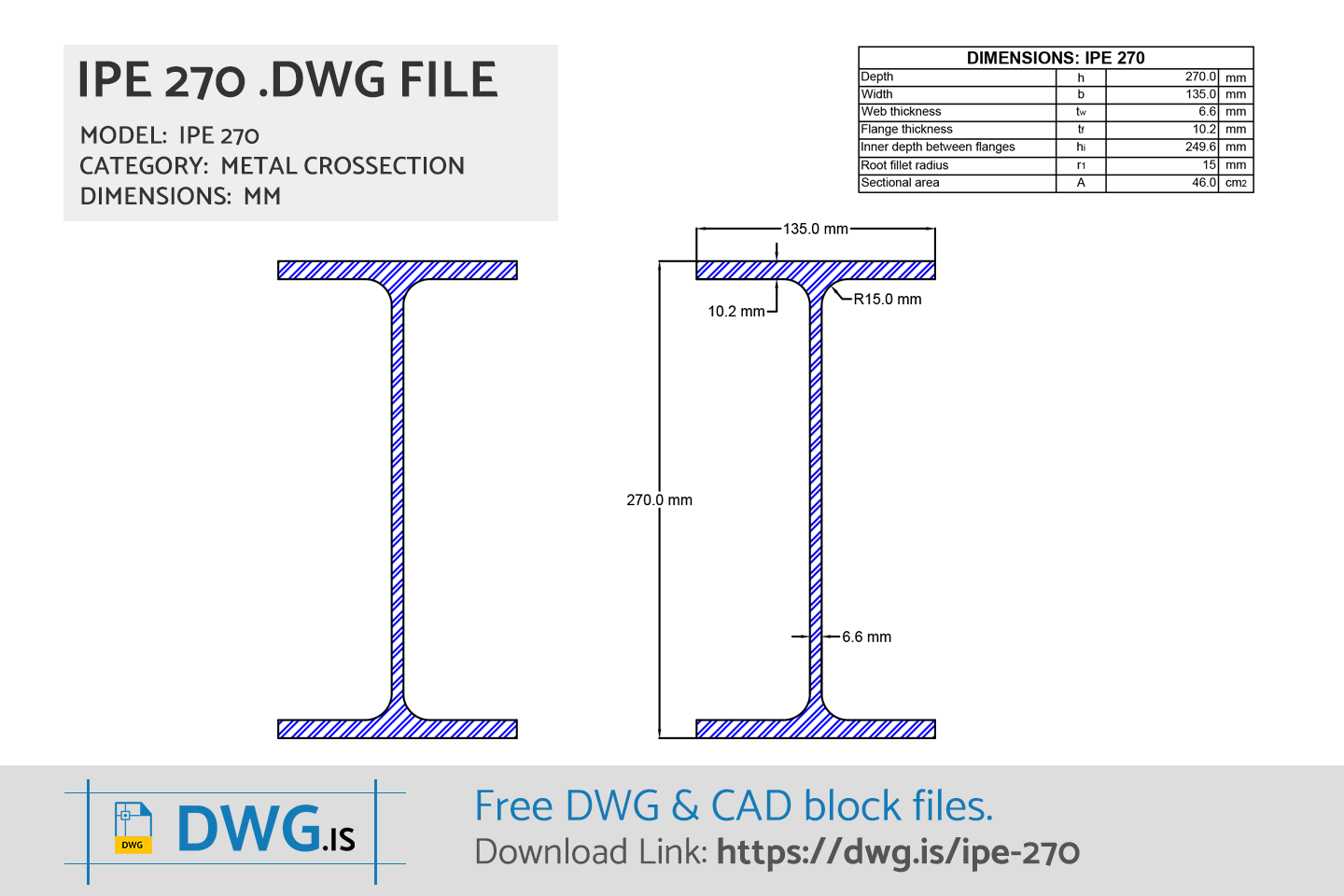

IPE 270 DWG File DownloadDWG DOWNLOAD ⇓
IPE 270 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 270 Dimensions
| IPE 270 Size | |
|---|---|
| Depth | 270.0 mm |
| Width | 135.0 mm |
| Web Thickness | 6.6 mm |
| Flange Thickness | 10.2 mm |
| Inner depth between flanges | 249.6 mm |
| Root Fillet Radius | 15.0 mm |
| Distance | 25.0 mm |
| Sectional Area | 45.95 cm2 |
IPE 270 FAQ
-
What are IPE 270 size?
IPE 270 has dimensions: Depth 270.0 mm, Width 135.0 mm, Web Thickness 6.6 mm, Flange Thickness 10.2 mm, Inner depth between flanges 249.6 mm, Root Fillet Radius 15.0 mm, Distance 25.0 mm, Sectional Area 45.95 cm2.
