HEA 220 DWG file contains the European Standard Wide Flange H Beams with dimensions and specifications in accordance with former standard Euronorm 53-62. This design has a depth of 210 mm, width of 220 mm, web thickness of 7 mm, flange thickness of 11 mm, flange inner depth of 188 mm, root fillet radius of 18 mm, distance of 29 mm, and a sectional area of 64.3 cm2. This design is ideal for a variety of industrial applications, and is made of strong and durable material, ensuring it is capable of withstanding the elements and any stresses placed on it. This design is perfect for those looking for a reliable and sturdy solution.
HEA 220 AutoCAD Block

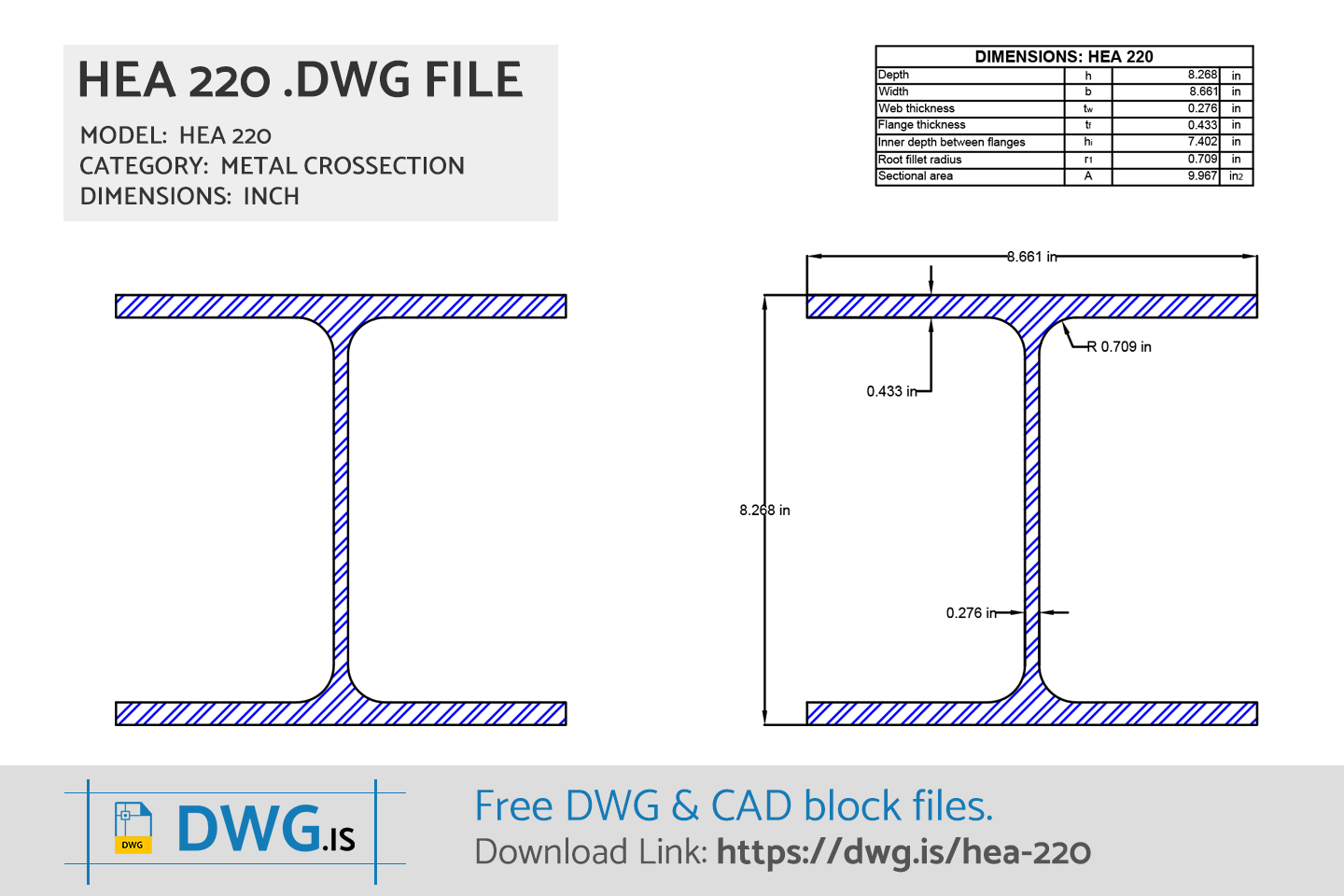

HEA 220 Free CAD Block File Downloads
HEA 220 DWG File DownloadDWG DOWNLOAD ⇓

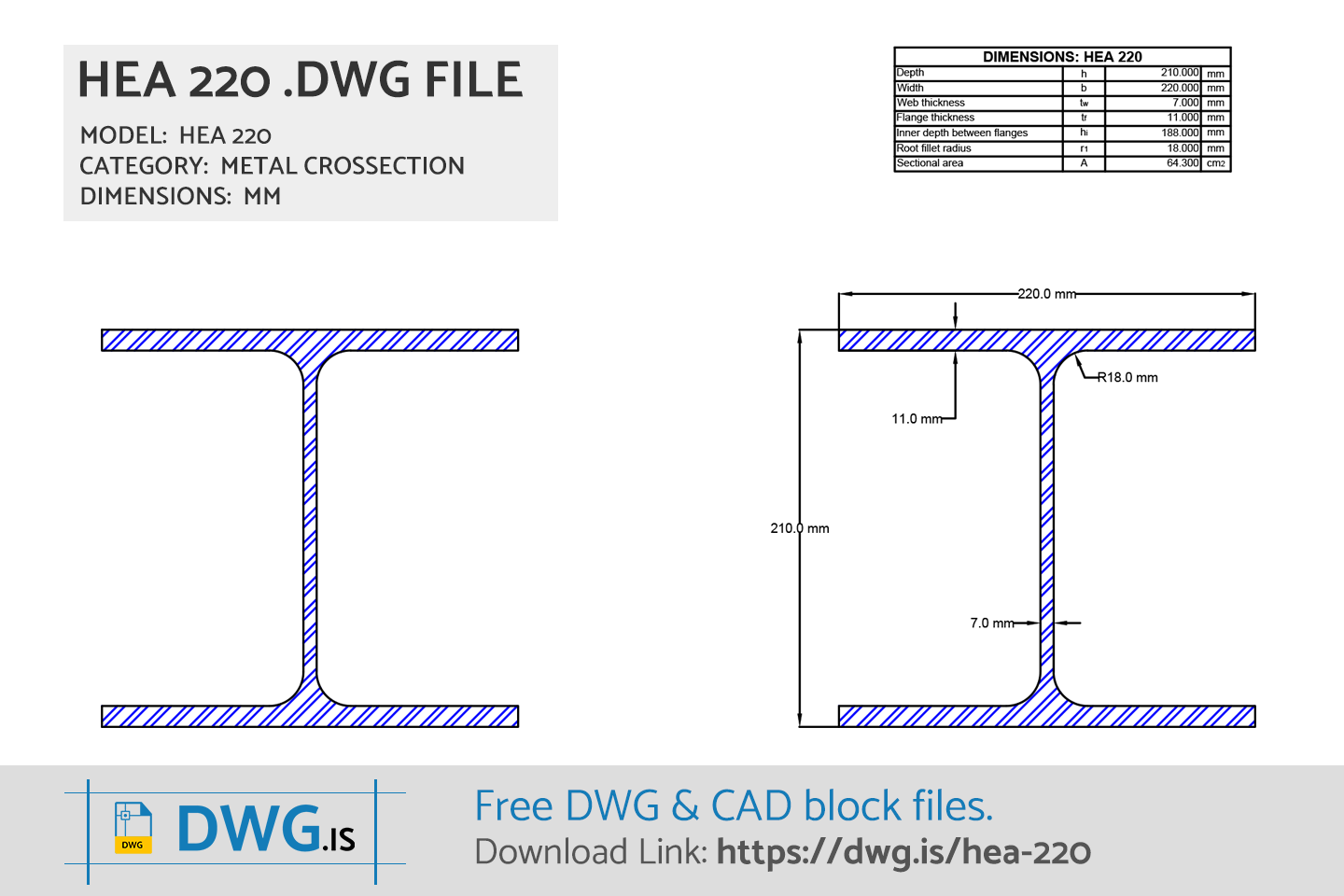

HEA 220 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 220 Dimensions
| HEA 220 Size | |
|---|---|
| Depth | 210.0 mm |
| Width | 220.0 mm |
| Web Thickness | 7.0 mm |
| Flange Thickness | 11.0 mm |
| Flange Inner Depth | 188.0 mm |
| Root Fillet Radius | 18.0 mm |
| Distance | 29.0 mm |
| Sectional Area | 64.3 cm2 |
HEA 220 FAQ
-
What are HEA 220 size?
HEA 220 has dimensions: Depth 210.0 mm, Width 220.0 mm, Web Thickness 7.0 mm, Flange Thickness 11.0 mm, Flange Inner Depth 188.0 mm, Root Fillet Radius 18.0 mm, Distance 29.0 mm, Sectional Area 64.3 cm2.
