UPN 350 Tapered Flange Channel Cross-section is a free DWG file that features a depth of 350 mm, a width of 100 mm, a web thickness of 14 mm, and a flange thickness of 16 mm. It also has a root fillet radius of 16 mm, a toe radius of 8 mm, and a distance of 43 mm. Its sectional area is 77.3 cm2, making it suitable for a wide range of applications.
UPN 250 CAD Block is fully customizable and easy to use, making it the perfect choice for all your engineering needs. With its detailed design and specifications, this UPN 350 Tapered Flange Channel Cross-section DWG file is sure to provide you with the perfect results.
UPN 350 AutoCAD Block
UPN 350 Free CAD Block File Downloads

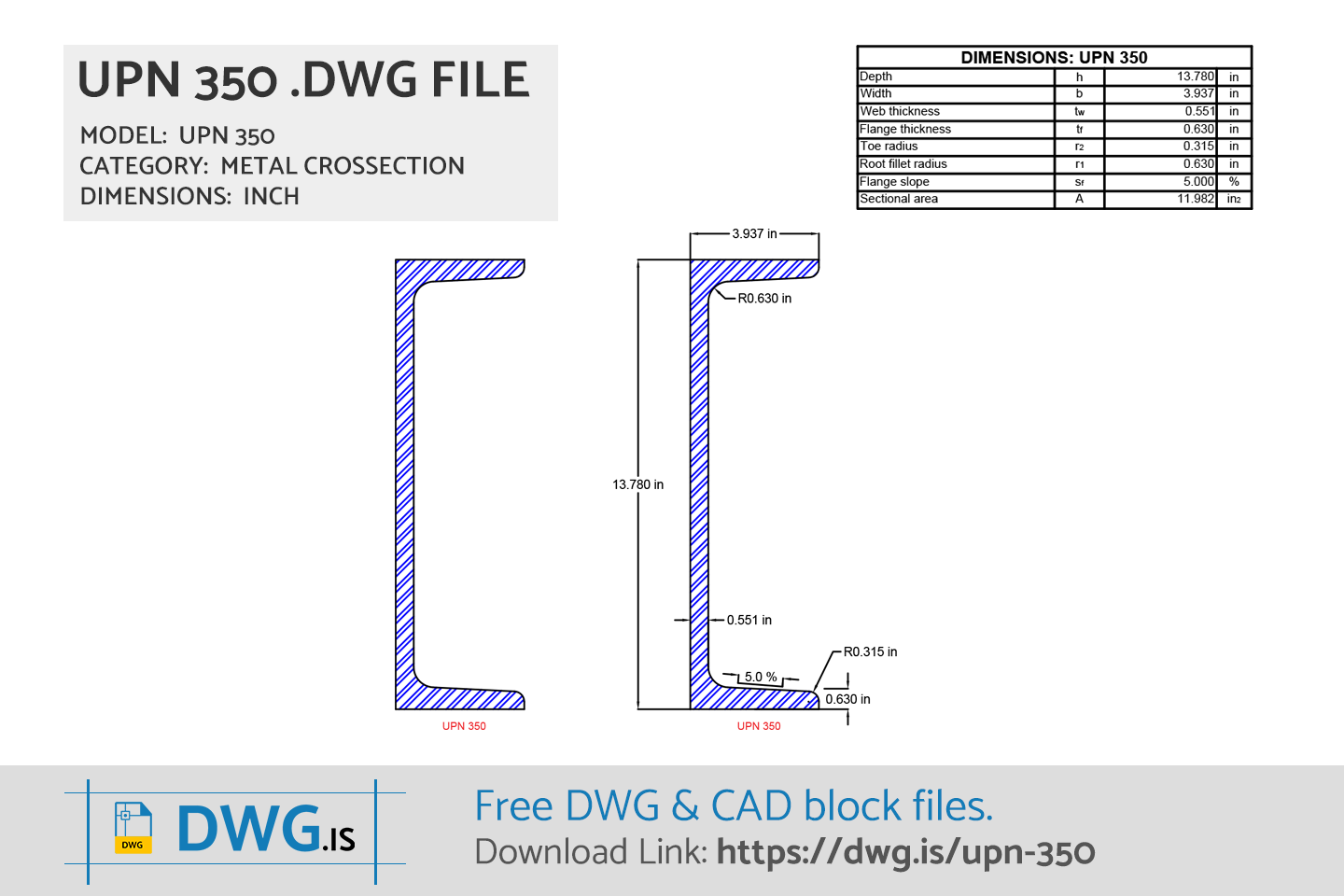

UPN 350 DWG File DownloadDWG DOWNLOAD ⇓
UPN 350 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 350 Dimensions
| UPN 350 Size | |
|---|---|
| Depth | 350.0 mm |
| Width | 100.0 mm |
| Web Thickness | 14.0 mm |
| Flange Thickness | 16.0 mm |
| Root Fillet Radius | 16.0 mm |
| Toe Radius | 8.0 mm |
| Distance | 43.0 mm |
| Sectional Area | 77.3 cm2 |
UPN 350 FAQ
-
What are UPN 350 size?
UPN 350 has dimensions: Depth 350.0 mm, Width 100.0 mm, Web Thickness 14.0 mm, Flange Thickness 16.0 mm, Root Fillet Radius 16.0 mm, Toe Radius 8.0 mm, Distance 43.0 mm, Sectional Area 77.3 cm2.
