UPN 400 Tapered Flange Channel Cross-section Free DWG File offers a unique and versatile design, perfect for a variety of applications. With a depth of 400 mm, a width of 110 mm, and web and flange thicknesses of 14 mm and 18 mm respectively, this model offers great structural support.
Featuring a root fillet radius of 18 mm, a toe radius of 9 mm and a distance of 48 mm, this channel makes for an ideal choice for structural strength. Additionally, boasting a sectional area of 91.5 cm2, this model is perfectly suited for larger projects.
UPN 400 AutoCAD Block
UPN 400 Free CAD Block File Downloads
UPN 400 DWG File DownloadDWG DOWNLOAD ⇓

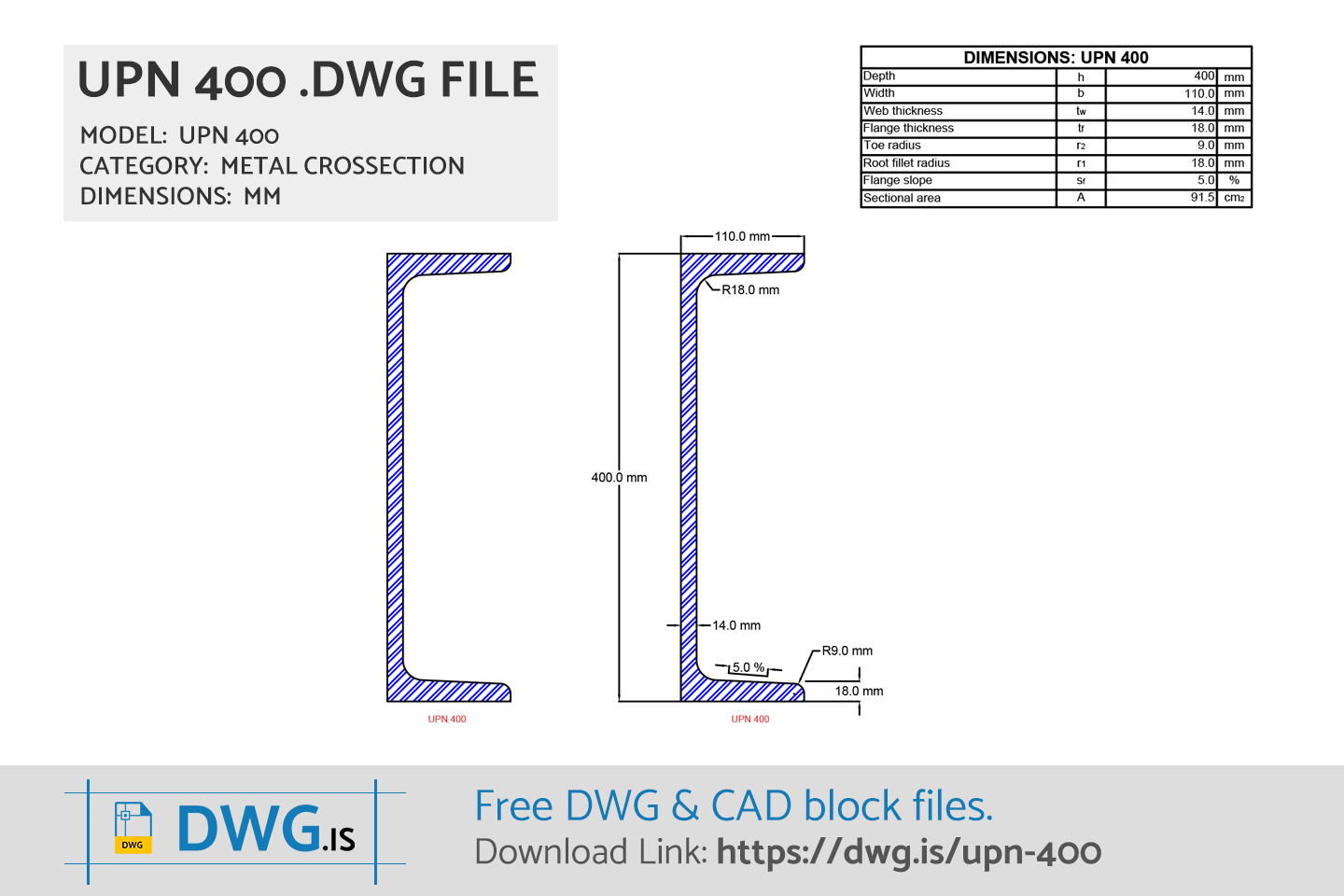

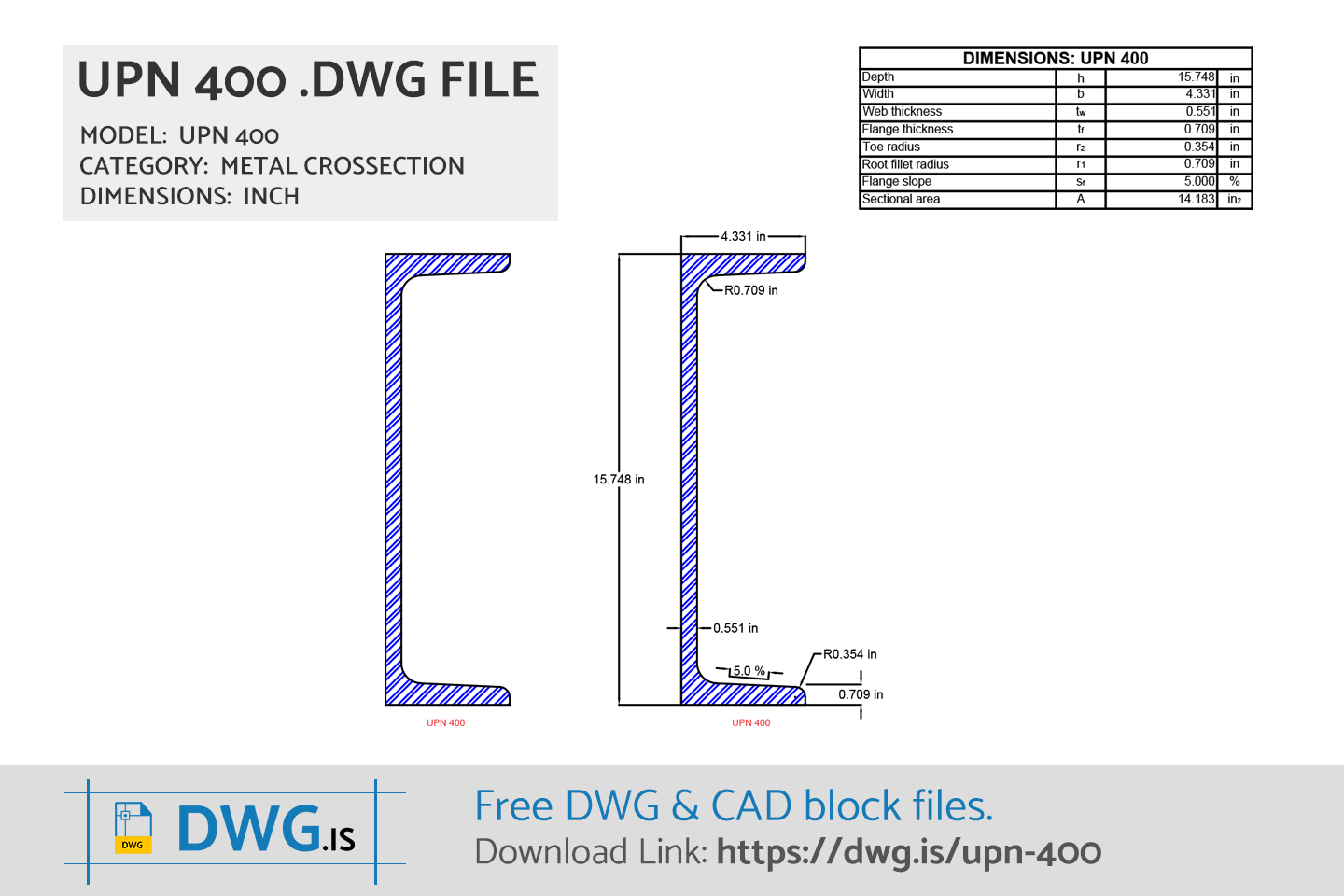

UPN 400 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 400 Dimensions
| UPN 400 Size | |
|---|---|
| Depth | 400.0 mm |
| Width | 110.0 mm |
| Web Thickness | 14.0 mm |
| Flange Thickness | 18.0 mm |
| Root Fillet Radius | 18.0 mm |
| Toe Radius | 9.0 mm |
| Distance | 48.0 mm |
| Sectional Area | 91.5 cm2 |
UPN 400 FAQ
-
What are UPN 400 size?
UPN 400 has dimensions: Depth 400.0 mm, Width 110.0 mm, Web Thickness 14.0 mm, Flange Thickness 18.0 mm, Root Fillet Radius 18.0 mm, Toe Radius 9.0 mm, Distance 48.0 mm, Sectional Area 91.5 cm2.
