HEB 240 AutoCAD Block
HEB 240 Free CAD Block File Downloads
HEB 240 DWG File DownloadDWG DOWNLOAD ⇓

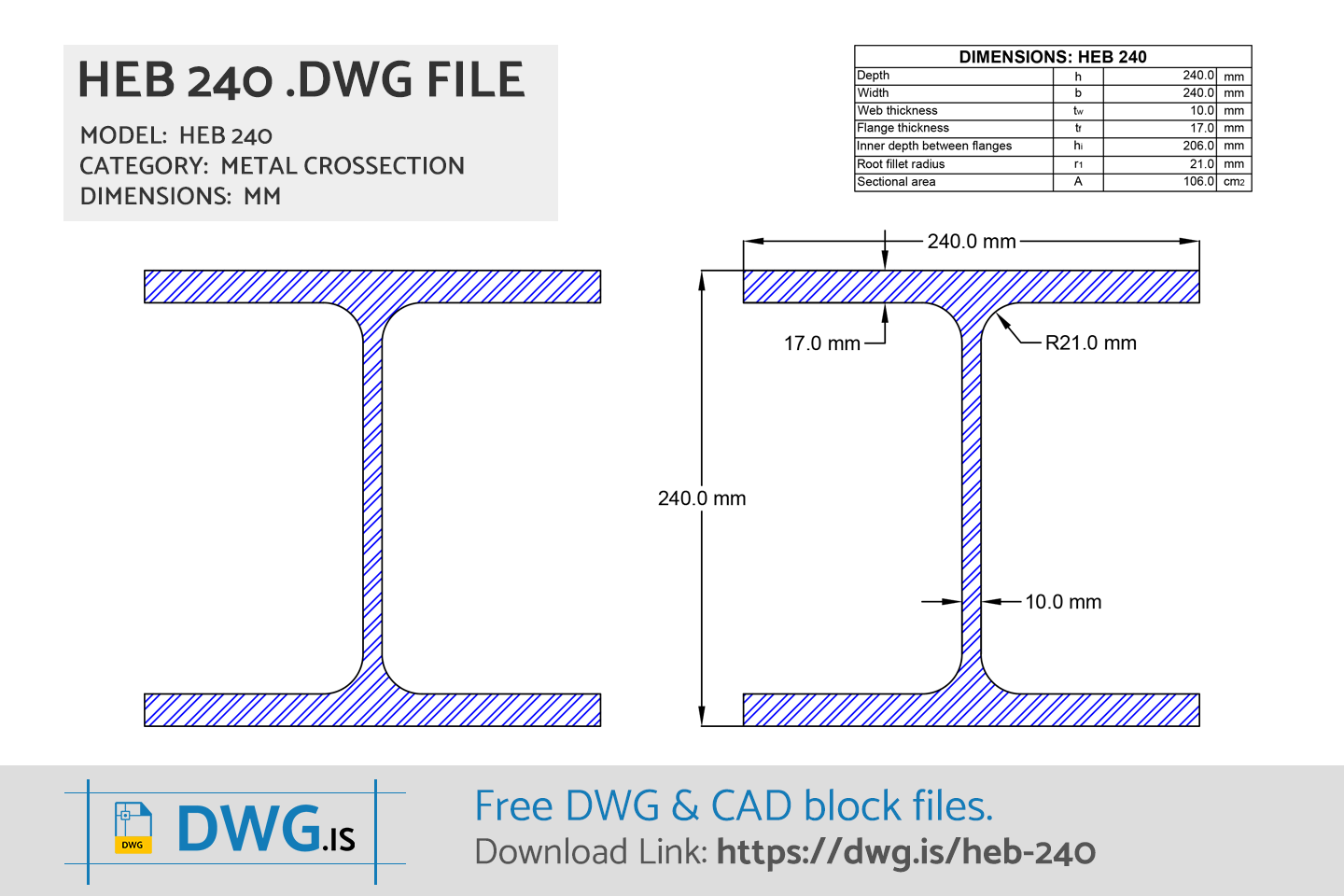

HEB 240 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 240 Dimensions
| HEB 240 Size | |
|---|---|
| Depth | 240.0 mm |
| Width | 240.0 mm |
| Web Thickness | 10.0 mm |
| Flange Thickness | 17.0 mm |
| Flange Inner Depth | 206.0 mm |
| Root Fillet Radius | 21.0 mm |
| Distance | 164.0 mm |
| Sectional Area | 106.0 cm2 |
HEB 240 FAQ
-
What are HEB 240 size?
HEB 240 has dimensions: Depth 240.0 mm, Width 240.0 mm, Web Thickness 10.0 mm, Flange Thickness 17.0 mm, Flange Inner Depth 206.0 mm, Root Fillet Radius 21.0 mm, Distance 164.0 mm, Sectional Area 106.0 cm2.
