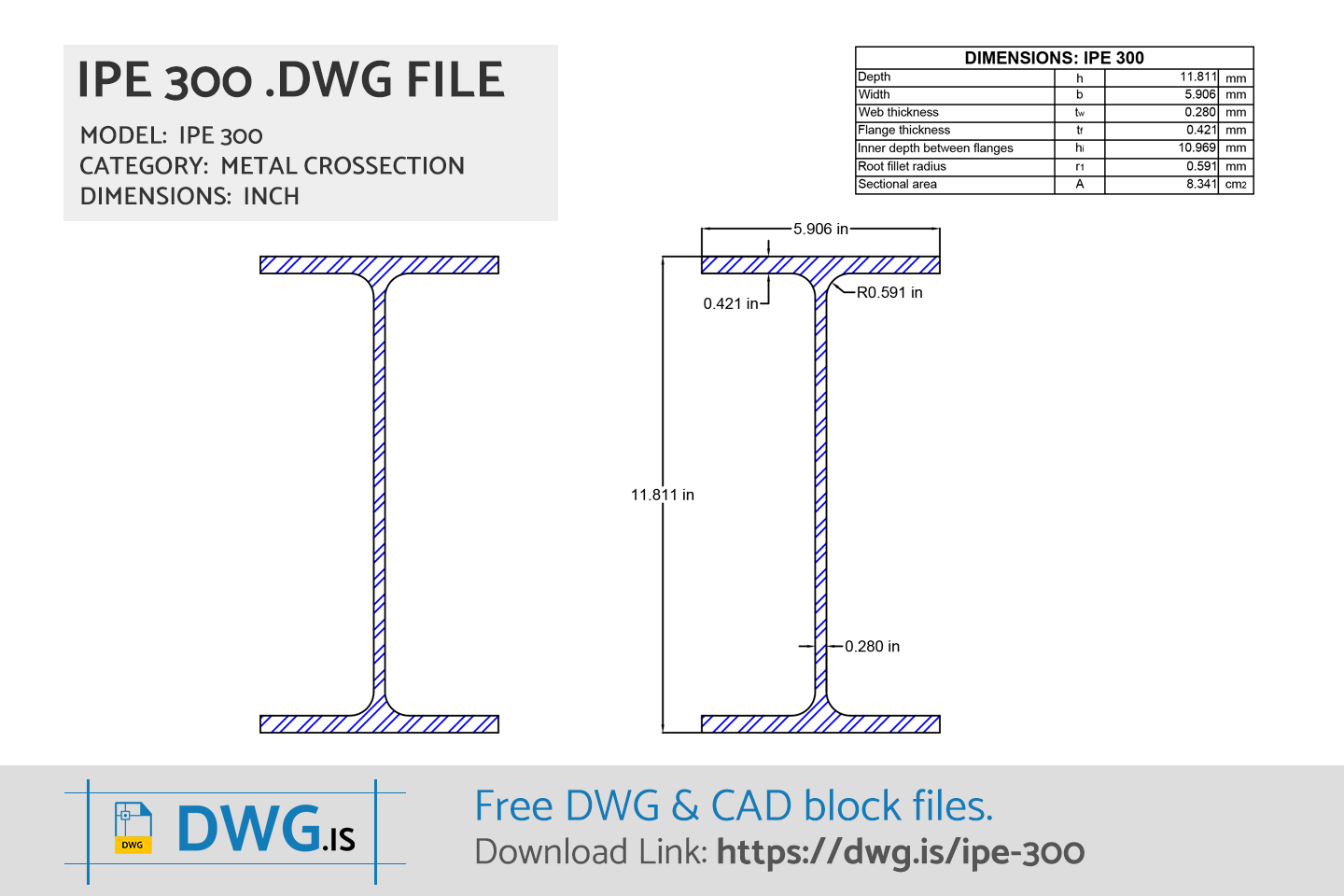

IPE 300 Steel Beam Cross-section Free DWG File contains a detailed drawing of an IPE beam with a depth of 300 mm, width of 150 mm, web thickness of 7.1 mm, a flange thickness of 10.7 mm, inner depth between flanges of 278.6 mm, root fillet radius of 15 mm, distance of 26 mm and a sectional area of 53.81 cm2.
This file meets the Euronorm 19-57 and DIN 1025-5 standards, ensuring quality and accuracy of the drawing. It can easily be used in any CAD program, enabling engineers and architects to quickly create accurate and detailed drawings of steel beams. This file is an invaluable resource for anyone involved in structural engineering or architecture.
IPE 300 AutoCAD Block
IPE 300 Free CAD Block File Downloads
IPE 300 DWG File DownloadDWG DOWNLOAD ⇓
IPE 300 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 300 Dimensions
| IPE 300 Size | |
|---|---|
| Depth | 300.0 mm |
| Width | 150.0 mm |
| Web Thickness | 7.1 mm |
| Flange Thickness | 10.7 mm |
| Inner depth between flanges | 278.6 mm |
| Root Fillet Radius | 15.0 mm |
| Distance | 26.0 mm |
| Sectional Area | 53.81 cm2 |
IPE 300 FAQ
-
What are IPE 300 size?
IPE 300 has dimensions: Depth 300.0 mm, Width 150.0 mm, Web Thickness 7.1 mm, Flange Thickness 10.7 mm, Inner depth between flanges 278.6 mm, Root Fillet Radius 15.0 mm, Distance 26.0 mm, Sectional Area 53.81 cm2.
