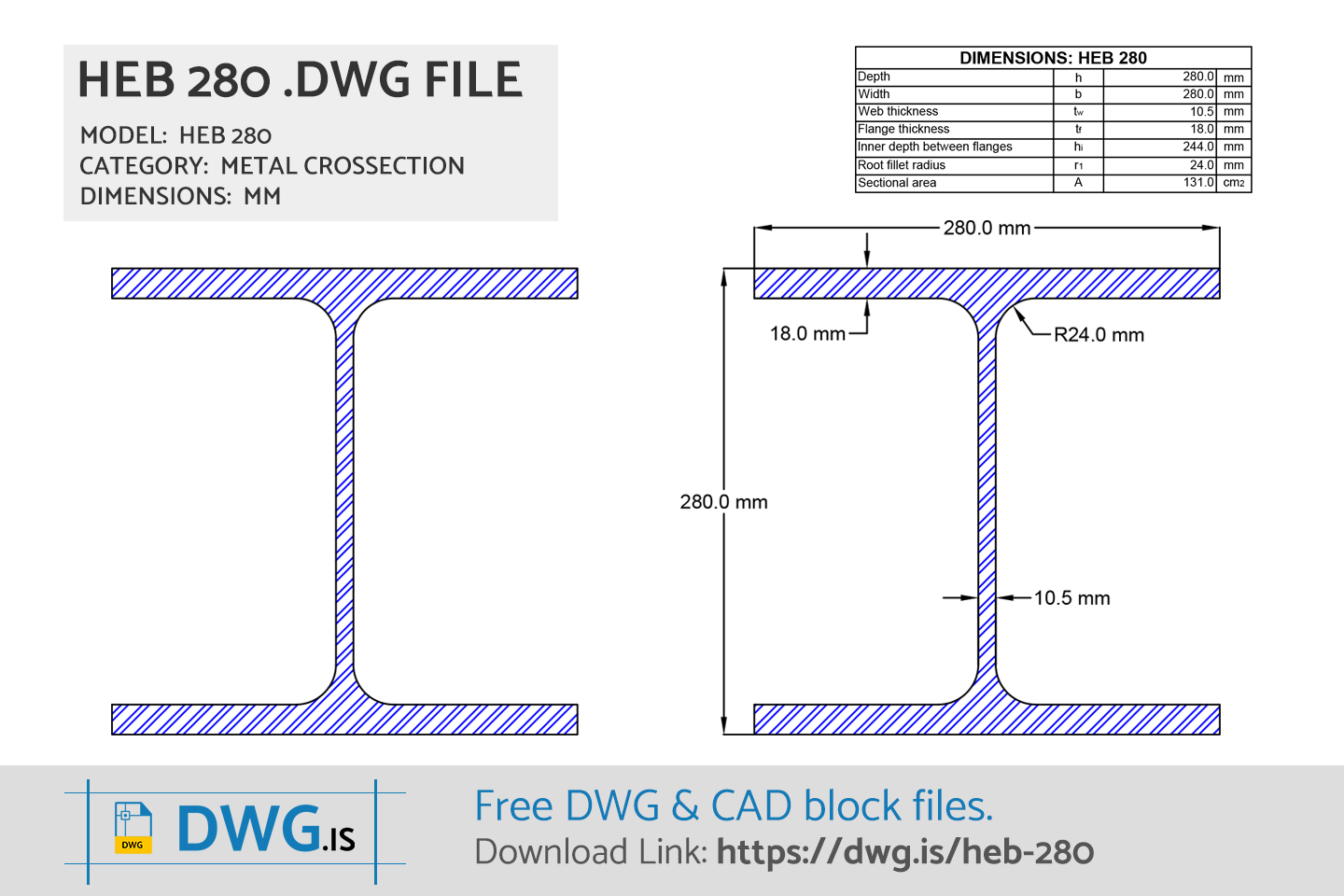

HEB 280 AutoCAD Block
HEB 280 Free CAD Block File Downloads
HEB 280 DWG File DownloadDWG DOWNLOAD ⇓
HEB 280 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 280 Dimensions
| HEB 280 Size | |
|---|---|
| Depth | 280.0 mm |
| Width | 280.0 mm |
| Web Thickness | 10.5 mm |
| Flange Thickness | 18.0 mm |
| Flange Inner Depth | 244.0 mm |
| Root Fillet Radius | 24.0 mm |
| Distance | 196.0 mm |
| Sectional Area | 131.4 cm2 |
HEB 280 FAQ
-
What are HEB 280 size?
HEB 280 has dimensions: Depth 280.0 mm, Width 280.0 mm, Web Thickness 10.5 mm, Flange Thickness 18.0 mm, Flange Inner Depth 244.0 mm, Root Fillet Radius 24.0 mm, Distance 196.0 mm, Sectional Area 131.4 cm2.
