HEB 120 AutoCAD Block
HEB 120 Free CAD Block File Downloads

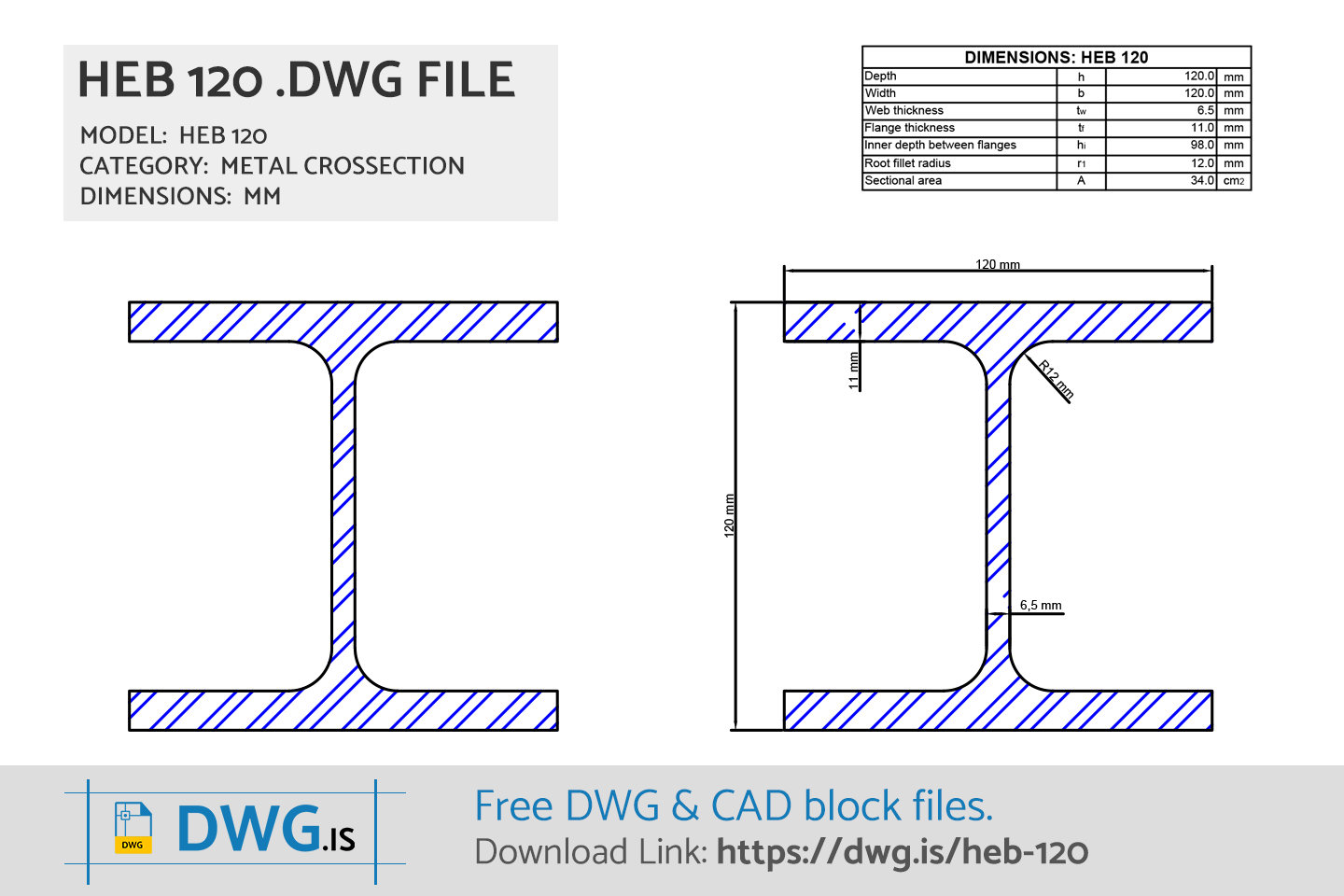

HEB 120 DWG File DownloadDWG DOWNLOAD ⇓
HEB 120 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 120 Dimensions
| HEB 120 Size | |
|---|---|
| Depth | 120.0 mm |
| Width | 120.0 mm |
| Web Thickness | 6.5 mm |
| Flange Thickness | 11.0 mm |
| Flange Inner Depth | 98.0 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 74.0 mm |
| Sectional Area | 34.0 cm2 |
HEB 120 FAQ
-
What are HEB 120 size?
HEB 120 has dimensions: Depth 120.0 mm, Width 120.0 mm, Web Thickness 6.5 mm, Flange Thickness 11.0 mm, Flange Inner Depth 98.0 mm, Root Fillet Radius 12.0 mm, Distance 74.0 mm, Sectional Area 34.0 cm2.
