UPN 320 Flange Channel Cross-section Free DWG File is a great resource for engineers and designers in need of a quick and easy solution for accurate 3D model of a tapered flange channel cross-section.
The dimensions of this cross-section are 320 mm deep, 100 mm wide, 14 mm web thickness, 17.5 mm flange thickness, 17.5 mm root fillet radius, 8.8 mm toe radius, and a 43 mm distance. The total sectional area is 75.8 cm2. This model is perfect for those who need a quick and accurate design solution that can be used for a variety of engineering applications. Download this free file and get started on your next project today.

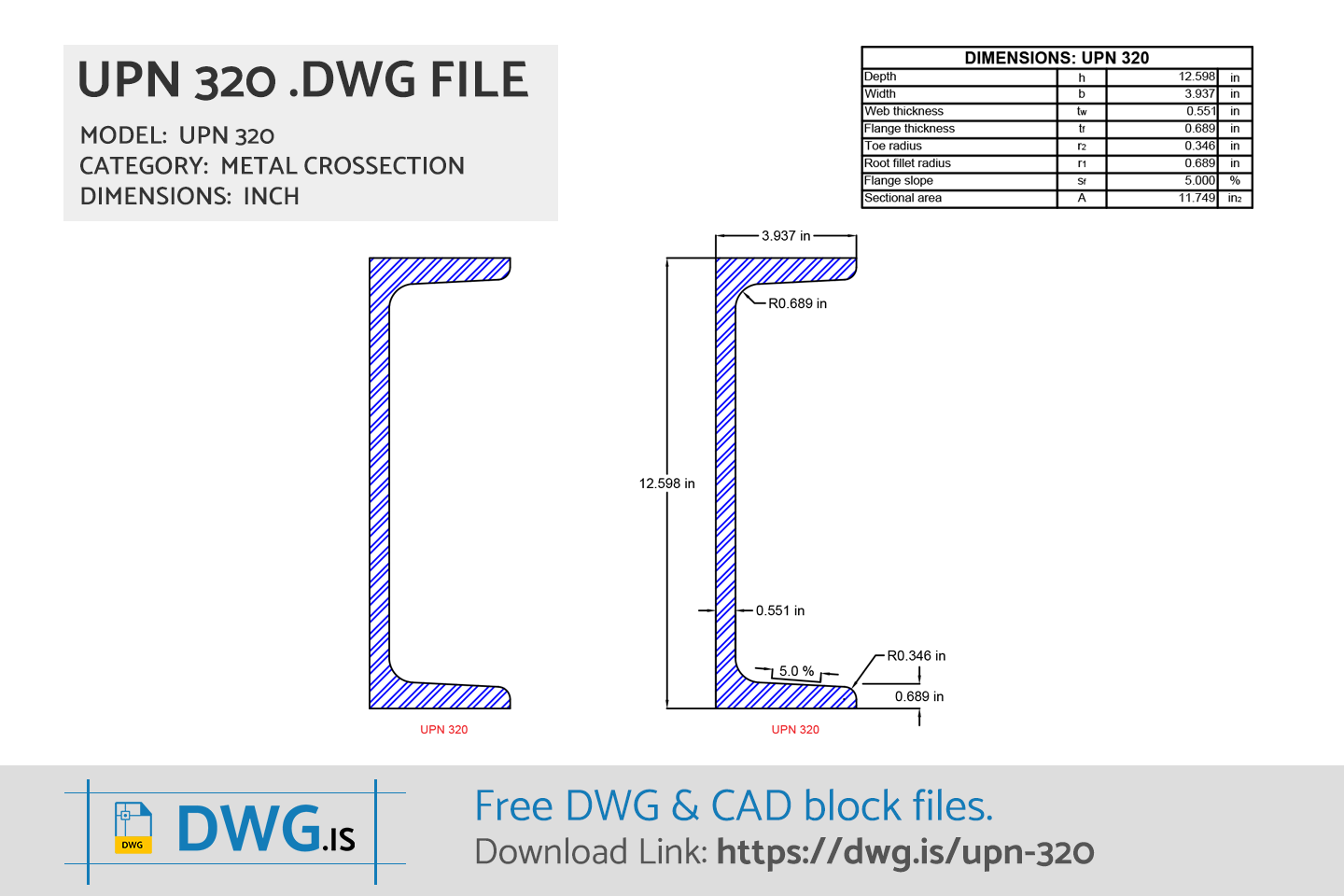

UPN 320 AutoCAD Block
UPN 320 Free CAD Block File Downloads
UPN 320 DWG File DownloadDWG DOWNLOAD ⇓
UPN 320 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 320 Dimensions
| UPN 320 Size | |
|---|---|
| Depth | 320.0 mm |
| Width | 100.0 mm |
| Web Thickness | 14.0 mm |
| Flange Thickness | 17.5 mm |
| Root Fillet Radius | 17.5 mm |
| Toe Radius | 8.8 mm |
| Distance | 43.0 mm |
| Sectional Area | 75.8 cm2 |
UPN 320 FAQ
-
What are UPN 320 size?
UPN 320 has dimensions: Depth 320.0 mm, Width 100.0 mm, Web Thickness 14.0 mm, Flange Thickness 17.5 mm, Root Fillet Radius 17.5 mm, Toe Radius 8.8 mm, Distance 43.0 mm, Sectional Area 75.8 cm2.
