HEB 220 AutoCAD Block
HEB 220 Free CAD Block File Downloads
HEB 220 DWG File DownloadDWG DOWNLOAD ⇓

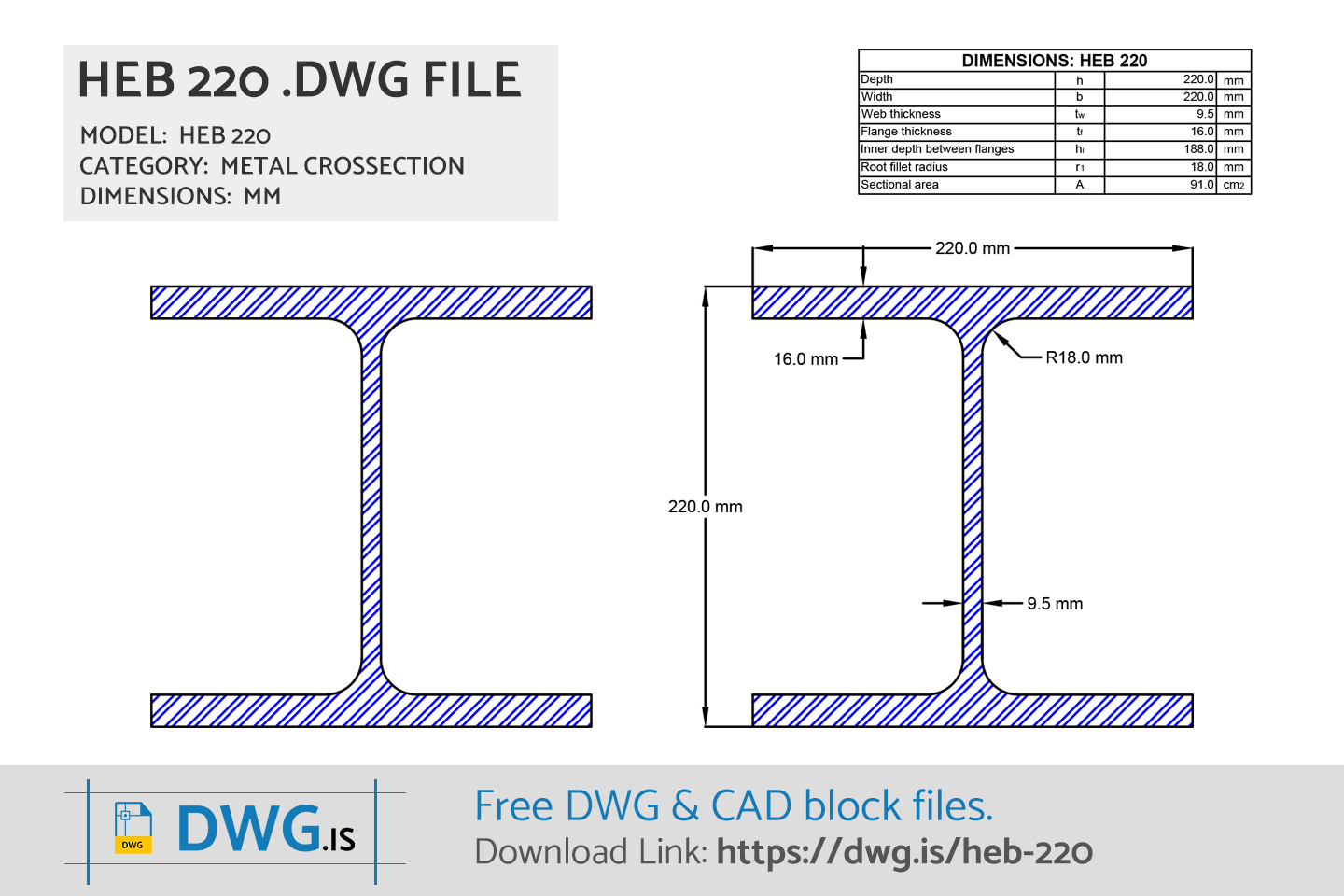

HEB 220 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 220 Dimensions
| HEB 220 Size | |
|---|---|
| Depth | 220.0 mm |
| Width | 220.0 mm |
| Web Thickness | 9.5 mm |
| Flange Thickness | 16.0 mm |
| Flange Inner Depth | 188.0 mm |
| Root Fillet Radius | 18.0 mm |
| Distance | 152.0 mm |
| Sectional Area | 91.0 cm2 |
HEB 220 FAQ
-
What are HEB 220 size?
HEB 220 has dimensions: Depth 220.0 mm, Width 220.0 mm, Web Thickness 9.5 mm, Flange Thickness 16.0 mm, Flange Inner Depth 188.0 mm, Root Fillet Radius 18.0 mm, Distance 152.0 mm, Sectional Area 91.0 cm2.
