UPN 260 Tapered Flange Channel Cross-section Free DWG File is a great resource for anyone needing accurate dimensions for a tapered flange channel cross-section.
The depth of the channel is 260mm, the width is 90mm, web thickness is 10mm, flange thickness is 14mm, root fillet radius is 14mm, and the toe radius is 7mm. Additionally, the distance between the points of the flange is 45mm and the sectional area is 48.3 cm2. This DWG file is perfect for designers and engineers who need precise measurements for their projects.
UPN 260 AutoCAD Block
UPN 260 Free CAD Block File Downloads
UPN 260 DWG File DownloadDWG DOWNLOAD ⇓

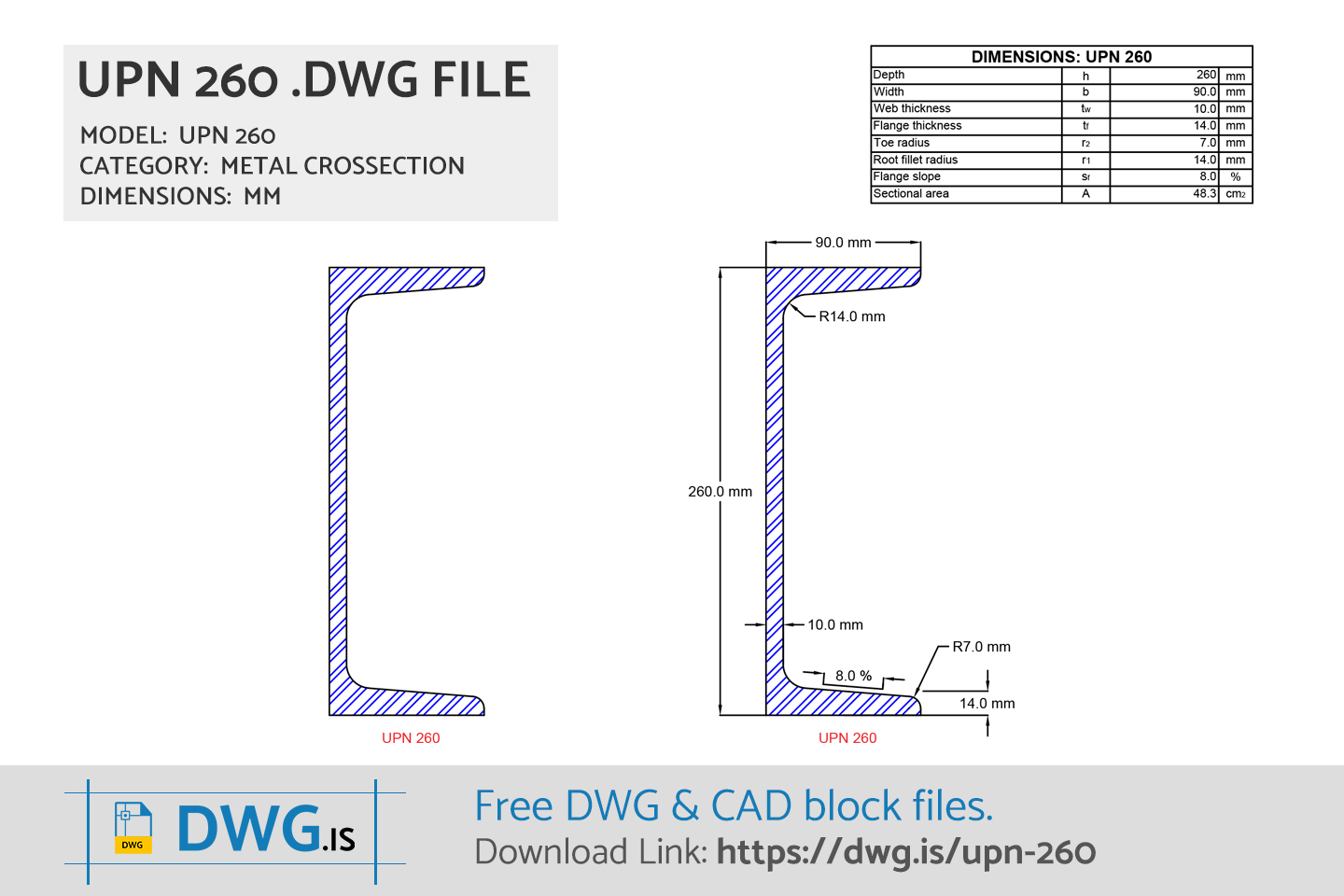

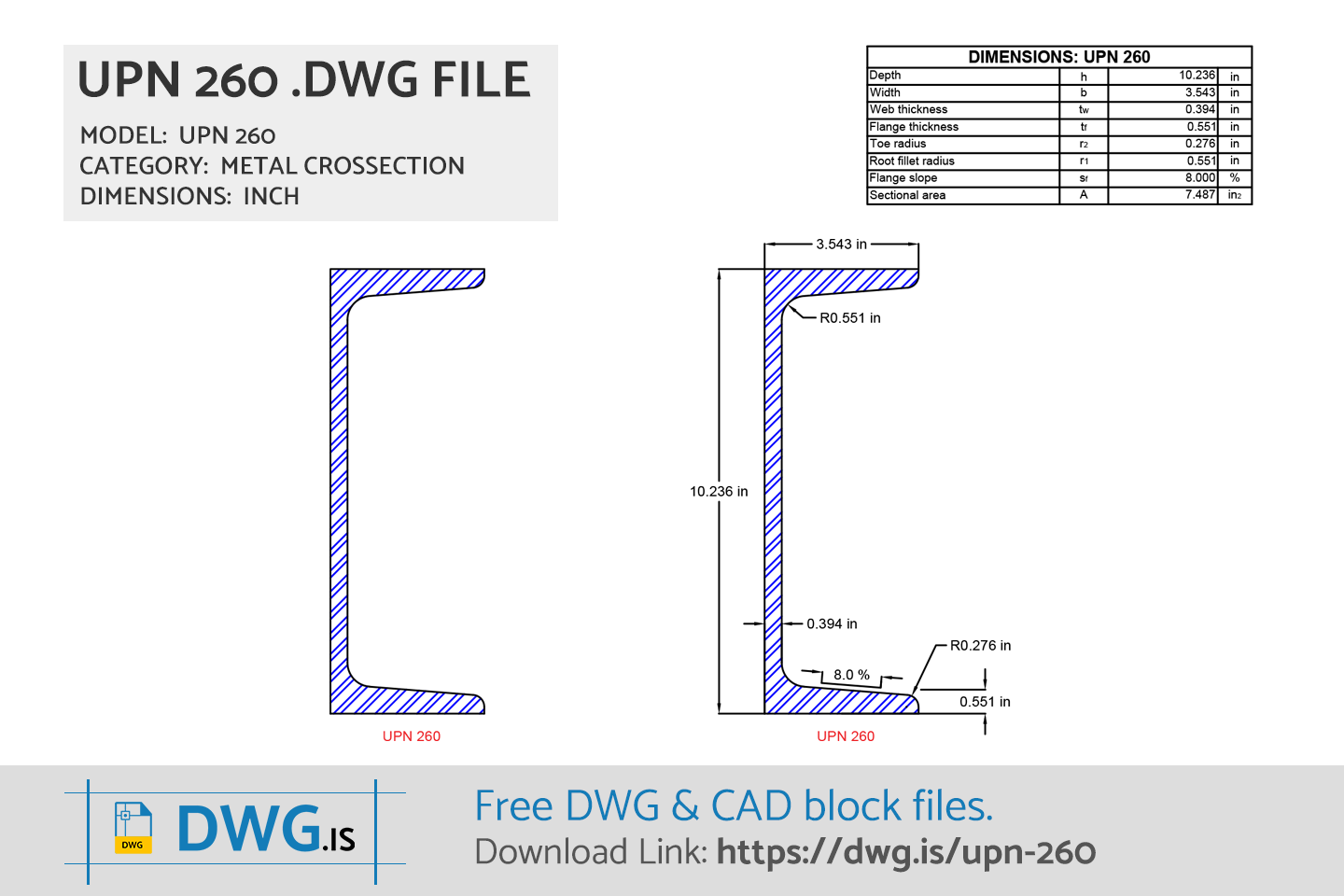

UPN 260 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 260 Dimensions
| UPN 260 Size | |
|---|---|
| Depth | 260.0 mm |
| Width | 90.0 mm |
| Web Thickness | 10.0 mm |
| Flange Thickness | 14.0 mm |
| Root Fillet Radius | 14.0 mm |
| Toe Radius | 7.0 mm |
| Distance | 45.0 mm |
| Sectional Area | 48.3 cm2 |
UPN 260 FAQ
-
What are UPN 260 size?
UPN 260 has dimensions: Depth 260.0 mm, Width 90.0 mm, Web Thickness 10.0 mm, Flange Thickness 14.0 mm, Root Fillet Radius 14.0 mm, Toe Radius 7.0 mm, Distance 45.0 mm, Sectional Area 48.3 cm2.
