IPE 160 Steel Beam Cross-section Free DWG File is a steel section with a unique profile that has been designed to meet Euronorm 19-57 and DIN 1025-5 standards.
It has a depth of 160 mm, width of 82 mm, a web thickness of 5 mm, a flange thickness of 7.4 mm, an inner depth between flanges of 145.2 mm, a root fillet radius of 9 mm, and a distance of 17 mm. The total sectional area of this profile is 20.09 cm2. This profile is ideal for heavy-duty applications and is suitable for use in a wide range of industries. The design ensures maximum strength and stability for the structure in order to provide greater safety and security.

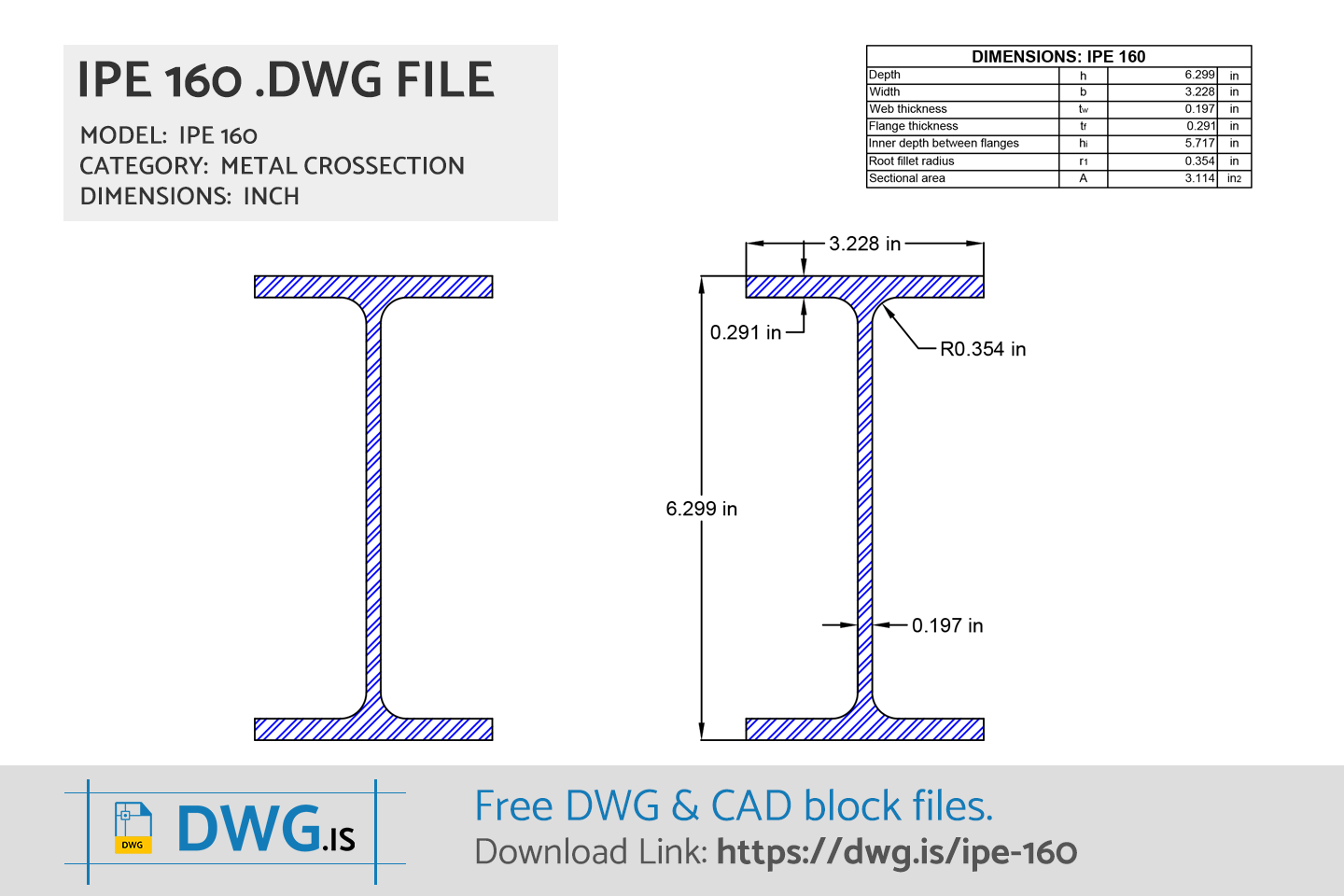

IPE 160 AutoCAD Block
IPE 160 Free CAD Block File Downloads
IPE 160 DWG File DownloadDWG DOWNLOAD ⇓

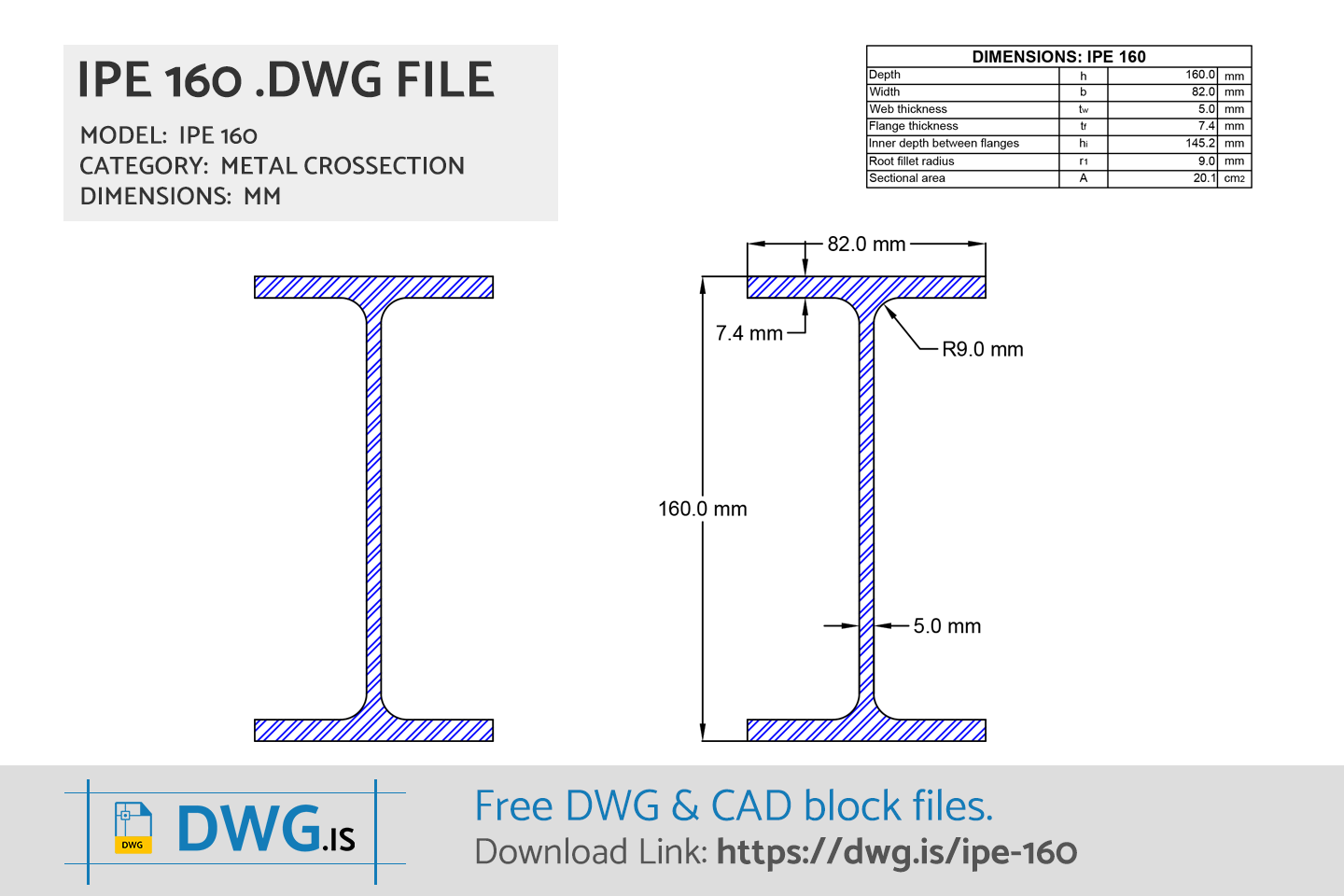

IPE 160 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 160 Dimensions
| IPE 160 Size | |
|---|---|
| Depth | 160.0 mm |
| Width | 82.0 mm |
| Web Thickness | 5.0 mm |
| Flange Thickness | 7.4 mm |
| Inner depth between flanges | 145.2 mm |
| Root Fillet Radius | 9.0 mm |
| Distance | 17.0 mm |
| Sectional Area | 20.09 cm2 |
IPE 160 FAQ
-
What are IPE 160 size?
IPE 160 has dimensions: Depth 160.0 mm, Width 82.0 mm, Web Thickness 5.0 mm, Flange Thickness 7.4 mm, Inner depth between flanges 145.2 mm, Root Fillet Radius 9.0 mm, Distance 17.0 mm, Sectional Area 20.09 cm2.
