HEA 340 DWG File for HEA 340 European Standard Wide Flange Beam is a 3D-drawing detailing all the dimensions and specifications of the beam in accordance with the former standard Euronorm 53-62. It has a depth of 330 mm, a width of 300 mm, and web and flange thicknesses of 9.5 and 16.5 mm, respectively. The flange inner depth is 297 mm, while the root fillet radius is 27 mm. The distance between the flanges is 44 mm and the beam's sectional area is 133 cm2. The drawing provides a precise overview of the beam's measurements, making it easier to produce, install and maintain the beam. The DWG File for HEA 340 is an essential tool for any construction project that requires the use of this type of beam.

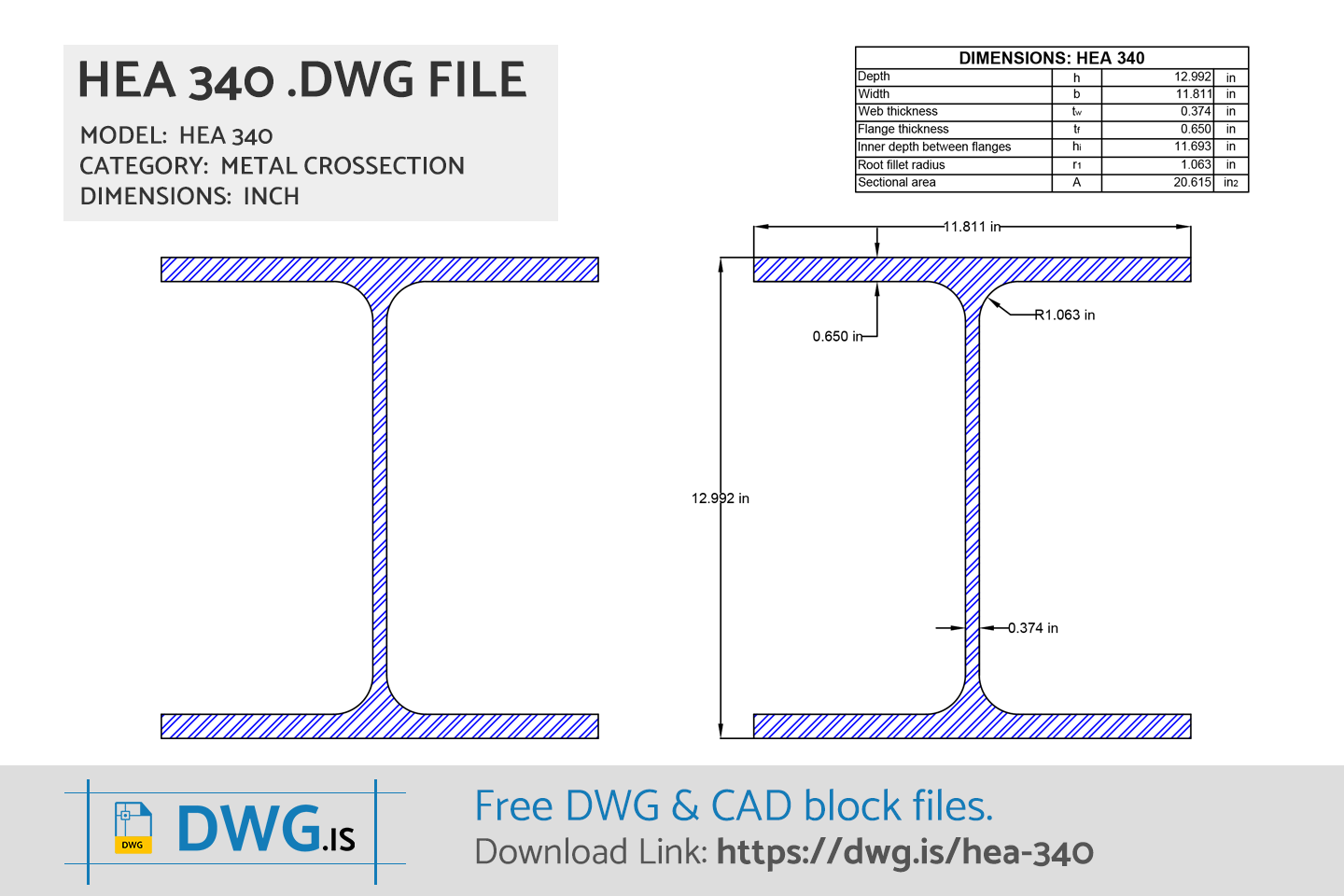

HEA 340 AutoCAD Block
HEA 340 Free CAD Block File Downloads
HEA 340 DWG File DownloadDWG DOWNLOAD ⇓

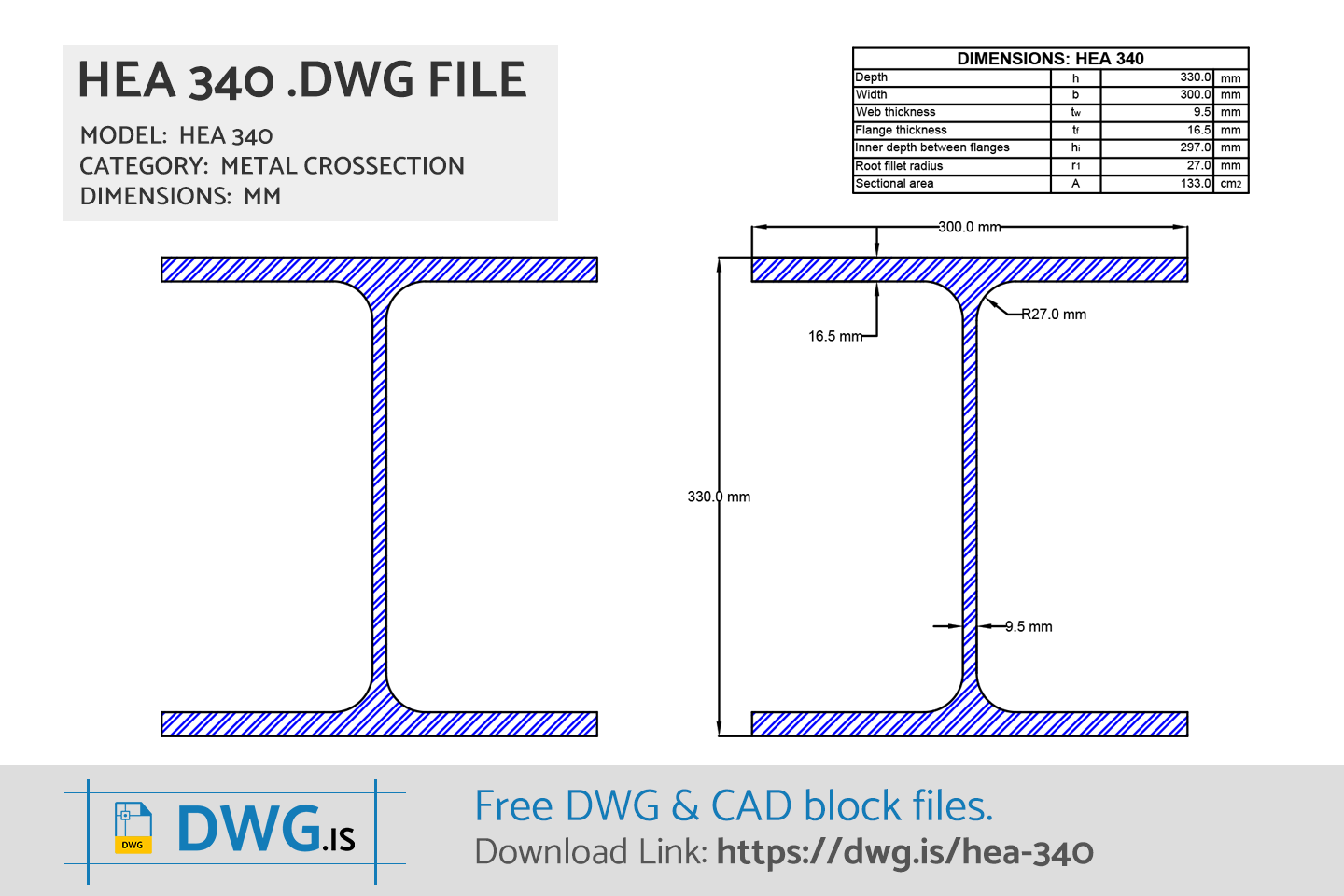

HEA 340 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 340 Dimensions
| HEA 340 Size | |
|---|---|
| Depth | 330.0 mm |
| Width | 300.0 mm |
| Web Thickness | 9.5 mm |
| Flange Thickness | 16.5 mm |
| Flange Inner Depth | 297.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 44.0 mm |
| Sectional Area | 133.0 cm2 |
HEA 340 FAQ
-
What are HEA 340 size?
HEA 340 has dimensions: Depth 330.0 mm, Width 300.0 mm, Web Thickness 9.5 mm, Flange Thickness 16.5 mm, Flange Inner Depth 297.0 mm, Root Fillet Radius 27.0 mm, Distance 44.0 mm, Sectional Area 133.0 cm2.
