UPN 120 DWG File is Tapered Flange Channel Cross-section Free DWG File is an essential component for any construction project involving UPN Channel Crossections. This high-quality file includes detailed information about the dimensions of the channel, including its depth, width, web thickness, flange thickness, root fillet radius, toe radius, distance, and sectional area.
It is specifically designed for strength and durability, with a depth of 120 mm, width of 55 mm, web thickness of 7 mm, flange thickness of 9 mm, root fillet radius of 9 mm, toe radius of 4.5 mm, distance of 27.5 mm, and sectional area of 17 cm2. This file will provide you with the assurance that your project will be completed with the utmost quality and precision.

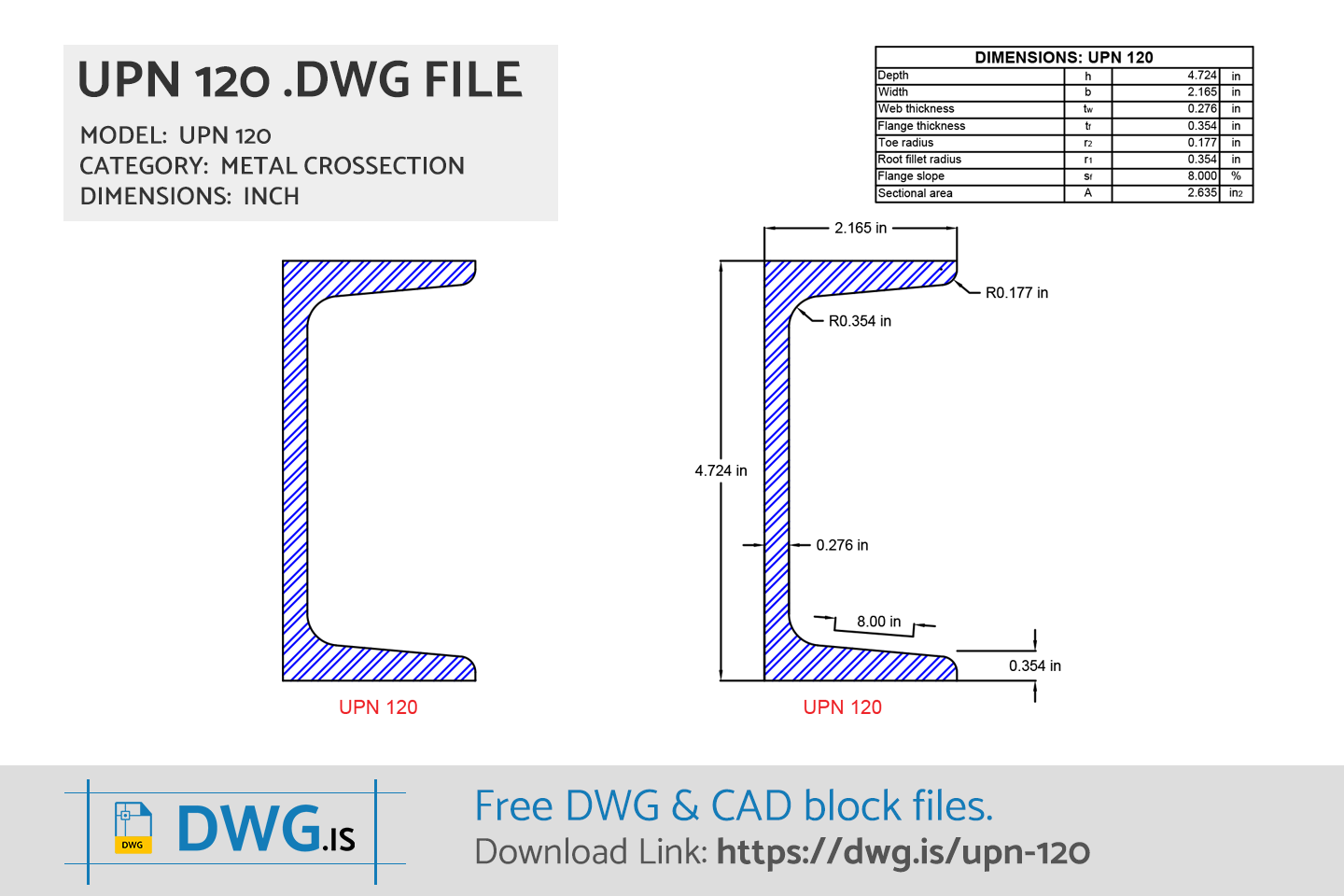

UPN 120 AutoCAD Block
UPN 120 Free CAD Block File Downloads
UPN 120 DWG File DownloadDWG DOWNLOAD ⇓

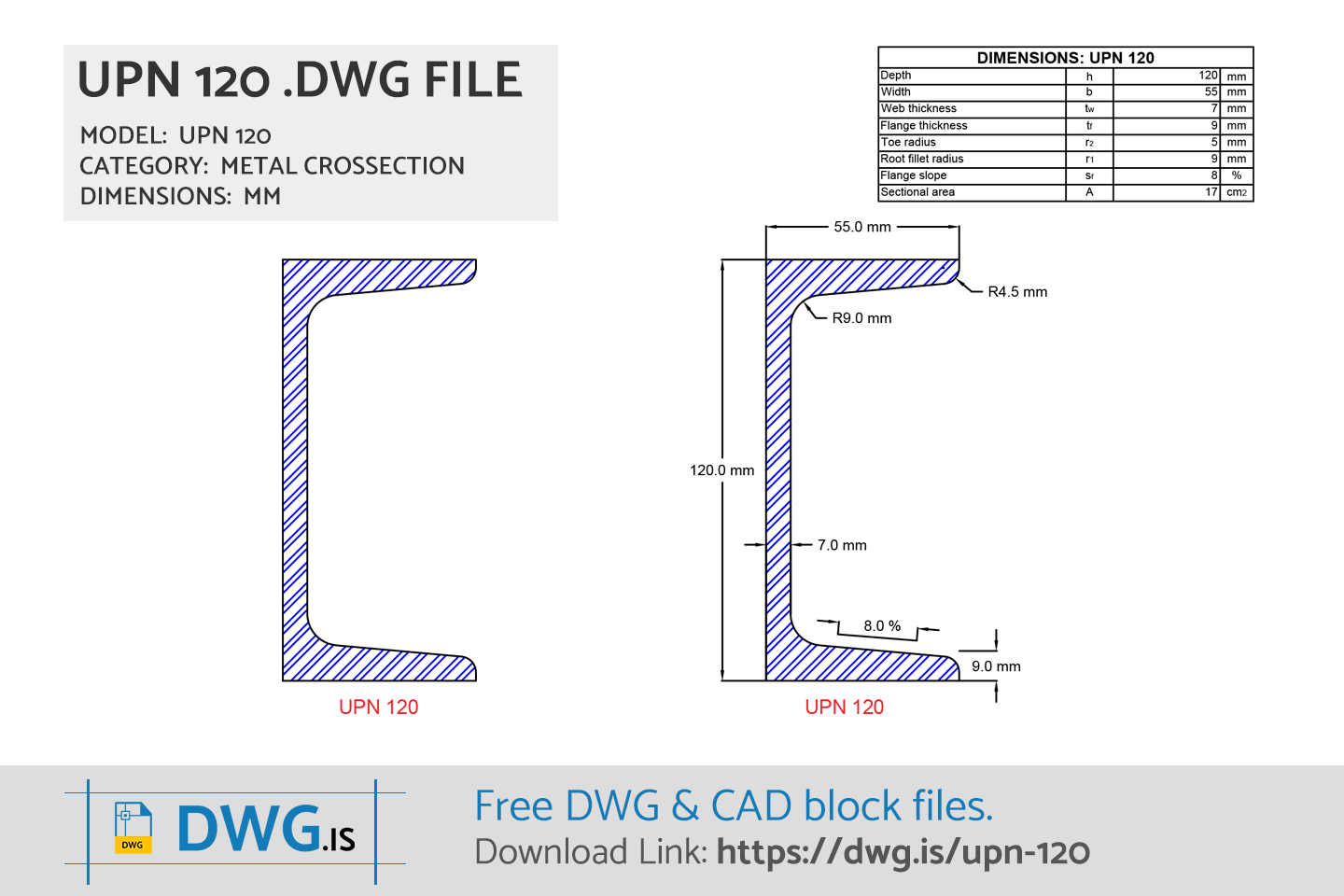

UPN 120 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 120 Dimensions
| UPN 120 Size | |
|---|---|
| Depth | 120.0 mm |
| Width | 55.0 mm |
| Web Thickness | 7.0 mm |
| Flange Thickness | 9.0 mm |
| Root Fillet Radius | 9.0 mm |
| Toe Radius | 4.5 mm |
| Distance | 27.5 mm |
| Sectional Area | 17.0 cm2 |
UPN 120 FAQ
-
What are UPN 120 size?
UPN 120 has dimensions: Depth 120.0 mm, Width 55.0 mm, Web Thickness 7.0 mm, Flange Thickness 9.0 mm, Root Fillet Radius 9.0 mm, Toe Radius 4.5 mm, Distance 27.5 mm, Sectional Area 17.0 cm2.
