HEA 120 DWG File contains the detailed technical specifications for HEA 120 European Standard Wide Flange H beams. The depth of the beams is 114mm, with a width of 120mm and a web thickness of 5mm. The flange thickness is 8mm, with an inner flange depth of 98mm and a root fillet radius of 12mm. The distance between the two flanges is 20mm and the sectional area is 25.3cm2. The DWG file provides precise and accurate measurements for the design and construction of HEA 120 European Standard Wide Flange H beams.

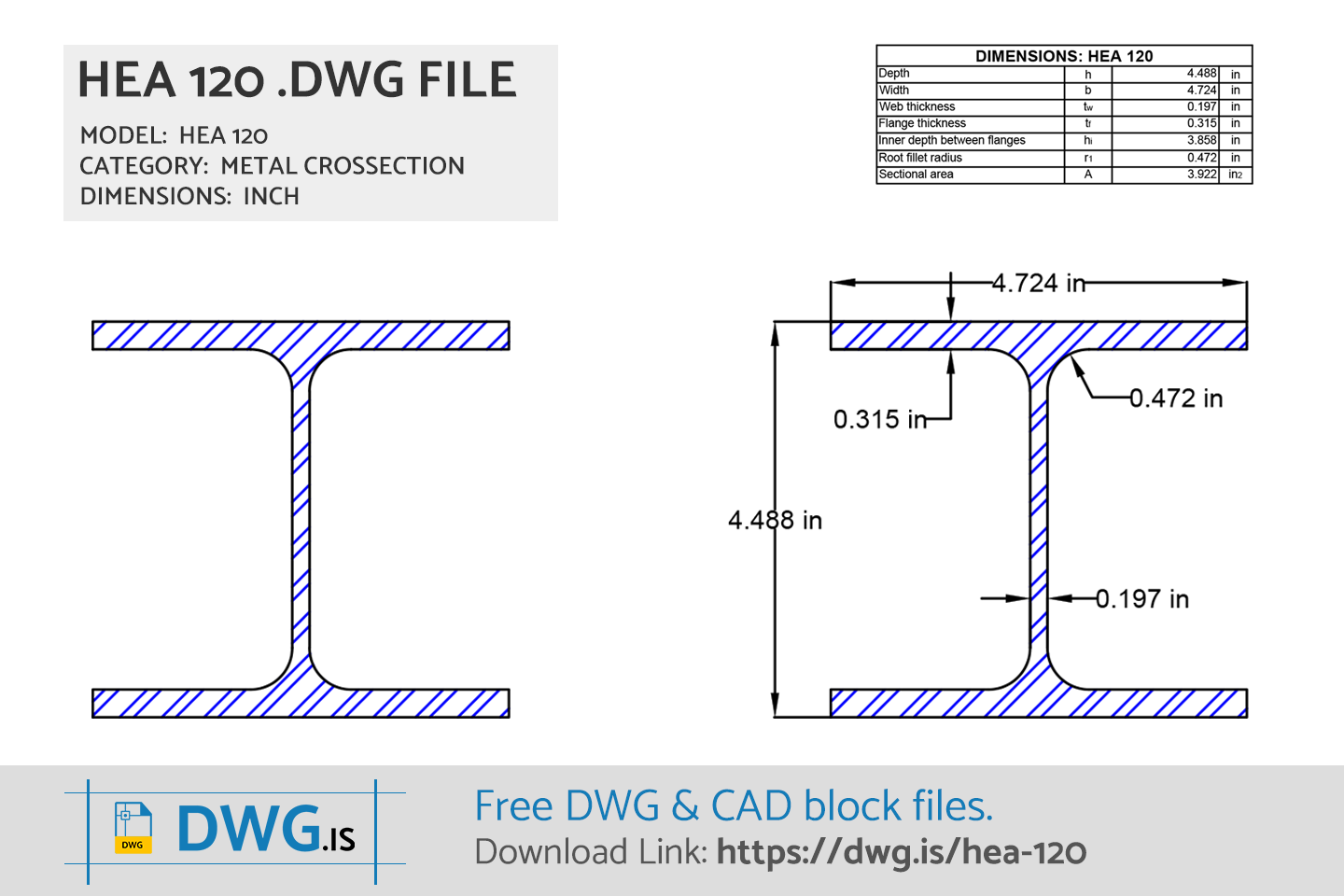

HEA 120 AutoCAD Block
HEA 120 Free CAD Block File Downloads
HEA 120 DWG File DownloadDWG DOWNLOAD ⇓

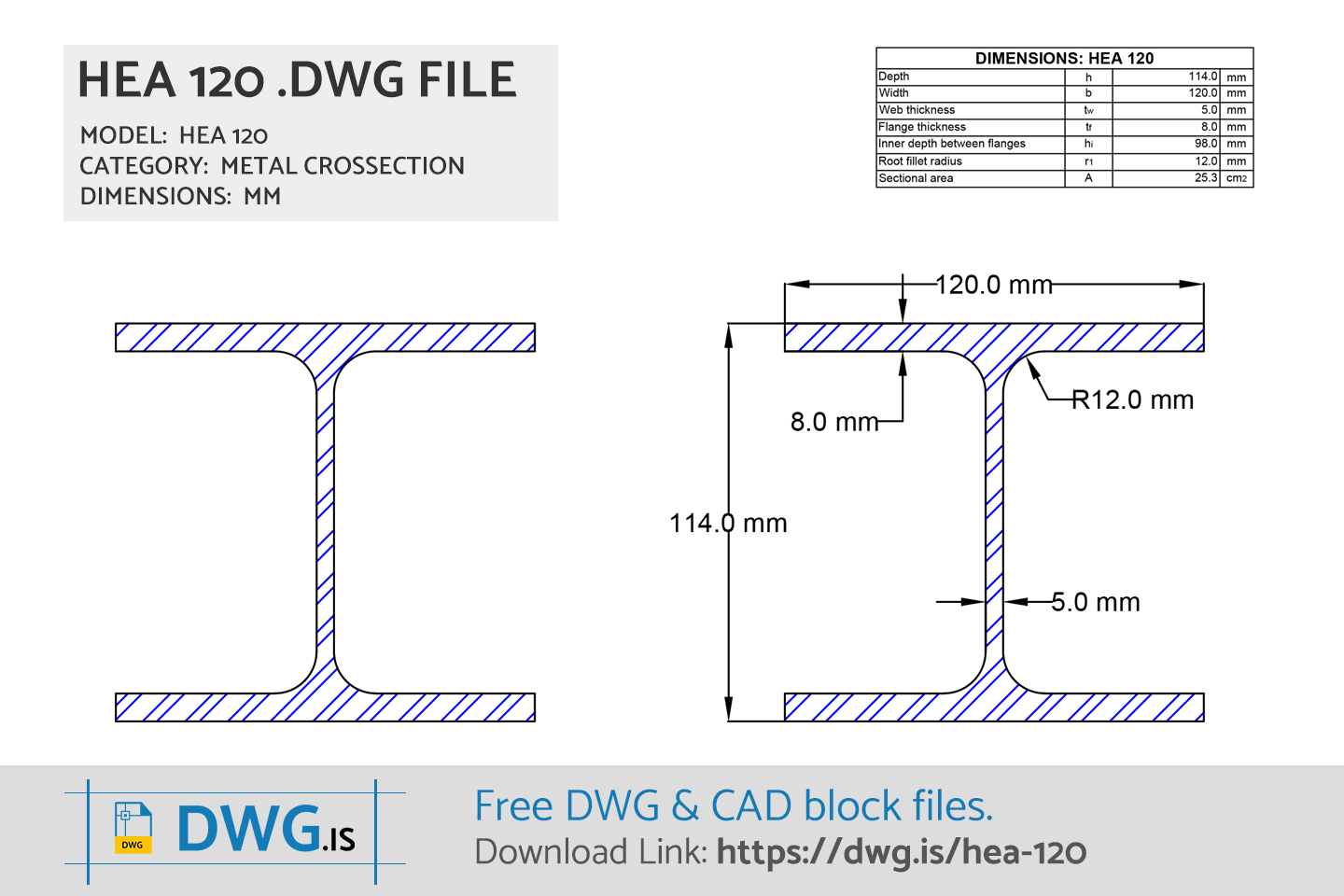

HEA 120 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 120 Dimensions
| HEA 120 Size | |
|---|---|
| Depth | 114.0 mm |
| Width | 120.0 mm |
| Web Thickness | 5.0 mm |
| Flange Thickness | 8.0 mm |
| Flange Inner Depth | 98.0 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 20.0 mm |
| Sectional Area | 25.3 cm2 |
HEA 120 FAQ
-
What are HEA 120 size?
HEA 120 has dimensions: Depth 114.0 mm, Width 120.0 mm, Web Thickness 5.0 mm, Flange Thickness 8.0 mm, Flange Inner Depth 98.0 mm, Root Fillet Radius 12.0 mm, Distance 20.0 mm, Sectional Area 25.3 cm2.
