This UPN 180 Tapered Flange Channel is an engineering component used in a variety of applications. The cross-section free DWG file contains all the necessary dimensions to ensure a successful build. With a depth of 180 mm, a width of 70 mm and a web thickness of 8 mm, this component is robustly constructed.
The flange thickness is 11 mm, with a root fillet radius of 11 mm and a toe radius of 5.5 mm. The distance between the two flanges is 35 mm and the sectional area is 28 cm2. This component is highly durable and can be used in a variety of industrial applications.

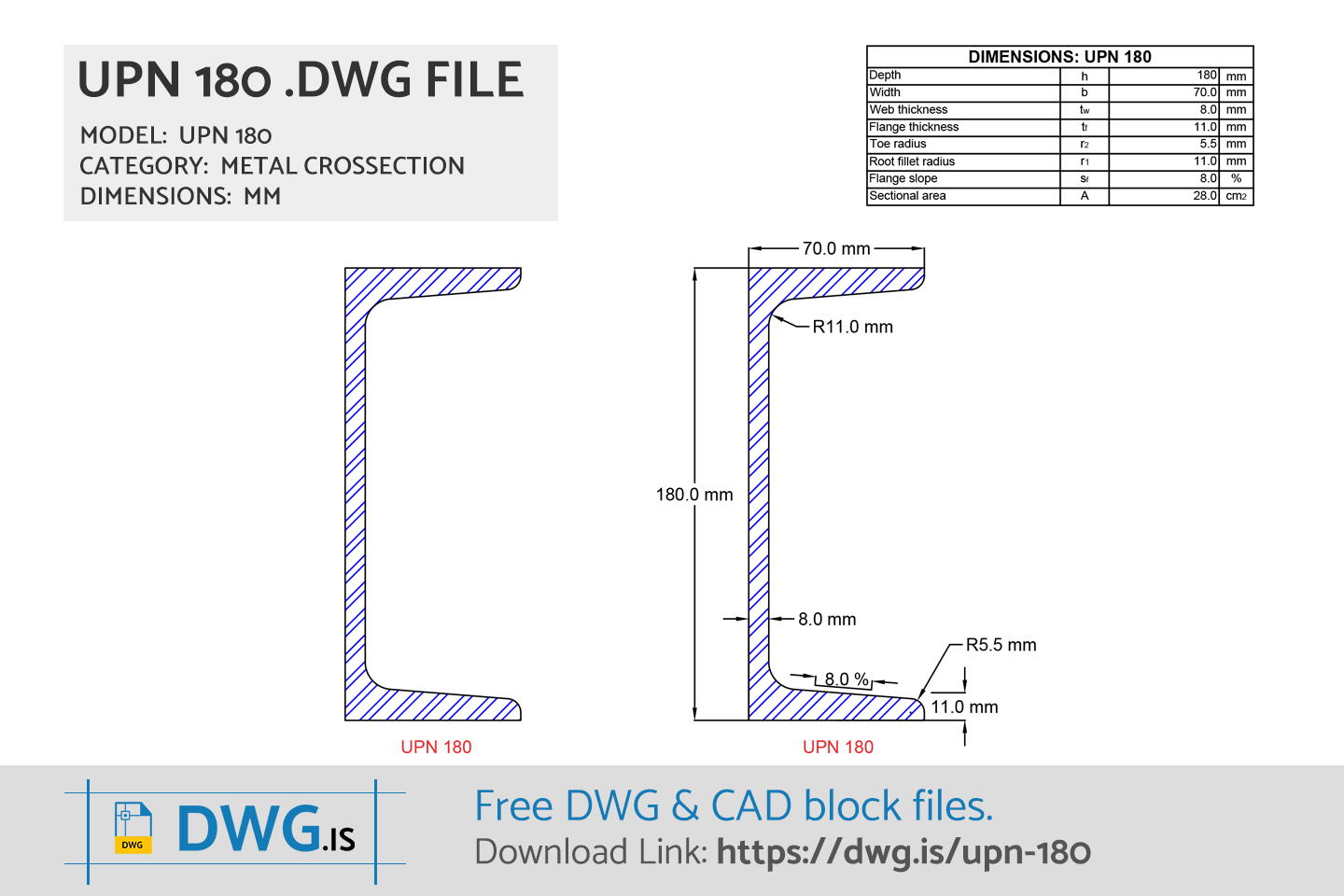

UPN 180 AutoCAD Block
UPN 180 Free CAD Block File Downloads
UPN 180 DWG File DownloadDWG DOWNLOAD ⇓
UPN 180 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 180 Dimensions
| UPN 180 Size | |
|---|---|
| Depth | 180.0 mm |
| Width | 70.0 mm |
| Web Thickness | 8.0 mm |
| Flange Thickness | 11.0 mm |
| Root Fillet Radius | 11.0 mm |
| Toe Radius | 5.5 mm |
| Distance | 35.0 mm |
| Sectional Area | 28.0 cm2 |
UPN 180 FAQ
-
What are UPN 180 size?
UPN 180 has dimensions: Depth 180.0 mm, Width 70.0 mm, Web Thickness 8.0 mm, Flange Thickness 11.0 mm, Root Fillet Radius 11.0 mm, Toe Radius 5.5 mm, Distance 35.0 mm, Sectional Area 28.0 cm2.
