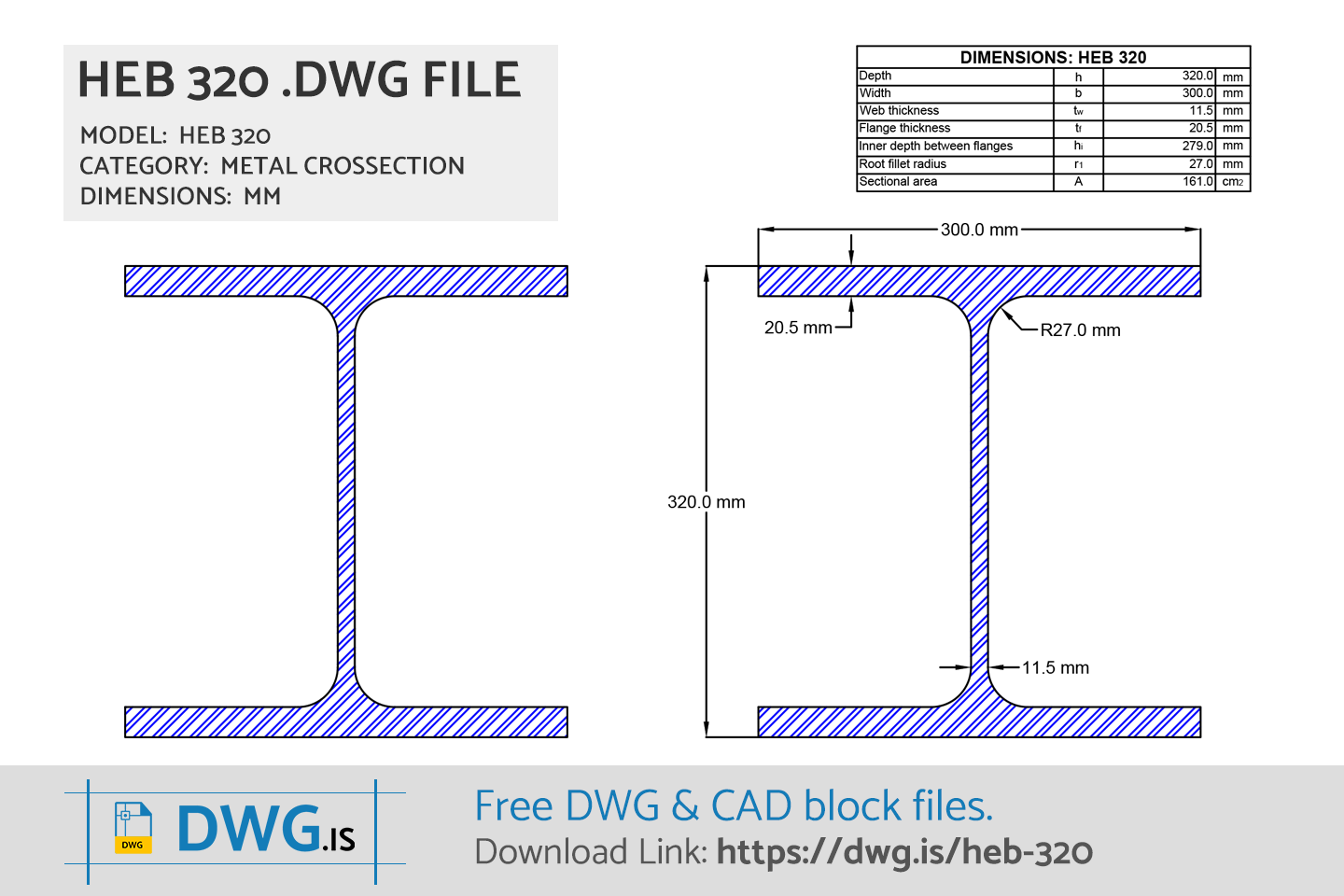

HEB 320 AutoCAD Block
HEB 320 Free CAD Block File Downloads
HEB 320 DWG File DownloadDWG DOWNLOAD ⇓
HEB 320 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 320 Dimensions
| HEB 320 Size | |
|---|---|
| Depth | 320.0 mm |
| Width | 300.0 mm |
| Web Thickness | 11.5 mm |
| Flange Thickness | 20.5 mm |
| Flange Inner Depth | 279.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 225.0 mm |
| Sectional Area | 161.3 cm2 |
HEB 320 FAQ
-
What are HEB 320 size?
HEB 320 has dimensions: Depth 320.0 mm, Width 300.0 mm, Web Thickness 11.5 mm, Flange Thickness 20.5 mm, Flange Inner Depth 279.0 mm, Root Fillet Radius 27.0 mm, Distance 225.0 mm, Sectional Area 161.3 cm2.
