IPE 400 steel beam cross-section free DWG file provides an economical and efficient solution for construction. It meets the Euronorm 19-57 and DIN 1025-5 standards, and has a depth of 400 mm, width of 180 mm and web thickness of 8.6 mm.
The flange thickness is 13.5 mm, inner depth between flanges is 373 mm, root fillet radius is 21 mm and distance is 35 mm. The sectional area of this beam is 84.46 cm2. It is a strong and durable beam that can be used in any construction project. It is easy to install and is a cost-effective solution for construction.
IPE 400 AutoCAD Block
IPE 400 Free CAD Block File Downloads
IPE 400 DWG File DownloadDWG DOWNLOAD ⇓

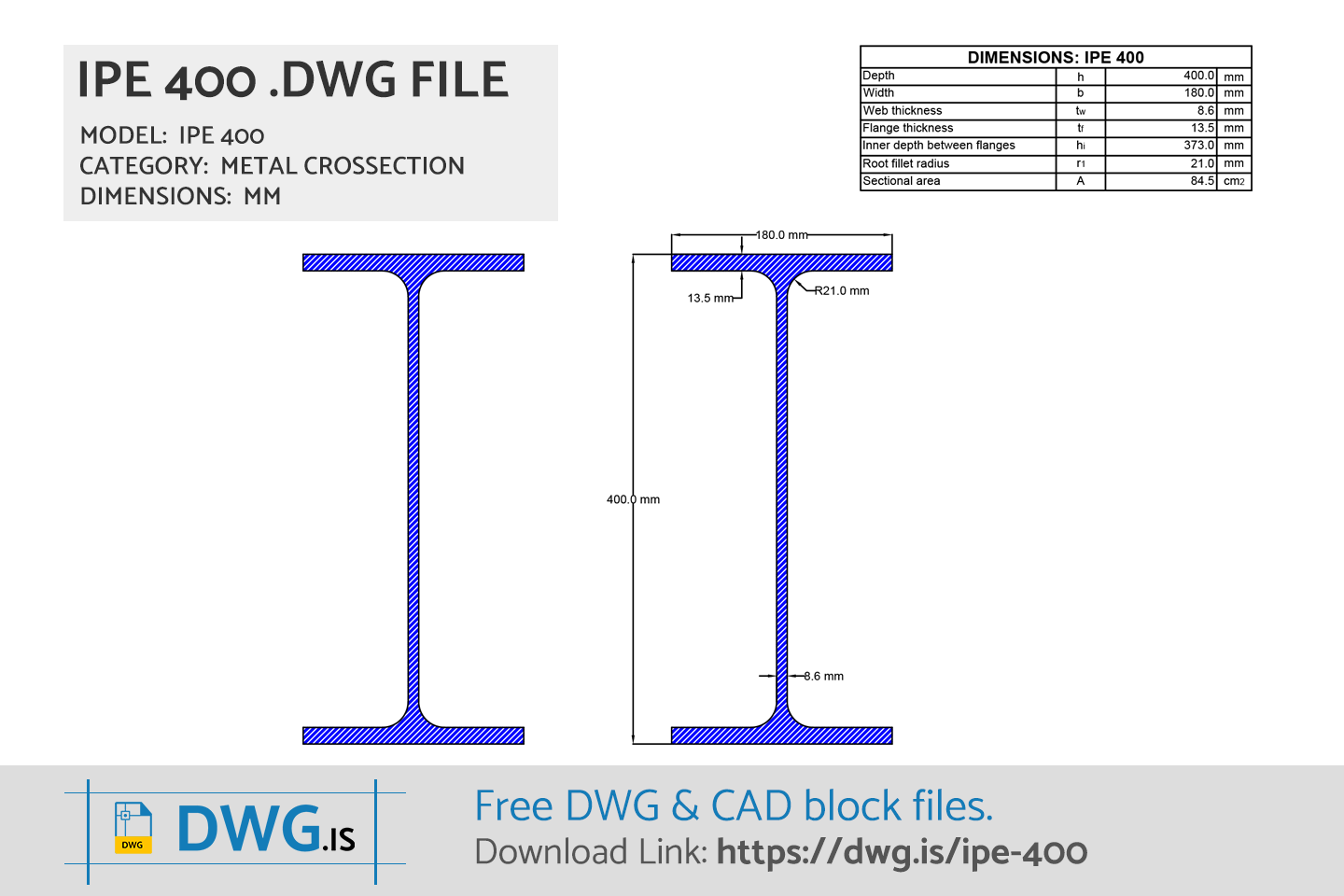

IPE 400 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 400 Dimensions
| IPE 400 Size | |
|---|---|
| Depth | 400.0 mm |
| Width | 180.0 mm |
| Web Thickness | 8.6 mm |
| Flange Thickness | 13.5 mm |
| Inner depth between flanges | 373.0 mm |
| Root Fillet Radius | 21.0 mm |
| Distance | 35.0 mm |
| Sectional Area | 84.46 cm2 |
IPE 400 FAQ
-
What are IPE 400 size?
IPE 400 has dimensions: Depth 400.0 mm, Width 180.0 mm, Web Thickness 8.6 mm, Flange Thickness 13.5 mm, Inner depth between flanges 373.0 mm, Root Fillet Radius 21.0 mm, Distance 35.0 mm, Sectional Area 84.46 cm2.
