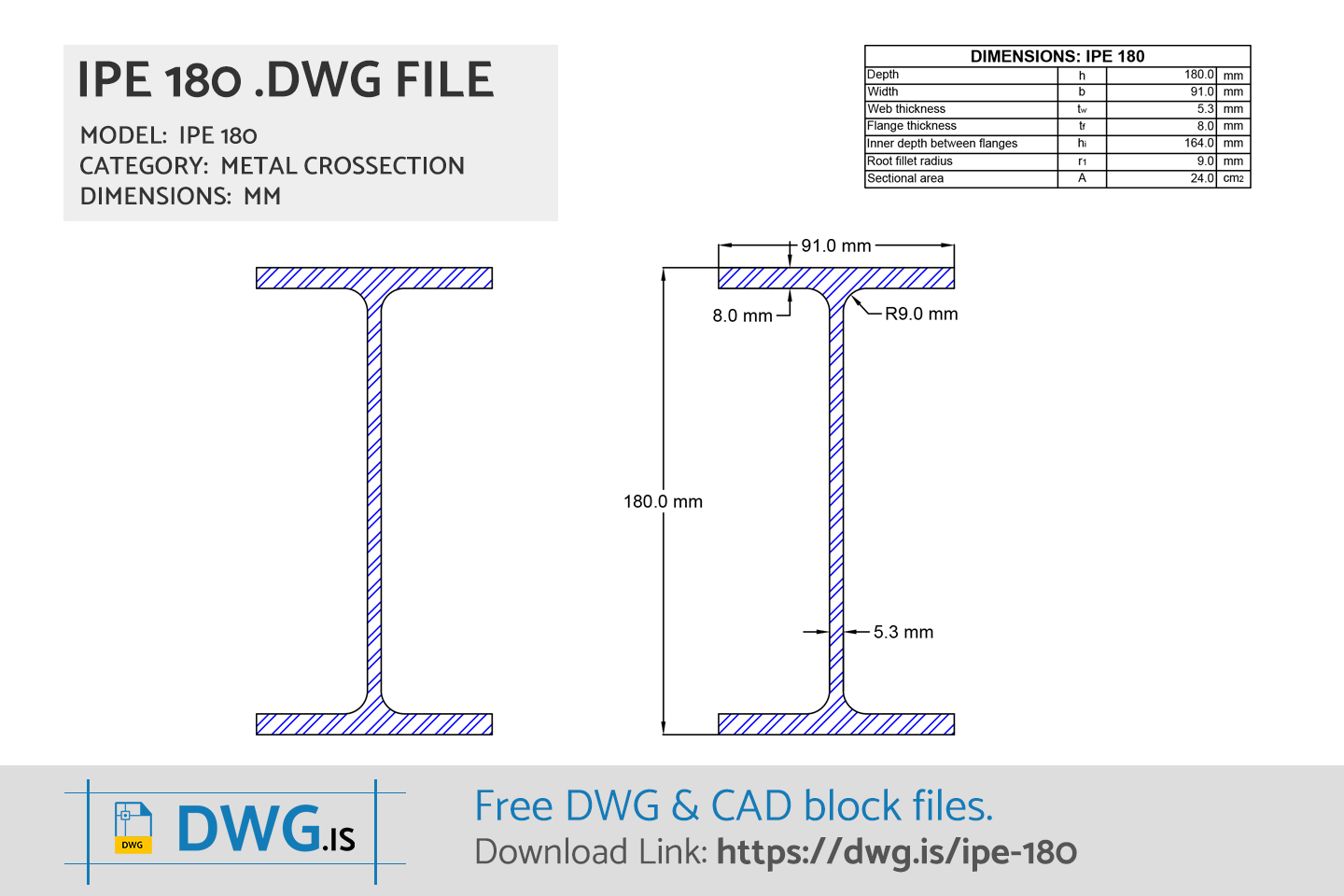

IPE 180 Steel Beasm Cross-section Free DWG File is a high-quality, detailed design that meets Euronorm 19-57 and DIN 1025-5 standards. It is a robust construction, with a depth of 180mm, width of 91mm and web thickness of 5.3mm.
The flange thickness is 8mm, inner depth between flanges is 164mm, and the root fillet radius is 9mm, with a distance of 17mm. The sectional area is 23.95 cm2. This design is perfect for a variety of applications and is sure to provide a reliable and secure structure.
IPE 180 AutoCAD Block
IPE 180 Free CAD Block File Downloads
IPE 180 DWG File DownloadDWG DOWNLOAD ⇓
IPE 180 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 180 Dimensions
| IPE 180 Size | |
|---|---|
| Depth | 180.0 mm |
| Width | 91.0 mm |
| Web Thickness | 5.3 mm |
| Flange Thickness | 8.0 mm |
| Inner depth between flanges | 164.0 mm |
| Root Fillet Radius | 9.0 mm |
| Distance | 17.0 mm |
| Sectional Area | 23.95 cm2 |
IPE 180 FAQ
-
What are IPE 180 size?
IPE 180 has dimensions: Depth 180.0 mm, Width 91.0 mm, Web Thickness 5.3 mm, Flange Thickness 8.0 mm, Inner depth between flanges 164.0 mm, Root Fillet Radius 9.0 mm, Distance 17.0 mm, Sectional Area 23.95 cm2.
