HEA 100 DWG file contains a detailed description of HEA 100 European Standard Wide Flange H Beams. The dimensions, specifications and tolerances are in accordance with the former standard Euronorm 53-62. The beam has a depth of 96mm, a width of 100mm, a web thickness of 5mm, a flange thickness of 8mm, an inner flange depth of 80mm, a root fillet radius of 12mm, a distance of 20mm and a sectional area of 21.2cm2. The DWG file contains all of the detailed measurements and diagrams for assembling the beam. It is an invaluable tool for engineers, architects, and construction professionals when designing and constructing projects with HEA 100 European Standard Wide Flange H Beams.

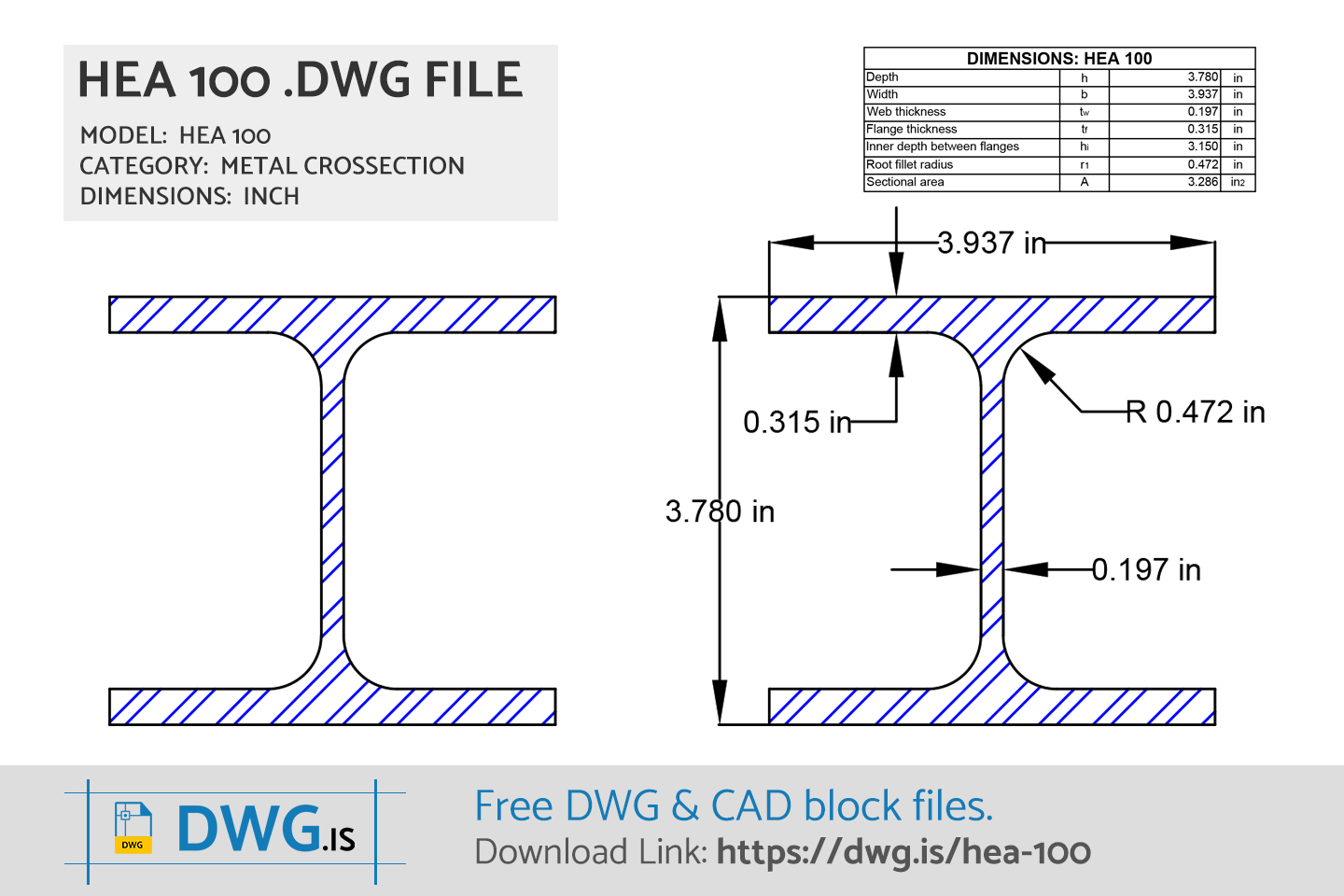

HEA 100 AutoCAD Block
HEA 100 Free CAD Block File Downloads
HEA 100 DWG File DownloadDWG DOWNLOAD ⇓
HEA 100 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEA 100 Dimensions
| HEA 100 Size | |
|---|---|
| Depth | 96.0 mm |
| Width | 100.0 mm |
| Web Thickness | 5.0 mm |
| Flange Thickness | 8.0 mm |
| Flange Inner Depth | 80.0 mm |
| Root Fillet Radius | 12.0 mm |
| Distance | 20.0 mm |
| Sectional Area | 21.2 cm2 |
HEA 100 FAQ
-
What are HEA 100 size?
HEA 100 has dimensions: Depth 96.0 mm, Width 100.0 mm, Web Thickness 5.0 mm, Flange Thickness 8.0 mm, Flange Inner Depth 80.0 mm, Root Fillet Radius 12.0 mm, Distance 20.0 mm, Sectional Area 21.2 cm2.
