UPN 280 Flange Channel Cross-section Free DWG File is a high-quality, comprehensive design that offers a great degree of versatility and efficiency. With a depth of 280 mm, a width of 95 mm, a web thickness of 10 mm, and a flange thickness of 15 mm, this design is ideal for a variety of applications.
Additionally, the root fillet radius is 15 mm, the toe radius is 7.5 mm, the distance is 47.5 mm, and the sectional area is 53.3 cm2. This design is sure to provide you with the reliable performance and durability you need in order to get the job done right.

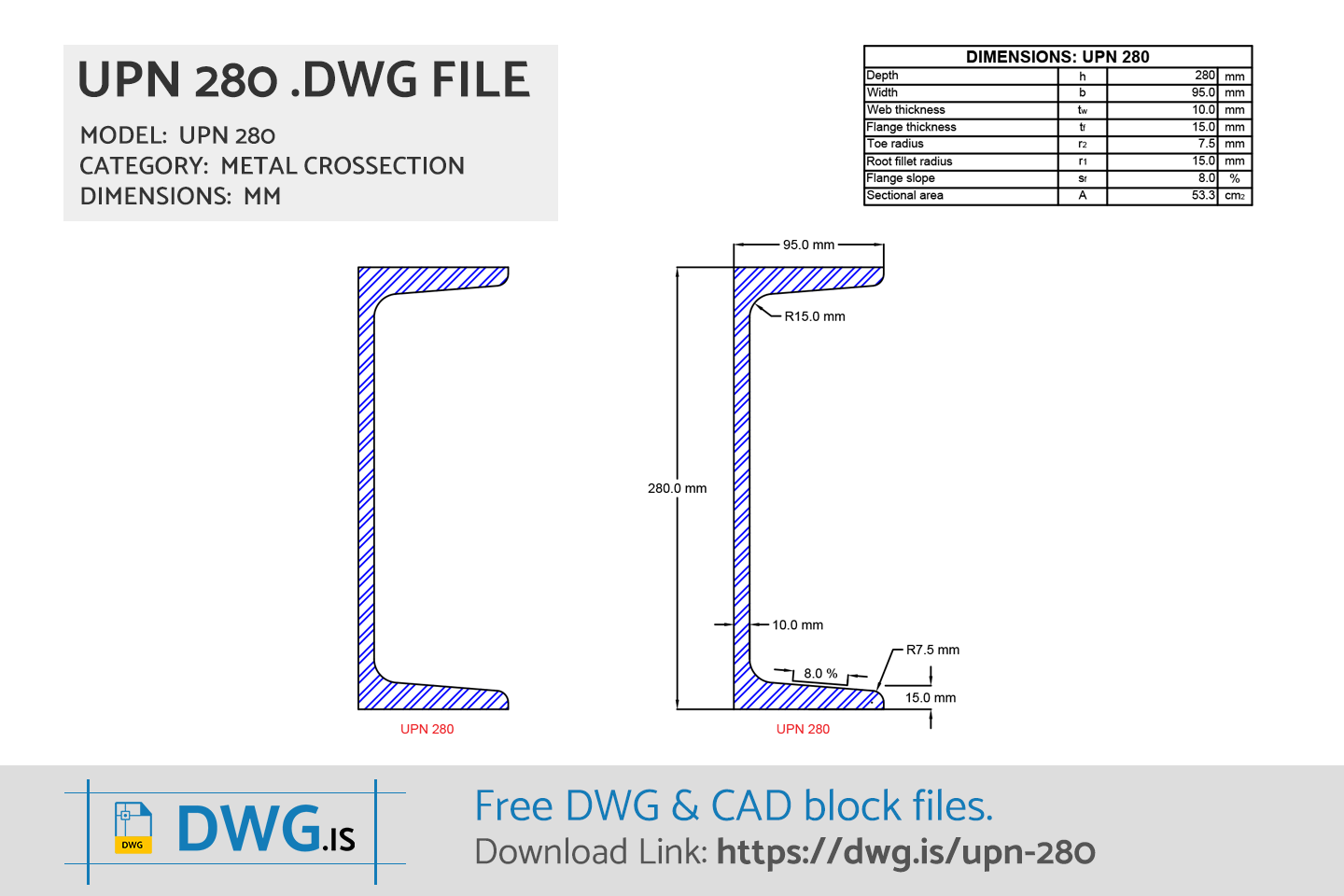

UPN 280 AutoCAD Block

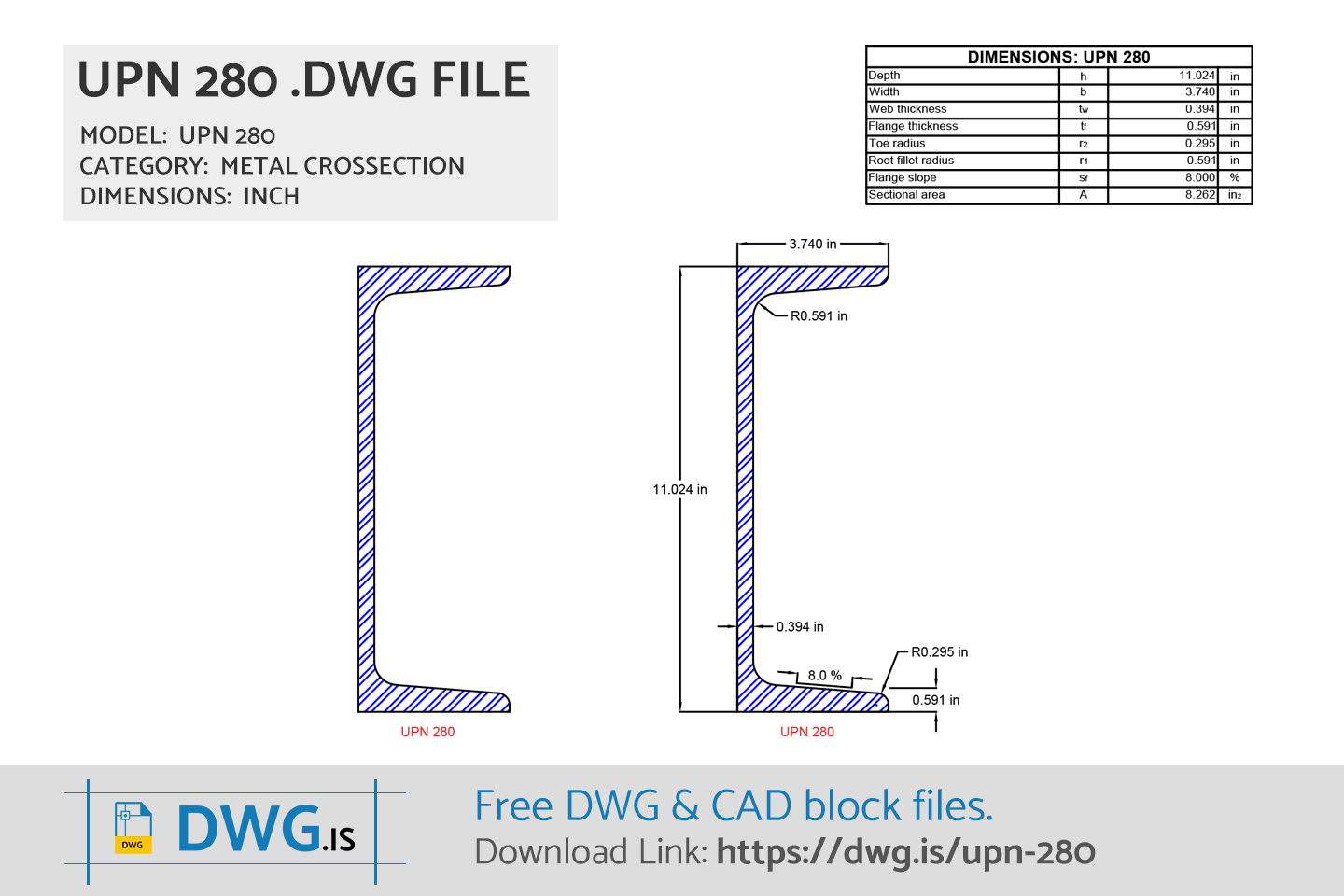

UPN 280 Free CAD Block File Downloads
UPN 280 DWG File DownloadDWG DOWNLOAD ⇓
UPN 280 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 280 Dimensions
| UPN 280 Size | |
|---|---|
| Depth | 280.0 mm |
| Width | 95.0 mm |
| Web Thickness | 10.0 mm |
| Flange Thickness | 15.0 mm |
| Root Fillet Radius | 15.0 mm |
| Toe Radius | 7.5 mm |
| Distance | 47.5 mm |
| Sectional Area | 53.3 cm2 |
UPN 280 FAQ
-
What are UPN 280 size?
UPN 280 has dimensions: Depth 280.0 mm, Width 95.0 mm, Web Thickness 10.0 mm, Flange Thickness 15.0 mm, Root Fillet Radius 15.0 mm, Toe Radius 7.5 mm, Distance 47.5 mm, Sectional Area 53.3 cm2.
