UPN 300 Tapered Flange Channel Cross-section Free DWG File is perfect for any construction project. It has a depth of 300 mm, a width of 100 mm, a web thickness of 10 mm, a flange thickness of 16 mm, a root fillet radius of 16 mm, a toe radius of 8 mm, and a distance of 50 mm.
UPN 300 DWG File has a sectional area of 58.8 cm2 and is made from high-grade steel. It is designed to provide strength and stability to any structure and can be used to construct residential, commercial, and industrial buildings. With its tapered flange, it is able to provide extra strength and stability and is perfect for any project.

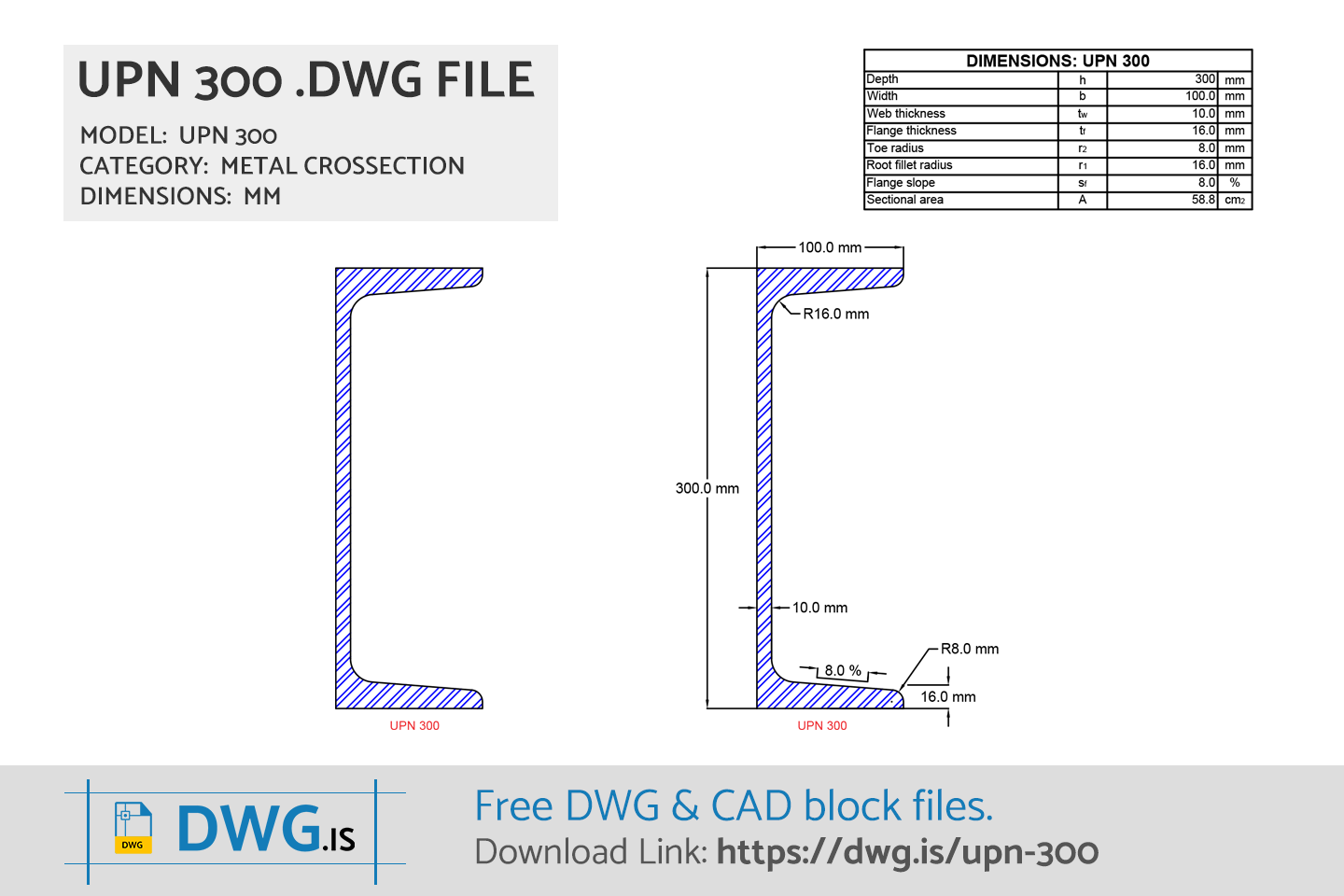

UPN 300 AutoCAD Block
UPN 300 Free CAD Block File Downloads
UPN 300 DWG File DownloadDWG DOWNLOAD ⇓
UPN 300 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 300 Dimensions
| UPN 300 Size | |
|---|---|
| Depth | 300.0 mm |
| Width | 100.0 mm |
| Web Thickness | 10.0 mm |
| Flange Thickness | 16.0 mm |
| Root Fillet Radius | 16.0 mm |
| Toe Radius | 8.0 mm |
| Distance | 50.0 mm |
| Sectional Area | 58.8 cm2 |
UPN 300 FAQ
-
What are UPN 300 size?
UPN 300 has dimensions: Depth 300.0 mm, Width 100.0 mm, Web Thickness 10.0 mm, Flange Thickness 16.0 mm, Root Fillet Radius 16.0 mm, Toe Radius 8.0 mm, Distance 50.0 mm, Sectional Area 58.8 cm2.
