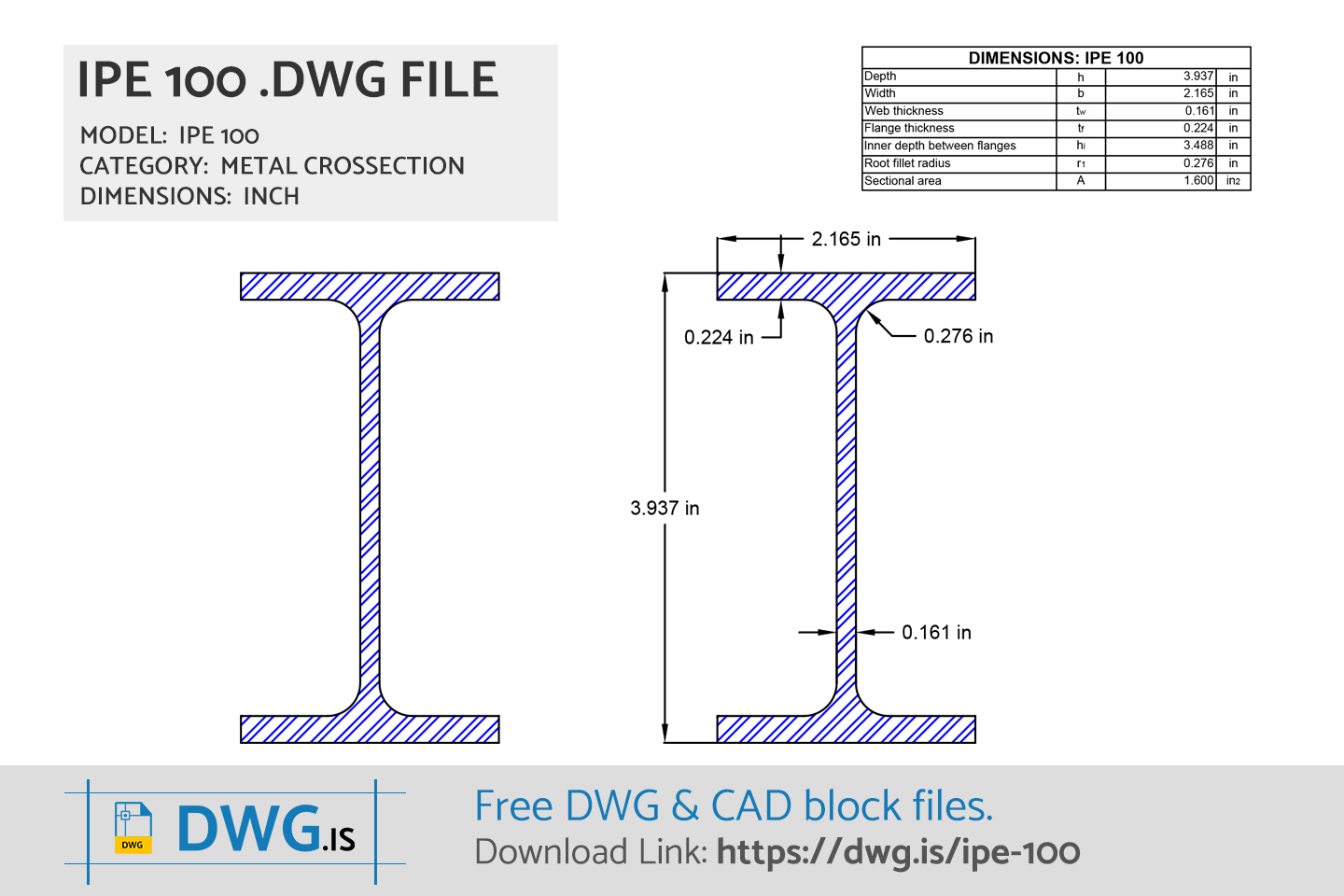

This is a detailed drawing of an IPE 100 Steel Beam Cross-section Free DWG File. This drawing is a standard representation of the Euronorm 19-57; DIN 1025-5 standards, designed with precision and accuracy.
The depth is 100 mm, width is 55 mm and web thickness is 4.1 mm. The flange thickness is 5.7 mm and the inner depth between flanges is 88.6 mm. There is a root fillet radius of 7 mm with a distance of 13 mm and a sectional area of 10.32 cm2. This DWG file is perfect for use in a wide range of industrial and construction applications.
IPE 100 AutoCAD Block
IPE 100 Free CAD Block File Downloads
IPE 100 DWG File DownloadDWG DOWNLOAD ⇓
IPE 100 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
IPE 100 Dimensions
| IPE 100 Size | |
|---|---|
| Depth | 100.0 mm |
| Width | 55.0 mm |
| Web Thickness | 4.1 mm |
| Flange Thickness | 5.7 mm |
| Inner depth between flanges | 88.6 mm |
| Root Fillet Radius | 7.0 mm |
| Distance | 13.0 mm |
| Sectional Area | 10.32 cm2 |
IPE 100 FAQ
-
What are IPE 100 size?
IPE 100 has dimensions: Depth 100.0 mm, Width 55.0 mm, Web Thickness 4.1 mm, Flange Thickness 5.7 mm, Inner depth between flanges 88.6 mm, Root Fillet Radius 7.0 mm, Distance 13.0 mm, Sectional Area 10.32 cm2.
