HEA 100 Free CAD Block
HEA 100 DWG file contains a detailed description of HEA 100 European Standard Wide Flange H Beams. The dimensions, specifications and tolerances are in accordance with the former standard Euronorm 53-62. The beam has a depth of 96mm, a width of 100mm, a web thickness of 5mm, a flange thickness of 8mm, an inner flange depth of 80mm, a root fillet radius of 12mm, a distance of 20mm and a sectional area of 21.2cm2. The DWG file contains all of the detailed measurements and diagrams for assembling the beam. It is an invaluable tool for engineers, architects, and construction professionals when designing and constructing projects with HEA 100 European Standard Wide Flange H Beams.

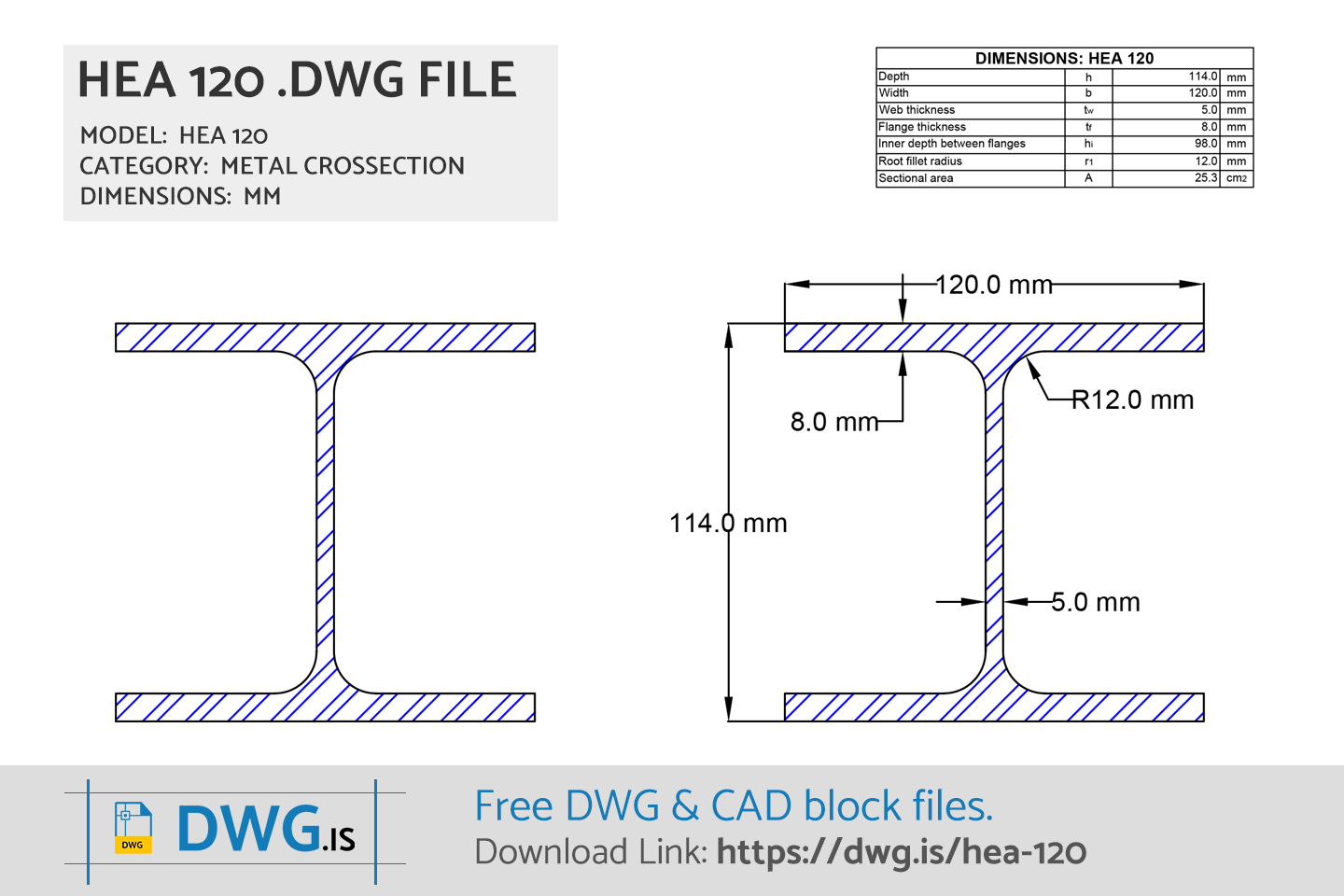

HEA 120 Free CAD Block
HEA 120 DWG File contains the detailed technical specifications for HEA 120 European Standard Wide Flange H beams. The depth of the beams is 114mm, with a width of 120mm and a web thickness of 5mm. The flange thickness is 8mm, with an inner flange depth of 98mm and a root fillet radius of 12mm. The distance between the two flanges is 20mm and the sectional area is 25.3cm2. The DWG file provides precise and accurate measurements for the design and construction of HEA 120 European Standard Wide Flange H beams.
HEA 140 Free CAD Block
HEA 140 DWG file for HEA 140 European Standard Wide Flange H Beams. The dimensions and specifications of the beams are in accordance with the former standard Euronorm 53-62. The beams have a depth of 133 mm, width of 140 mm, web thickness of 5.5 mm, flange thickness of 8.5 mm, flange inner depth of 116 mm, root fillet radius of 12 mm, and a sectional area of 31.4 cm2. The distance between flanges is 21 mm. These beams are made of high-grade steel, with a corrosion-resistant coating, and can handle heavy loads with ease. They are perfect for a wide range of construction projects, from residential homes to large bridges and buildings. These HEA 140 beams are an economical and reliable option for achieving structural integrity.
HEA 160 Free CAD Block
HEA 160 DWG file contains the specifications for HEA 160 European Standard Wide Flange H Beams in accordance with the former standard Euronorm 53-62. It includes the dimensions of the beam, such as the depth (152mm), width (160mm), web thickness (6mm), flange thickness (9mm), flange inner depth (134mm), root fillet radius (15mm), distance (24mm), and sectional area (38.8 cm2). This DWG file is perfect for any construction project requiring HEA 160 European Standard Wide Flange H Beams. It is a highly detailed representation of the beam, allowing for precise measurements and calculations.

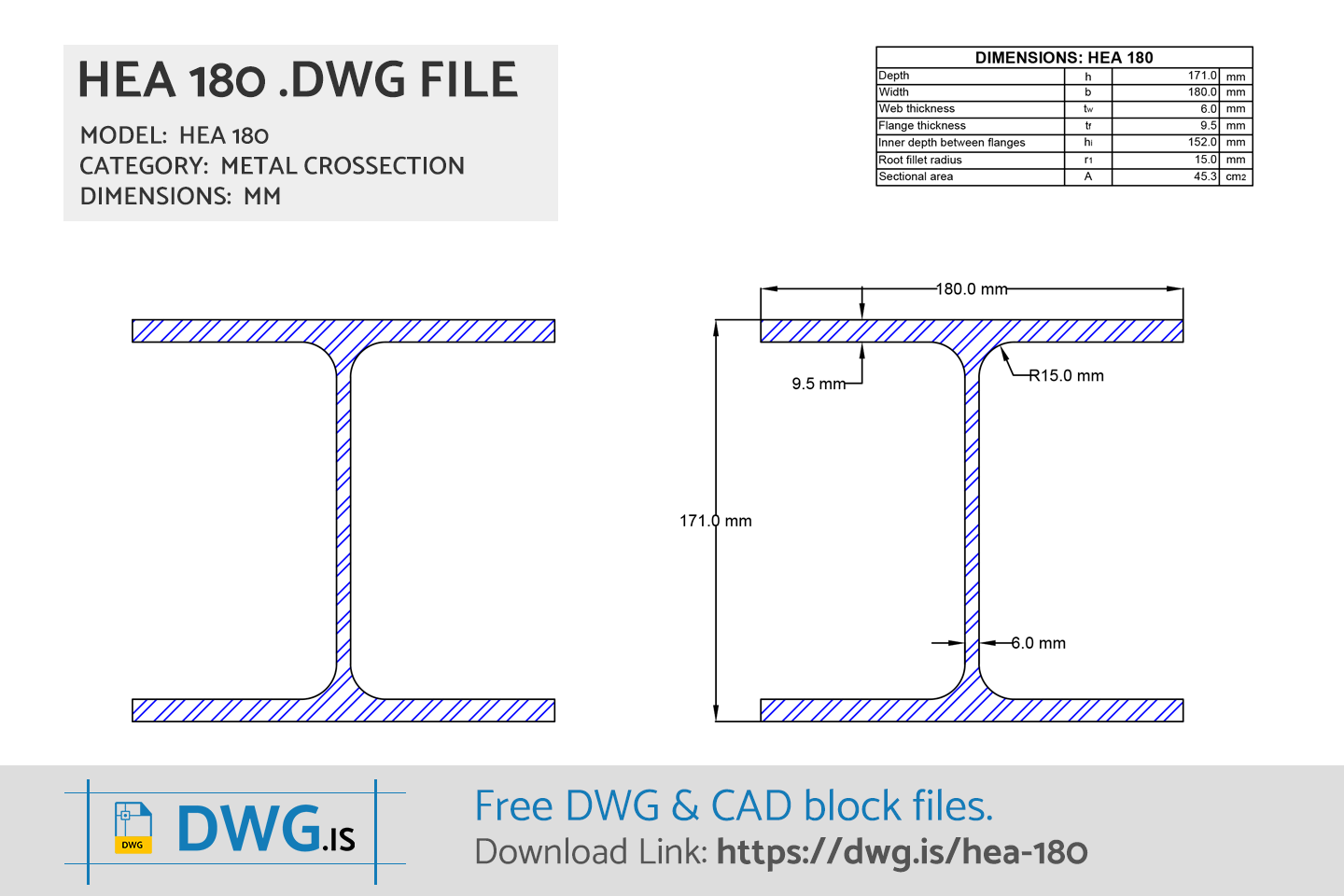

HEA 180 Free CAD Block
HEA 180 DWG File for HEA 180 European Standard Wide Flange H Beams is a detailed drawing of the beams in accordance with former standard Euronorm 53-62. It features a depth of 171mm, a width of 180mm, and a web thickness of 6mm. The flange thickness is 9.5mm, the flange inner depth is 152mm, the root fillet radius is 15mm, and the distance is 25mm. The sectional area of the beams is 45.3cm2. The DWG File is suitable for a variety of structural applications, including bridges, buildings, and other general purposes. It is a highly durable and reliable design that is sure to provide years of reliable performance.

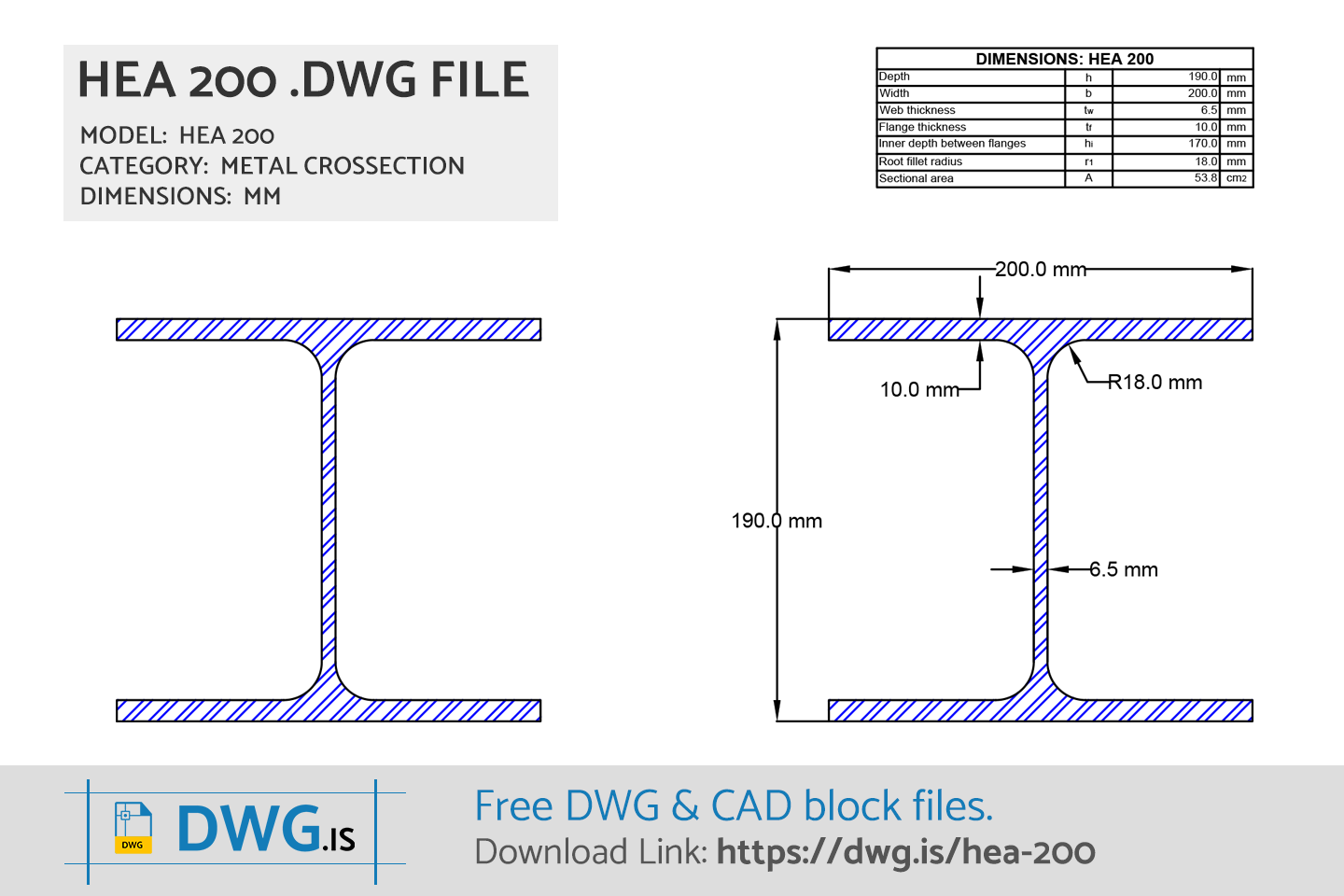

HEA 200 Free CAD Block
HEA 200 DWG File features dimensions and specifications for HEA 200 European Standard Wide Flange H Beams in accordance with former standard Euronorm 53-62. The beam has a depth of 190 mm, width of 200 mm, web thickness of 6.5 mm, flange thickness of 10 mm, flange inner depth of 170 mm, root fillet radius of 18 mm, distance of 28 mm and a sectional area of 53.8 cm2. This beam is suitable for a variety of applications including but not limited to bridges, offshore structures, buildings and towers. It is made from high-quality metal and is designed to withstand the test of time and any extreme weather conditions. This beam is designed to meet the highest standards of safety and performance.

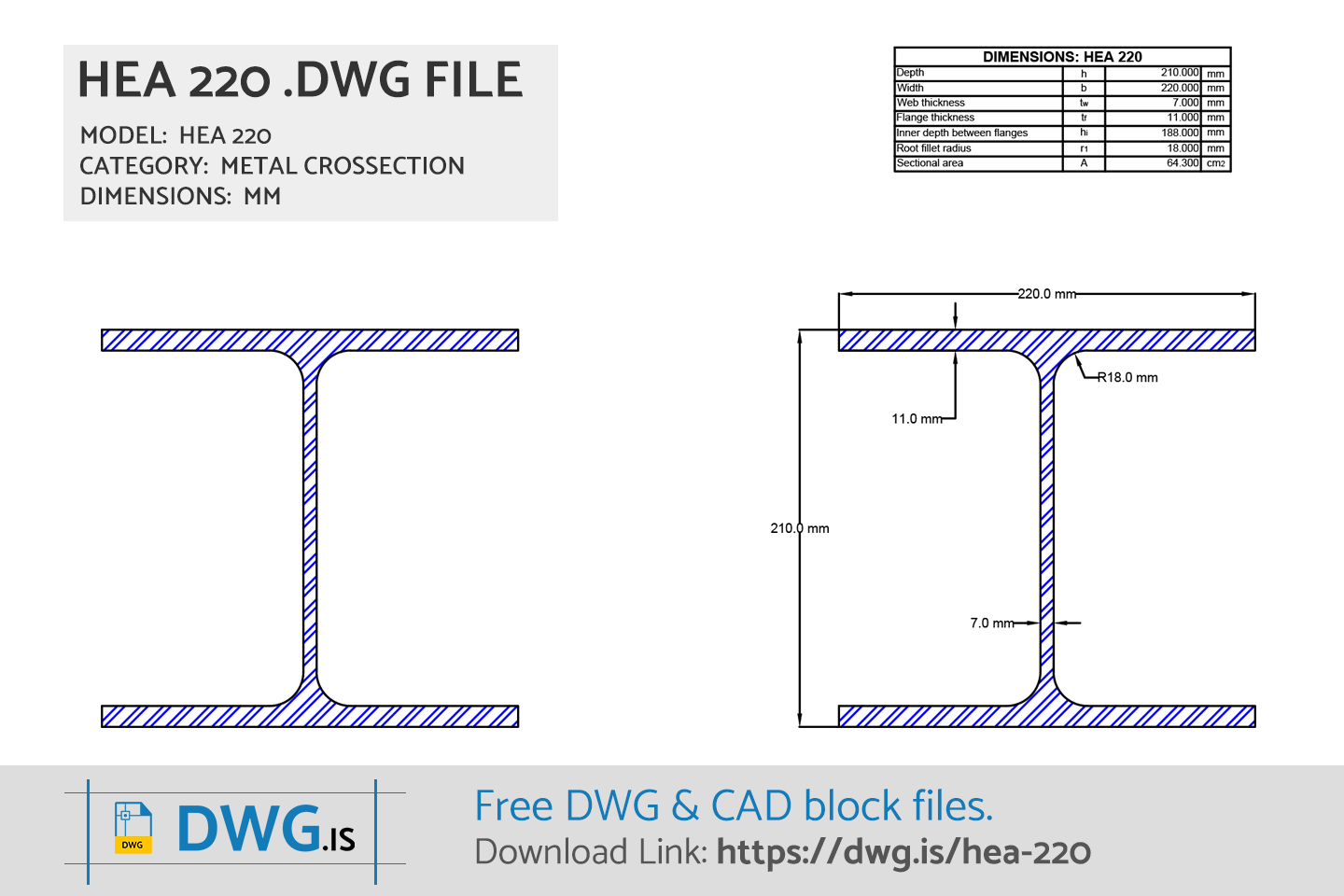

HEA 220 Free CAD Block
HEA 220 DWG file contains the European Standard Wide Flange H Beams with dimensions and specifications in accordance with former standard Euronorm 53-62. This design has a depth of 210 mm, width of 220 mm, web thickness of 7 mm, flange thickness of 11 mm, flange inner depth of 188 mm, root fillet radius of 18 mm, distance of 29 mm, and a sectional area of 64.3 cm2. This design is ideal for a variety of industrial applications, and is made of strong and durable material, ensuring it is capable of withstanding the elements and any stresses placed on it. This design is perfect for those looking for a reliable and sturdy solution.

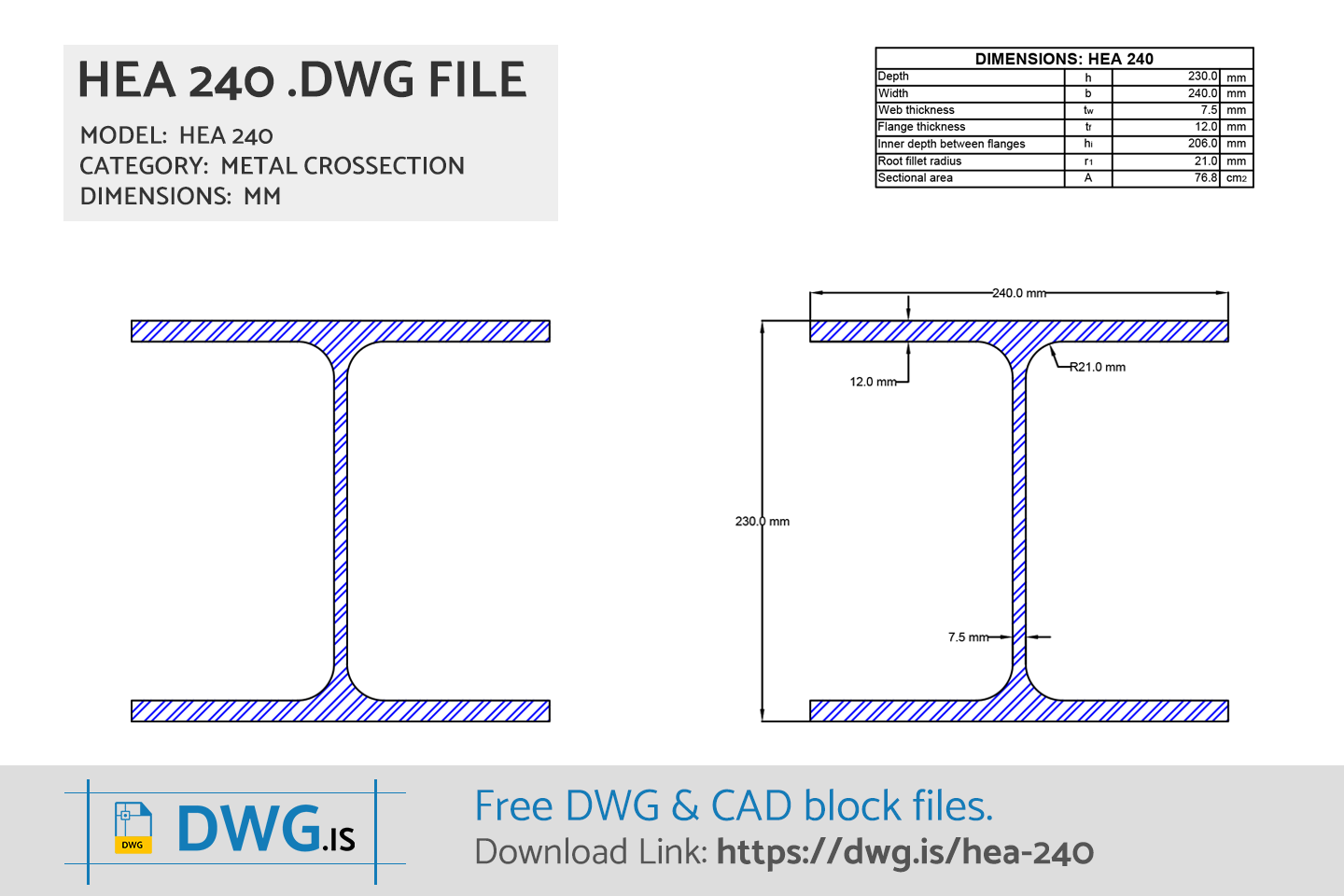

HEA 240 Free CAD Block
HEA 240 DWG file consists of the dimensions and specifications for HEA 240 European Standard Wide Flange H Beams in accordance with former standard Euronorm 53-62. The beam has a depth of 230 mm and a width of 240 mm with a web thickness of 7.5 mm and a flange thickness of 12 mm. The flange has an inner depth of 206 mm and a root fillet radius of 21 mm. The distance between the flange edges is 33 mm with a sectional area of 76.8 cm2. HEA 200 DWG file is ideal for engineers and architects who need the exact measurements for their designs and structures.

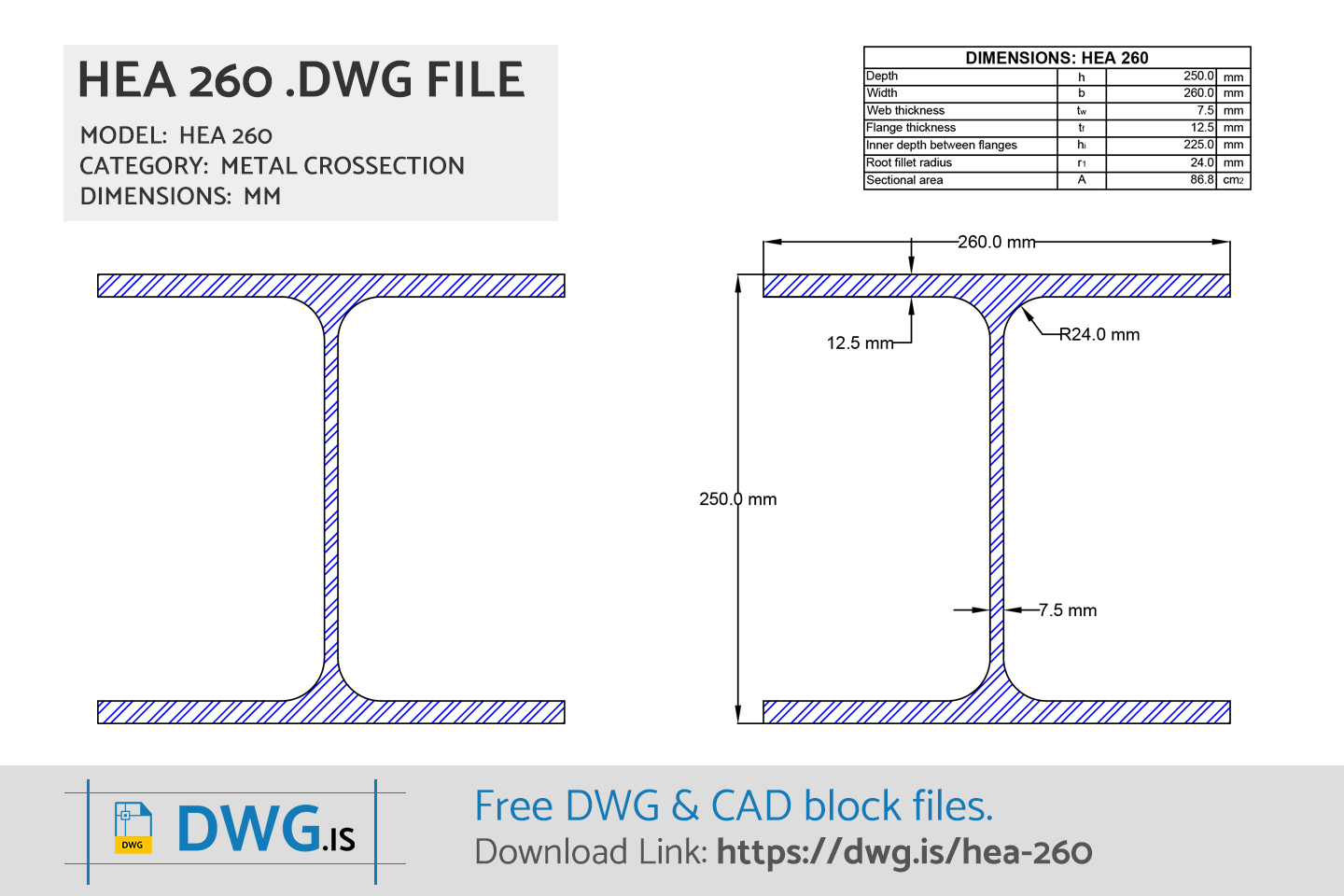

HEA 260 Free CAD Block
HEA 260 European Standard Wide Flange H beams are made of high-quality steel with a thickness of 7.5 mm and a width of 260 mm. They are designed to provide a sturdy and durable construction for your projects. The beams are also designed with a web thickness of 7.5 mm and a flange thickness of 12.5 mm. The beams also have a flange inner depth of 225 mm and a root fillet radius of 24 mm. The HEA 260 European Standard Wide Flange H beams are also designed with a distance of 37 mm and a sectional area of 86.8 cm2.

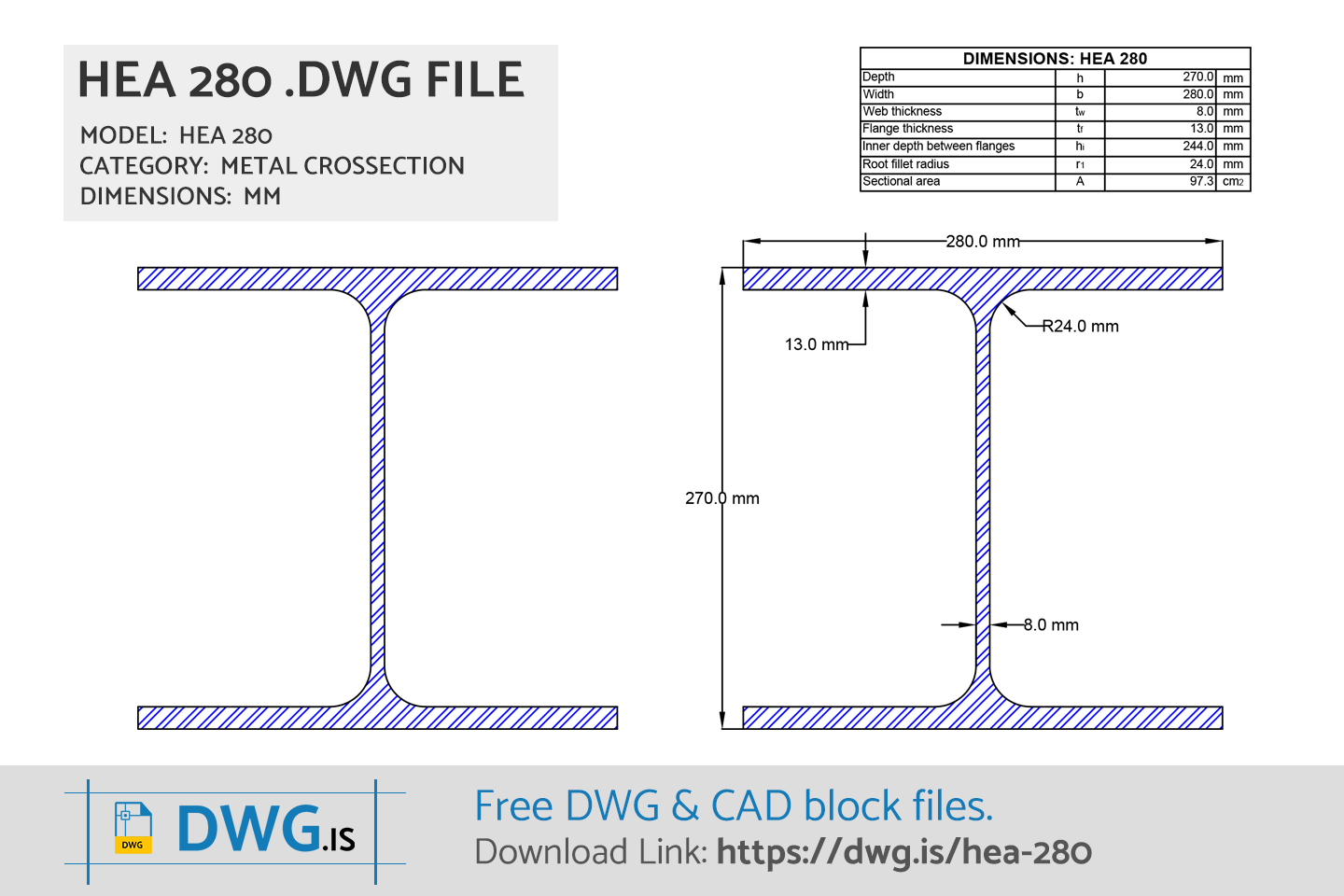

HEA 280 Free CAD Block
HEA 280 DWG file contains the detailed dimensions and specifications for the European Standard Wide Flange H Beams HEA 280. It includes the dimensions of the beam such as the depth of 270 mm, width of 280 mm, web thickness of 8 mm, flange thickness of 13 mm, flange inner depth of 244 mm, root fillet radius of 24 mm, distance of 37 mm and sectional area of 97.3 cm2. All these specifications are in accordance with the former standard Euronorm 53-62 and ensure the utmost precision and quality in the production of these beams. It is an invaluable resource for architects, engineers and other professionals to ensure the best possible results in their work.

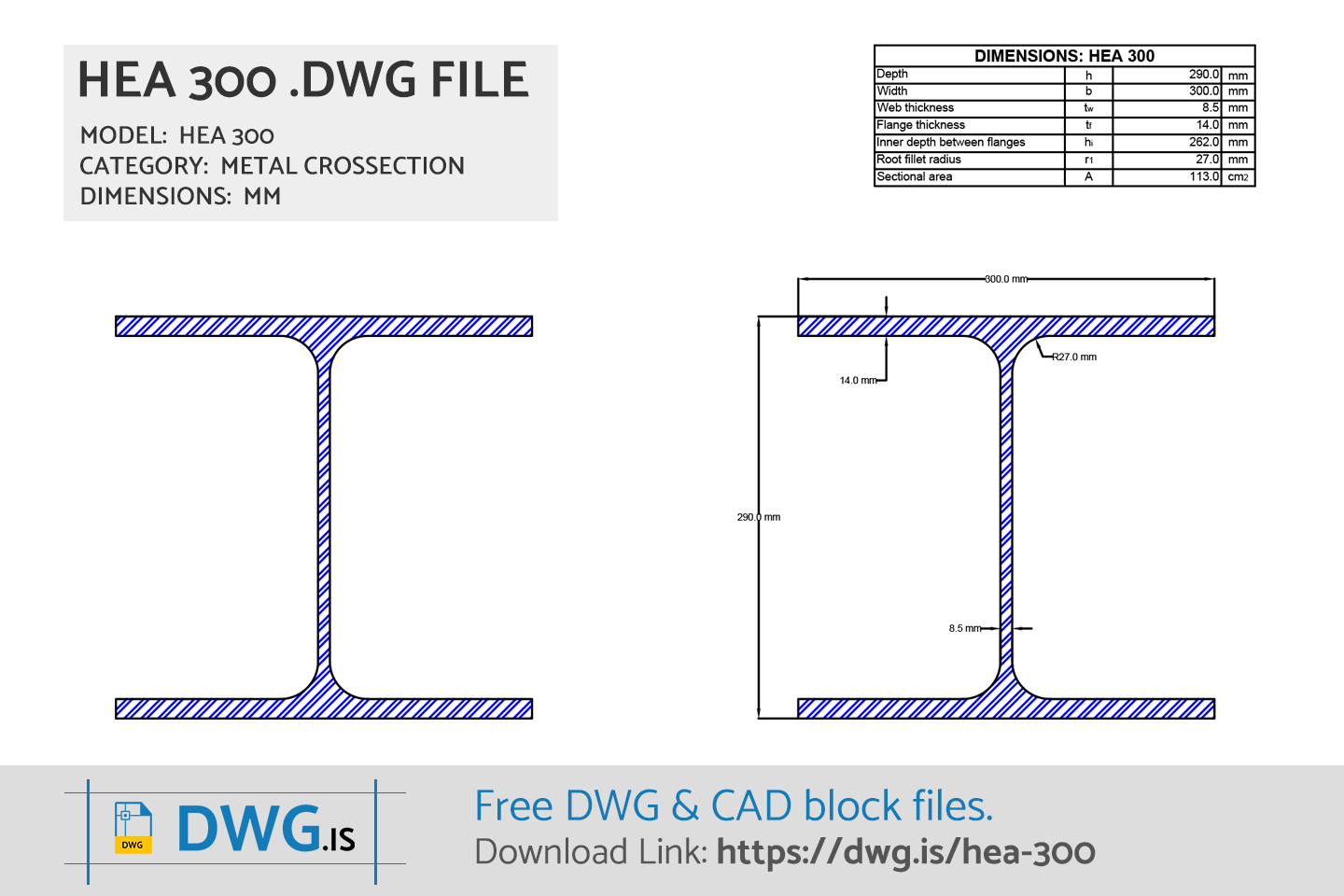

HEA 300 Free CAD Block
HEA 300 DWG file contains detailed specifications of a European Standard Wide Flange H Beam with a depth of 290 mm, a width of 300 mm, a web thickness of 8.5 mm, a flange thickness of 14 mm, a flange inner depth of 262 mm, a root fillet radius of 27 mm, a distance of 41 mm and a sectional area of 113 cm2. This product is in accordance with the former standard Euronorm 53-62. This file also includes detailed drawings of the beam and is ready to use for engineering projects. It is a high-quality product that is reliable and highly durable. The beam is perfect for a variety of applications and offers superior strength and stability.
HEA 320 Free CAD Block
HEA 320 DWG file contains the European Standard Wide Flange H Beams of size HEA 320. The dimensions, specifications, and requirements are in accordance with the former standard Euronorm 53-62. This file includes the depth of 310 mm, width of 300 mm, web thickness of 9 mm, flange thickness of 15.5 mm, flange inner depth of 279 mm, root fillet radius of 27 mm, distance of 43 mm, and sectional area of 124 cm2. With this DWG file, it is easy to design and construct strong and durable structures that meet the specifications of the European Standard Wide Flange H Beams.
HEA 340 Free CAD Block
HEA 340 DWG File for HEA 340 European Standard Wide Flange Beam is a 3D-drawing detailing all the dimensions and specifications of the beam in accordance with the former standard Euronorm 53-62. It has a depth of 330 mm, a width of 300 mm, and web and flange thicknesses of 9.5 and 16.5 mm, respectively. The flange inner depth is 297 mm, while the root fillet radius is 27 mm. The distance between the flanges is 44 mm and the beam's sectional area is 133 cm2. The drawing provides a precise overview of the beam's measurements, making it easier to produce, install and maintain the beam. The DWG File for HEA 340 is an essential tool for any construction project that requires the use of this type of beam.
HEA 360 Free CAD Block
HEA 360 DWG file contains the detailed specifications for the HEA 360 European Standard Wide Flange H Beams, in accordance with former standard Euronorm 53-62. The beams feature a depth of 350 mm, a width of 300 mm and a web thickness of 10 mm. They also feature a flange thickness of 17.5 mm, a flange inner depth of 315 mm, a root fillet radius of 27 mm, a distance of 45 mm and a sectional area of 143 cm2. The DWG file details complete dimensions and specifications for the HEA 360 European Standard Wide Flange H Beams and is used to create models and drafts for construction projects and other applications.
