HEB 400 AutoCAD Block
HEB 400 Free CAD Block File Downloads
HEB 400 DWG File DownloadDWG DOWNLOAD ⇓

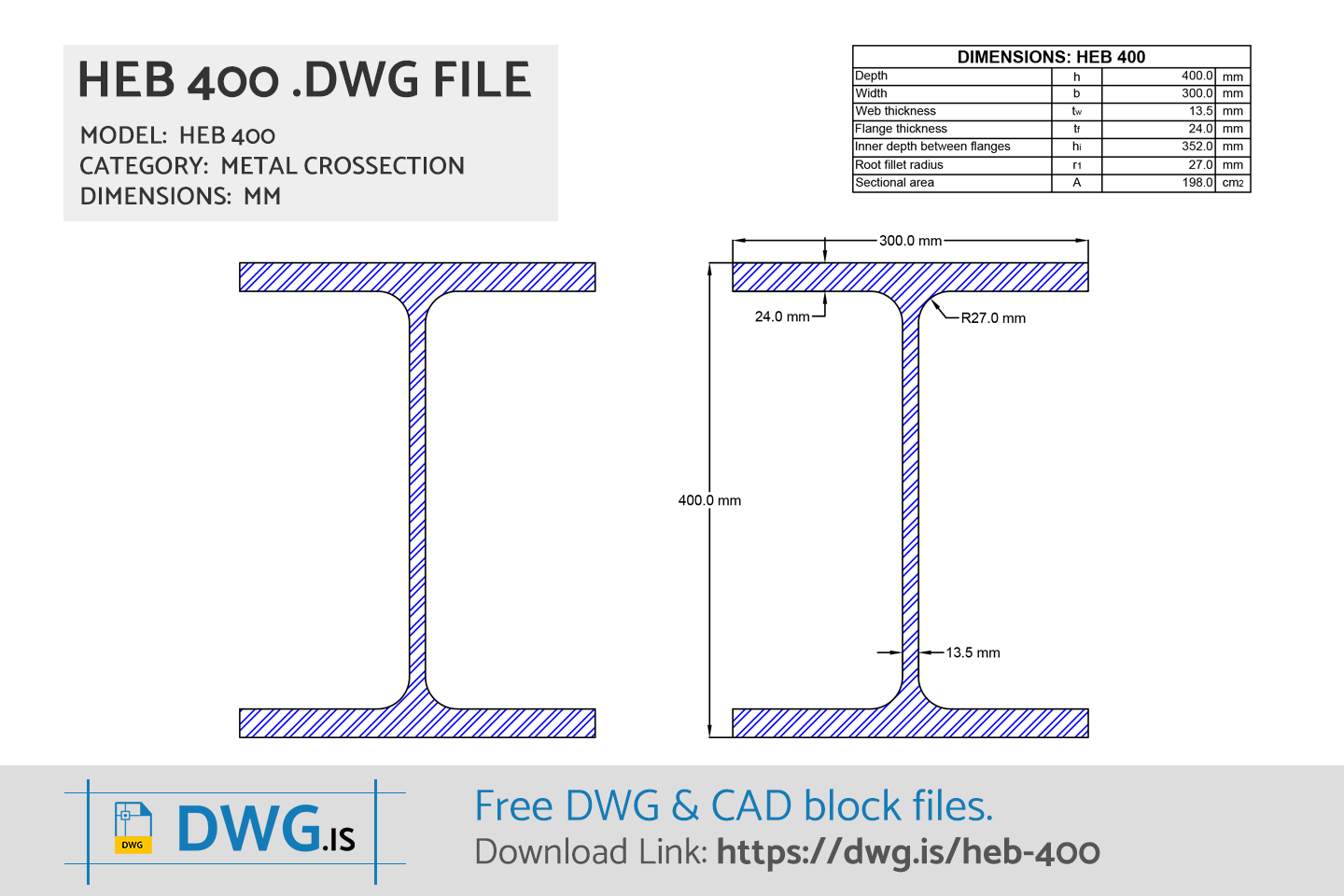

HEB 400 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 400 Dimensions
| HEB 400 Size | |
|---|---|
| Depth | 400.0 mm |
| Width | 300.0 mm |
| Web Thickness | 13.5 mm |
| Flange Thickness | 24.0 mm |
| Flange Inner Depth | 352.0 mm |
| Root Fillet Radius | 27.0 mm |
| Distance | 298.0 mm |
| Sectional Area | 197.8 cm2 |
HEB 400 FAQ
-
What are HEB 400 size?
HEB 400 has dimensions: Depth 400.0 mm, Width 300.0 mm, Web Thickness 13.5 mm, Flange Thickness 24.0 mm, Flange Inner Depth 352.0 mm, Root Fillet Radius 27.0 mm, Distance 298.0 mm, Sectional Area 197.8 cm2.
