HEB 160 AutoCAD Block
HEB 160 Free CAD Block File Downloads
HEB 160 DWG File DownloadDWG DOWNLOAD ⇓

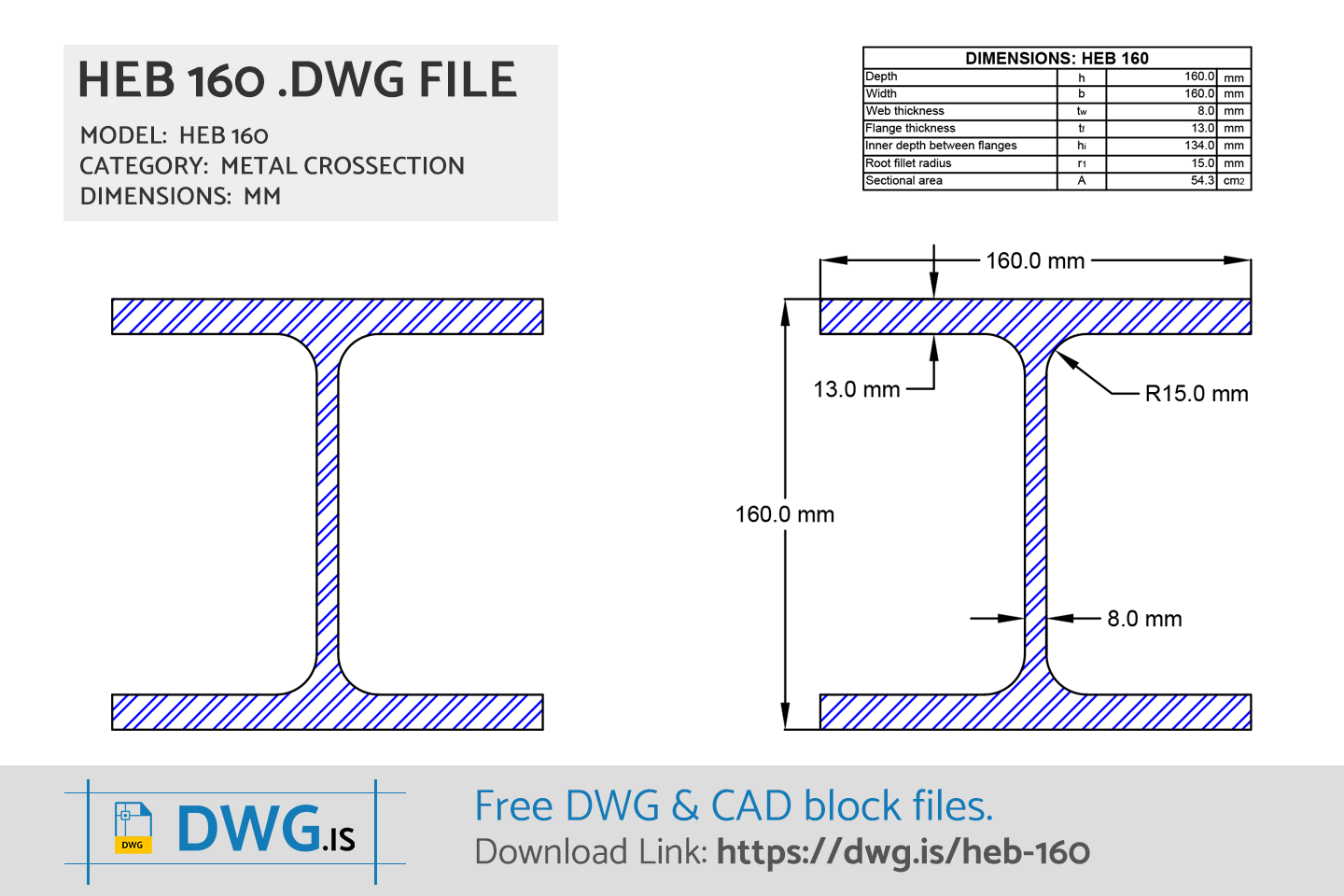

HEB 160 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
HEB 160 Dimensions
| HEB 160 Size | |
|---|---|
| Depth | 160.0 mm |
| Width | 160.0 mm |
| Web Thickness | 8.0 mm |
| Flange Thickness | 13.0 mm |
| Flange Inner Depth | 134.0 mm |
| Root Fillet Radius | 15.0 mm |
| Distance | 104.0 mm |
| Sectional Area | 54.3 cm2 |
HEB 160 FAQ
-
What are HEB 160 size?
HEB 160 has dimensions: Depth 160.0 mm, Width 160.0 mm, Web Thickness 8.0 mm, Flange Thickness 13.0 mm, Flange Inner Depth 134.0 mm, Root Fillet Radius 15.0 mm, Distance 104.0 mm, Sectional Area 54.3 cm2.
