This UPN 80 Tapered Flange Channel Cross-section Free DWG File is a detailed drawing of a cross section of a flange channel which has a depth of 80 mm, width of 45 mm, web thickness of 6 mm, flange thickness of 8 mm, root fillet radius of 8 mm, toe radius of 4 mm and a distance of 22.5 mm. The sectional area is 11 cm2.
UPN 80 DWG drawing is perfect for any project that requires a top-notch, detailed drawing of this type of channel. It is an ideal resource for any engineer or designer who needs an accurate drawing for their project.
UPN 80 AutoCAD Block
UPN 80 Free CAD Block File Downloads
UPN 80 DWG File DownloadDWG DOWNLOAD ⇓

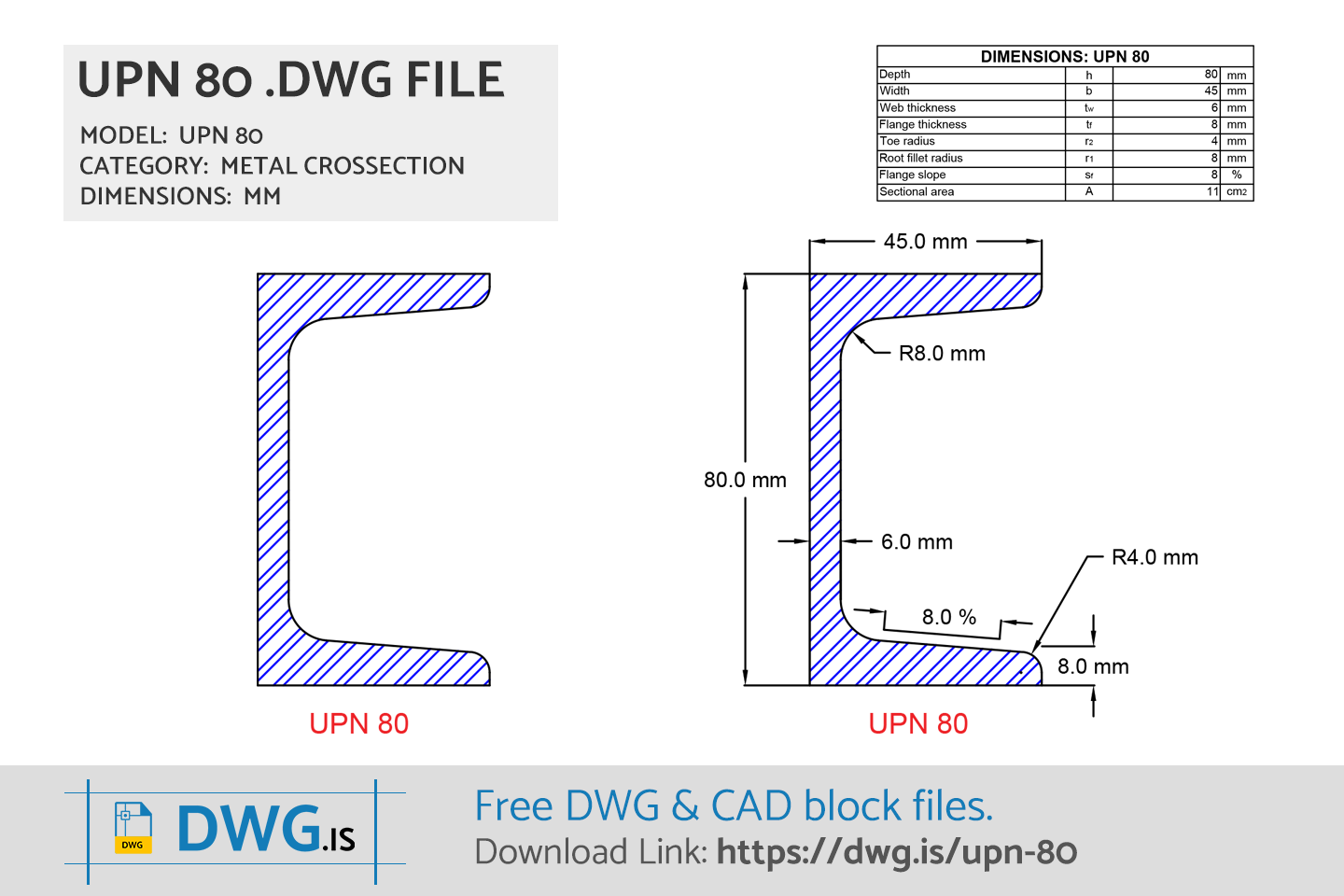

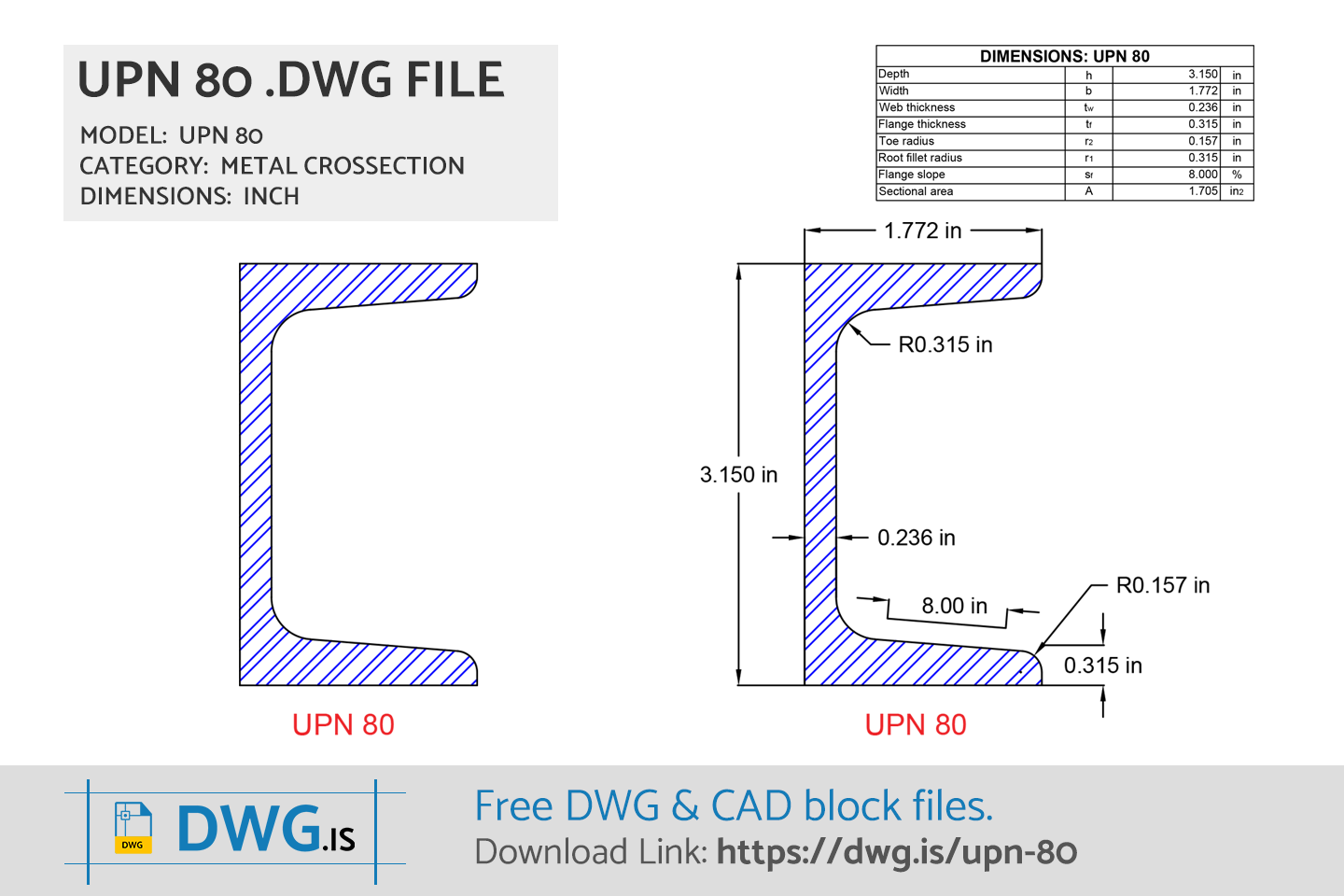

UPN 80 with dimension (mm) DWG File DownloadDWG DOWNLOAD ⇓
WITH DIMENSION (mm)
UPN 80 Dimensions
| UPN 80 Size | |
|---|---|
| Depth | 80.0 mm |
| Width | 45.0 mm |
| Web Thickness | 6.0 mm |
| Flange Thickness | 8.0 mm |
| Root Fillet Radius | 8.0 mm |
| Toe Radius | 4.0 mm |
| Distance | 22.5 mm |
| Sectional Area | 11.0 cm2 |
UPN 80 FAQ
-
What are UPN 80 size?
UPN 80 has dimensions: Depth 80.0 mm, Width 45.0 mm, Web Thickness 6.0 mm, Flange Thickness 8.0 mm, Root Fillet Radius 8.0 mm, Toe Radius 4.0 mm, Distance 22.5 mm, Sectional Area 11.0 cm2.
